Technical parameters
Raw Material: Q235
Yield Strength: 235Mpa
Thickness: 0.45mm
Coil ID: Ф508±20mm
Coil OD: ≤Ф1200mm
Coil Weight: ≤1T
Main Parameter:
Roll Forming Speed: 10M/minute (excluding Cutting Time)
Tolerance: ±2mm
Power Requirement: 380V±10% 50-60HZ
Components Description and Parameter
Decoiler
Structure:
a)Unpower Decoiler
b)Hydraulically expand mandrel to hold coil.
Parameter:
a)Maximum Capacity: 1T
b)Suitable Coil ID: Ф508±20mm
c)Suitable Coil OD: ≤Ф1200mm
Guiding Device:
Adopting guiding bar and sliding block to control the width and position of the steel sheet. The sheet is guided in the correct position and runs to the roll forming equipment. The width is adjusted by manual rollers

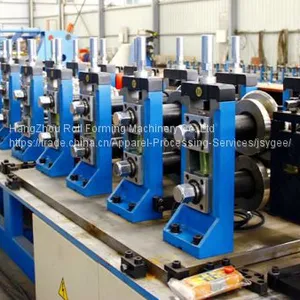

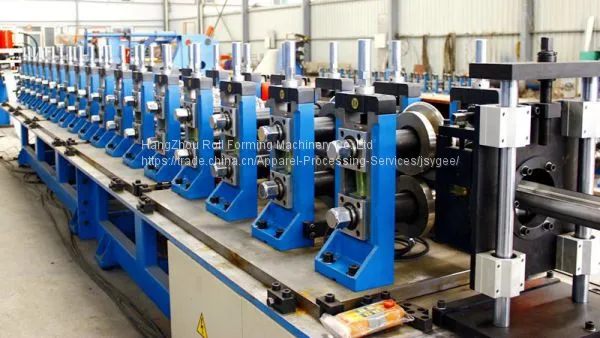

Roll Former:
This is the main device of roll forming machine. It adopt combine roller station style. It is chain transmission, AC motor drives, through frequency to adjust speed. Rollers material is Cr12 steel with heat and surface polish treatment. Rollers are made by CNC machine, so they are high precision and long working life.
Parameter:
Roller Station Quantity: 14 shafts
Shaft Diameter: φ50mm
Roller Material: Cr12
Roller Station Distance: about 300mm
Roll Forming Speed: ~10m/min
Power: 4kw
Cutting Device:
a)Machine will stop when it starts cutting.
b)There is waste after cutting.
c)Blade material is Cr12Mov.
Unpowered Support Table
Support rolls surface with chrome plate treatment. Total length is 3 meters, easily to install and dismantle.
Hydraulic system
It adopts China famous brand components, high stability, easy to use in workshop or fabricating yard.
Electric Control System
Mitsubishi PLC, Operation Language is English, Omron Encoder.

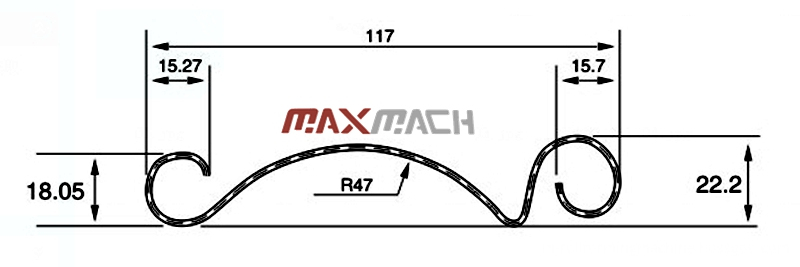

Profile drawing

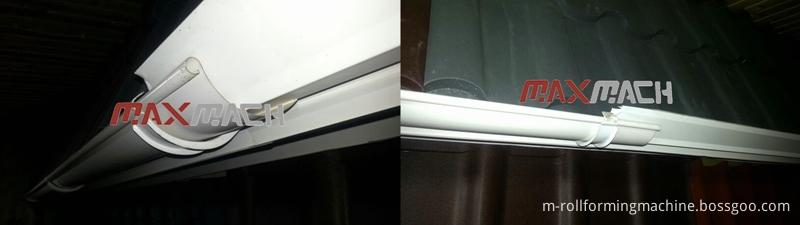

Finished products show
