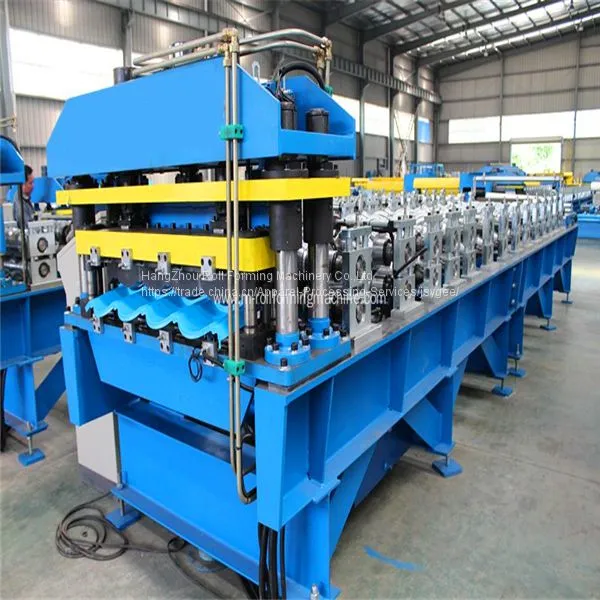

This Colored tile roll forming machinery is the integrity of mechanical, electric and hydraulic, with high function and full automatic and so on. The whole line was composed of decoiler, feeding guide, roll former, protecting cover, punching system, post cutting system, outputting system, electrical control system and hydraulic system and so.
Technical parameters for Colored tile roll forming machinery
| NO. | Item | Parameter | Remark | |
| 1 | Suitable Material | Type | Color steel | |
| Thickness(mm) | 0.4-0.6 | Testing on 0.5mm | ||
| Yield strength(Mpa) | 235-345 | | ||
| Coil width(mm) | 1220 | | ||
| 2 | Forming speed(m/min) | About 5 | Depend on actual design | |
| 3 | Forming main motor power(KW) | 2*3 | Depend on actual design | |
| 4 | Host machine hydraulic station power(KW) | 5.5 | Depend on actual design | |
| 5 | Pre-cutting machine motor(KW) | 0.55 | Depend on actual design | |
| 6 | Decoiler motor (KW) | 2.2 | Depend on actual design | |
| 7 | Decoiler hydraulic station electric motor(KW) | 3 | Depend on actual design | |
| 8 | Total power(KW) | 17.25 | Depend on actual design | |
| 9 | Electrical source | AC415V,50Hz,3Phase | | |
| 10 | Dimensions(L×W×H,m) | 24×3×2 | Depend on actual design | |
Working flow for Colored tile roll forming machinery
Decoiling →Feeding guide→ Roll forming→ Set length shape punching→ Cutting to set length →Outing put final products
Packing and shipping about the Colored tile roll forming machinery
