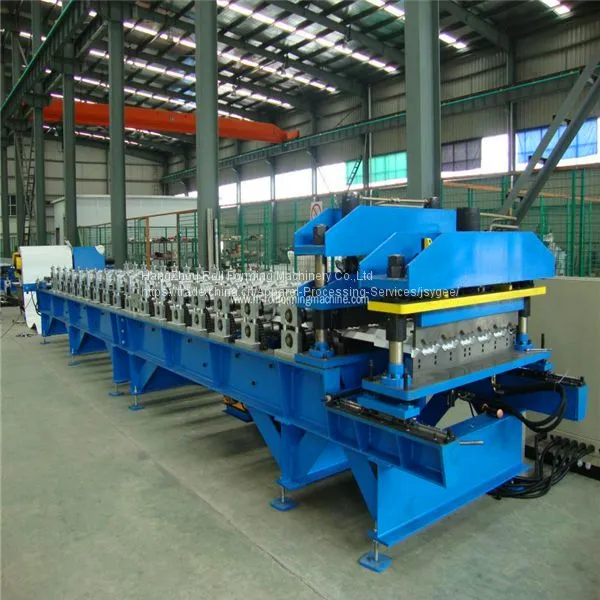

This Automatic glazed steel tile forming machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
Technical Parameters for Automatic glazed steel tile forming machine
| NO | Item | Para | Remark | |
| 1
| Suitable material | Type | Color coating steel sheets |
|
| Thickness (mm) | 0.45-0.55 |
| ||
| Yield Strength (Mpa) | 230-300MPA |
| ||
| Width (mm) | 1250 |
| ||
| Wt of the Coil (t) | 5T |
| ||
| OD | Φ1350mm |
| ||
| ID | φ490-510mm |
| ||
| 2 | Material of rollers | No45 chromeplate |
| |
| 3 | Forming Speed (m/min) | 4-5 | Not including cutting time | |
| 4 | Total power | 12kw | Will be according to actual design | |
| 5 | Dimension (L×W×H, m) | See the layout | Will be according to actual design | |
Working process for Automatic glazed steel tile forming machine
Decoiling→ Feeding→Roll forming →Punching →Cut to length →Output the finished products
Components parts of the Automatic glazed steel tile forming machine
| Name | Model/Name | Quantity | Technical Description |
| 1. Decoiler system | cantilever type hydraulic decoiler | 1set | Cantilever, hydraulic expanding, hydraulic motor actively release the sheet with light control |
| 2.Main forming system | Feeding device | 1set | 1. Roller material:No.45 steel with surface hard chrome painted. 2. Roller inner supporting structure type: guide column 3.Planetary gear reducer motor driving, the back/forward rollers drivenby chain, part of upper/lower rollers driven by gear 4. Cutting blade material Cr12 quenched treatment |
| Roll forming system | 1set | ||
| Punching Die | 1set | ||
| Post-cutting device | 1 set | ||
| 3. Output system | Automatic Stacker | 1set | For supporting the finished panel and stacking together automatically |
| 4. Hydraulic system | 1set | Separated hydraulic station (Provide power to post cutter and punching device) | |
| 5. Electric control system | 1set | PLC Control, encoder automatic cutting in length Operation stage: Touch screen+ button AC frequency for adjusting the speed | |
