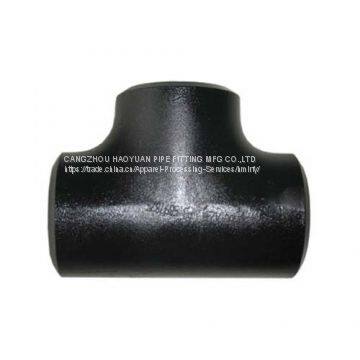

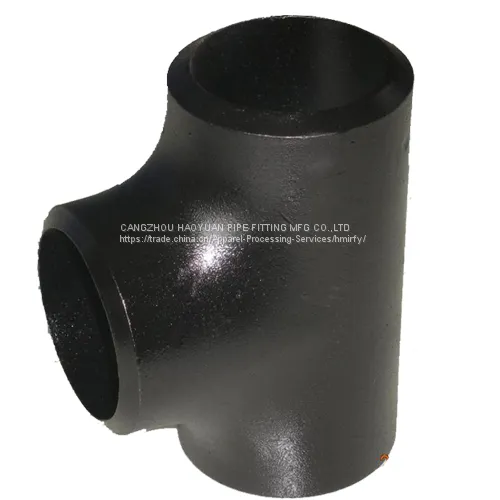

Carbon Steel Equal Tee
You May Like
Product Description
Carbon Steel Equal Tee press forming is greater than the diameter of the tube tee, tee crushed to a diameter of about the size of the site in the stretch to open a branch pipe hole; tube by heating, into the forming die, and in the tube tensile load within manifold die; tube is radially compressed under pressure, the metal flow and form a manifold die under tension to the branch pipes in the radial direction of the compression process. The whole process is a process of compression and tension while forming part of the manifold through the radial tube
Carbon Steel Equal Tee Specifications
| | | |
| Straight Tee | Reducing Tee | Cross |
| Nominal Diameter | Outside Diameter | Center to End | |||||
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15×15×15 | 1/2×1/2×1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15×15×10 | 1/2×1/2×3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15×15×8 | 1/2×1/2×1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20×20×20 | 3/4×3/4×3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20×20×15 | 3/4×3/4×1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20×20×10 | 3/4×3/4×3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
| 25×25×25 | 1×1×1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25×25×20 | 1×1×3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25×25×15 | 1×1×1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32×32×32 | 1.1/4×1.1/4×1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32×32×25 | 1.1/4×1.1/4×1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32×32×20 | 1.1/4×1.1/4×3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
| 32×32×15 | 1.1/4×1.1/4×1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
| 40×40×40 | 1.1/2×1.1/2×1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
| 40×40×32 | 1.1/2×1.1/2×1.1/4 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
| 40×40×25 | 1.1/2×1.1/2×1 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
| 40×40×20 | 1.1/2×1.1/2×3/4 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
| 40×40×15 | 1.1/2×1.1/2×1/2 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
| 50×50×50 | 2×2×2 | 60.3 | 57 | 60.3 | 57 | 64 | 64 |
| 50×50×40 | 2×2×1.1/2 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
| 50×50×32 | 2×2×1.1/4 | 60.3 | 57 | 42.4 | 38 | 64 | 57 |
| 50×50×25 | 2×2×1 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
| 50×50×20 | 2×2×3/4 | 60.3 | 57 | 26.9 | 25 | 64 | 44 |
| 65×65×65 | 2.1/2×2/1/2×2.1/2 | 73.0 | 76 | 73.0 | 76 | 76 | 76 |
| 65×65×50 | 2.1/2×2/1/2×2 | 73.0 | 76 | 60.3 | 57 | 76 | 70 |
| 65×65×40 | 2.1/2×2/1/2×1.1/2 | 73.0 | 76 | 48.3 | 45 | 76 | 67 |
| 65×65×32 | 2.1/2×2/1/2×1.1/4 | 73.0 | 76 | 42.4 | 38 | 76 | 64 |
| 65×65×25 | 2.1/2×2/1/2×1 | 73.0 | 76 | 33.7 | 32 | 76 | 57 |
| 80×80×80 | 3×3×3 | 88.9 | 89 | 88.9 | 89 | 86 | 86 |
| 80×80×65 | 3×3×2.1/2 | 88.9 | 89 | 73.0 | 76 | 86 | 83 |
| 80×80×50 | 3×3×2 | 88.9 | 89 | 60.3 | 57 | 86 | 76 |
| 80×80×40 | 3×3×1.1/2 | 88.9 | 89 | 48.3 | 45 | 86 | 73 |
| 80×80×32 | 3×3×1.1/4 | 88.9 | 89 | 42.4 | 38 | 86 | 70 |
| 90×90×90 | 3.1/2×3.1/2×3.1/2 | 101.6 | - | 101.6 | - | 95 | 95 |
| 90×90×80 | 3.1/2×3.1/2×3 | 101.6 | - | 88.9 | 89 | 95 | 92 |
| 90×90×65 | 3.1/2×3.1/2×2.1/2 | 101.6 | - | 73.0 | 76 | 95 | 89 |
| 90×90×50 | 3.1/2×3.1/2×2 | 101.6 | - | 60.3 | 57 | 95 | 83 |
| 90×90×40 | 3.1/2×3.1/2×1.1/2 | 101.6 | - | 48.3 | 45 | 95 | 79 |
| 100×100×100 | 4×4×4 | 114.3 | 108 | 114.3 | 108 | 105 | 105 |
| 100×100×90 | 4×4×3.1/2 | 114.3 | 108 | 101.6 | - | 105 | 102 |
| 100×100×80 | 4×4×3 | 114.3 | 108 | 88.9 | 89 | 105 | 98 |
| 100×100×65 | 4×4×2.1/2 | 114.3 | 108 | 73.0 | 76 | 105 | 95 |
| 100×100×50 | 4×4×2 | 114.3 | 108 | 60.3 | 57 | 105 | 89 |
| 100×100×40 | 4×4×1.1/2 | 114.3 | 108 | 48.3 | 45 | 105 | 86 |
| 125×125×125 | 5×5×5 | 141.3 | 133 | 141.3 | 133 | 124 | 124 |
| 125×125×100 | 5×5×4 | 141.3 | 133 | 114.3 | 108 | 124 | 117 |
| 125×125×90 | 5×5×3.1/2 | 141.3 | - | 101.6 | - | 124 | 114 |
| 125×125×80 | 5×5×3 | 141.3 | 133 | 88.9 | 89 | 124 | 111 |
| 125×125×65 | 5×5×2.1.2 | 141.3 | 133 | 73.0 | 76 | 124 | 108 |
| 125×125×50 | 5×5×2 | 141.3 | 133 | 60.3 | 57 | 124 | 105 |
| 150×150×150 | 6×6×6 | 168.3 | 159 | 168.3 | 159 | 143 | 143 |
| 150×150×125 | 6×6×5 | 168.3 | 159 | 141.3 | 133 | 143 | 137 |
| 150×150×100 | 6×6×4 | 168.3 | 159 | 114.3 | 108 | 143 | 130 |
| 150×150×90 | 6×6×3.1/2 | 1, 68.3 | - | 101.6 | - | 143 | 127 |
| 150×150×80 | 6×6×3 | 168.3 | 159 | 88.9 | 89 | 143 | 124 |
| 150×150×65 | 6×6×2.1/2 | 168.3 | 159 | 73.0 | 76 | 143 | 121 |
| 200×200×200 | 8×8×8 | 219.1 | 219 | 219.1 | 219 | 178 | 178 |
| 200×200×150 | 8×8×6 | 219.1 | 219 | 168.3 | 159 | 178 | 168 |
| 200×200×125 | 8×8×5 | 219.1 | 219 | 141.4 | 133 | 178 | 162 |
| 200×200×100 | 8×8×4 | 219.1 | 219 | 114.3 | 108 | 178 | 156 |
| 200×200×90 | 8×8×3.1/2 | 219.1 | - | 101.6 | - | 178 | 152 |
| 250×250×250 | 10×10×10 | 273.0 | 273 | 273.0 | 273 | 216 | 216 |
| 250×250×200 | 10×10×8 | 273.0 | 273 | 219.1 | 219 | 216 | 203 |
| 250×250×150 | 10×10×6 | 273.0 | 273 | 168.3 | 159 | 216 | 194 |
| 250×250×125 | 10×10×5 | 273.0 | 273 | 141.3 | 133 | 216 | 191 |
| 250×250×100 | 10×10×4 | 273.0 | 273 | 114.3 | 108 | 216 | 184 |
| 300×300×300 | 12×12×12 | 323.9 | 325 | 323.9 | 325 | 254 | 254 |
| 300×300×250 | 12×12×10 | 323.9 | 325 | 273.0 | 273 | 254 | 241 |
| 300×300×200 | 12×12×8 | 323.9 | 325 | 219.1 | 219 | 254 | 229 |
| 300×300×150 | 12×12×6 | 323.9 | 325 | 168.3 | 159 | 254 | 219 |
| 300×300×125 | 12×12×5 | 323.9 | 325 | 141.3 | 133 | 254 | 216 |
| 350×350×350 | 14×14×14 | 355.6 | 377 | 355.6 | 377 | 279 | 279 |
| 350×350×300 | 14×14×12 | 355.6 | 377 | 323.9 | 325 | 279 | 270 |
| 350×350×250 | 14×14×10 | 355.6 | 377 | 273.0 | 273 | 279 | 257 |
| 350×350×200 | 14×14×8 | 355.6 | 377 | 219.1 | 219 | 279 | 248 |
| 350×350×150 | 14×14×6 | 355.6 | 377 | 168.3 | 159 | 279 | 238 |
| 400×400×400 | 16×16×16 | 406.4 | 426 | 406.4 | 426 | 305 | 305 |
| 400×400×350 | 16×16×14 | 406.4 | 426 | 355.6 | 377 | 305 | 305 |
| 400×400×300 | 16×16×12 | 406.4 | 426 | 323.9 | 325 | 305 | 295 |
| 400×400×250 | 16×16×10 | 406.4 | 426 | 273.0 | 273 | 305 | 283 |
| 400×400×200 | 16×16×8 | 406.4 | 426 | 219.1 | 219 | 305 | 273 |
| 400×400×150 | 16×16×6 | 406.4 | 426 | 168.3 | 159 | 305 | 264 |
| 450×450×450 | 18×18×18 | 457 | 480 | 457 | 480 | 343 | 343 |
| 450×450×400 | 18×18×16 | 457 | 480 | 406.4 | 426 | 343 | 330 |
| 450×450×350 | 18×18×14 | 457 | 480 | 355.6 | 377 | 343 | 330 |
| 450×450×300 | 18×18×12 | 457 | 480 | 323.9 | 325 | 343 | 321 |
| 450×450×250 | 18×18×10 | 457 | 480 | 273.0 | 273 | 343 | 308 |
| 450×450×200 | 18×18×8 | 457 | 480 | 219.1 | 219 | 343 | 298 |
| 500×500×500 | 20×20×20 | 508 | 530 | 508 | 530 | 381 | 381 |
| 500×500×450 | 20×20×20 | 508 | 530 | 457 | 480 | 381 | 368 |
| 500×500×400 | 20×20×20 | 508 | 530 | 406.4 | 426 | 381 | 356 |
| 500×500×350 | 20×20×20 | 508 | 530 | 355.6 | 377 | 381 | 356 |
| 500×500×300 | 20×20×20 | 508 | 530 | 323.9 | 325 | 381 | 346 |
| 500×500×250 | 20×20×20 | 508 | 530 | 273.0 | 273 | 381 | 333 |
| 500×500×200 | 20×20×20 | 508 | 530 | 219.1 | 219 | 381 | 324 |
| 550×550×550 | 22×22×22 | 559 | - | 559 | - | 419 | 419 |
| 550×550×500 | 22×22×20 | 559 | - | 508 | - | 419 | 406 |
| 550×550×450 | 22×22×18 | 559 | - | 457 | - | 419 | 394 |
| 550×550×400 | 22×22×16 | 559 | - | 406.4 | - | 419 | 381 |
| 550×550×350 | 22×22×14 | 559 | - | 355.6 | - | 419 | 381 |
| 550×550×300 | 22×22×12 | 559 | - | 323.9 | - | 419 | 371 |
| 550×550×250 | 22×22×10 | 559 | - | 273.0 | - | 419 | 359 |
| 600×600×600 | 24×24×24 | 610 | 630 | 610 | 630 | 432 | 432 |
| 600×600×550 | 24×24×22 | 610 | - | 559 | - | 432 | 432 |
| 600×600×500 | 24×24×20 | 610 | 630 | 508 | 530 | 432 | 432 |
| 600×600×450 | 24×24×18 | 610 | 630 | 457 | 480 | 432 | 419 |
| 600×600×400 | 24×24×16 | 610 | 630 | 406.4 | 426 | 432 | 406 |
| 600×600×350 | 24×24×14 | 610 | 630 | 355.6 | 377 | 432 | 406 |
| 600×600×300 | 24×24×12 | 610 | 630 | 323.9 | 325 | 432 | 397 |
| 600×600×250 | 24×24×10 | 610 | 630 | 273.0 | 273 | 432 | 384 |
| 650×650×650 | 26×26×26 | 660 | - | 660 | - | 495 | 495 |
| 650×650×600 | 26×26×24 | 660 | - | 610 | - | 495 | 483 |
| 650×650×550 | 26×26×22 | 660 | - | 559 | - | 495 | 470 |
| 650×650×500 | 26×26×20 | 660 | - | 508 | - | 495 | 457 |
| 650×650×450 | 26×26×18 | 660 | - | 457 | - | 495 | 444 |
| 650×650×400 | 26×26×16 | 660 | - | 406.4 | - | 495 | 432 |
| 650×650×350 | 26×26×14 | 660 | - | 355.6 | - | 495 | 432 |
| 650×650×300 | 26×26×12 | 660 | - | 323.9 | - | 495 | 422 |
| 700×700×700 | 28×28×28 | 711 | 720 | 711 | 720 | 521 | 521 |
| 700×700×650 | 28×28×26 | 711 | - | 660 | - | 521 | 521 |
| 700×700×600 | 28×28×24 | 711 | 720 | 610 | 630 | 521 | 508 |
| 700×700×550 | 28×28×22 | 711 | - | 559 | - | 521 | 495 |
| 700×700×500 | 28×28×20 | 711 | 720 | 508 | 529 | 521 | 483 |
| 700×700×450 | 28×28×18 | 711 | 720 | 457 | 478 | 521 | 470 |
| 700×700×400 | 28×28×16 | 711 | 720 | 406.4 | 426 | 521 | 457 |
| 700×700×350 | 28×28×14 | 711 | 720 | 355.6 | 377 | 521 | 457 |
| 700×700×300 | 28×28×12 | 711 | 720 | 323.9 | 325 | 521 | 448 |
| 750×750×750 | 30×30×30 | 762 | - | 762 | - | 559 | 559 |
| 750×750×700 | 30×30×28 | 762 | - | 711 | - | 559 | 546 |
| 750×750×650 | 30×30×26 | 762 | - | 660 | - | 559 | 546 |
| 750×750×600 | 30×30×24 | 762 | - | 610 | - | 559 | 533 |
| 750×750×550 | 30×30×22 | 762 | - | 559 | - | 559 | 521 |
| 750×750×500 | 30×30×20 | 762 | - | 508 | - | 559 | 508 |
| 750×750×450 | 30×30×18 | 762 | - | 457 | - | 559 | 495 |
| 750×750×400 | 30×30×16 | 762 | - | 406.4 | - | 559 | 483 |
| 750×750×350 | 30×30×14 | 762 | - | 355.6 | - | 559 | 483 |
| 750×750×300 | 30×30×12 | 762 | - | 323.9 | - | 559 | 473 |
| 750×750×250 | 30×30×10 | 762 | - | 273.0 | - | 559 | 460 |
| 800×800×800 | 32×32×32 | 813 | 820 | 813 | 820 | 597 | 597 |
| 800×800×750 | 32×32×30 | 813 | - | 762 | - | 597 | 584 |
| 800×800×700 | 32×32×28 | 813 | 820 | 711 | 720 | 597 | 572 |
| 800×800×650 | 32×32×26 | 813 | - | 660 | - | 597 | 572 |
| 800×800×600 | 32×32×24 | 813 | 820 | 610 | 630 | 597 | 559 |
| 800×800×550 | 32×32×22 | 813 | - | 559 | - | 597 | 546 |
| 800×800×500 | 32×32×20 | 813 | 820 | 508 | 529 | 597 | 533 |
| 800×800×450 | 32×32×18 | 813 | 820 | 457 | 478 | 597 | 521 |
| 800×800×400 | 32×32×16 | 813 | 820 | 406.4 | 426 | 597 | 508 |
| 800×800×350 | 32×32×14 | 813 | 820 | 355.6 | 377 | 597 | 508 |
| 850×850×850 | 34×34×34 | 864 | - | 864 | - | 635 | 635 |
| 850×850×800 | 34×34×32 | 864 | - | 813 | - | 635 | 622 |
| 850×850×750 | 34×34×30 | 864 | - | 762 | - | 635 | 610 |
| 850×850×700 | 34×34×28 | 864 | - | 711 | - | 635 | 597 |
| 850×850×650 | 34×34×26 | 864 | - | 660 | - | 635 | 597 |
| 850×850×600 | 34×34×24 | 864 | - | 610 | - | 635 | 584 |
| 850×850×550 | 34×34×22 | 864 | - | 559 | - | 635 | 572 |
| 850×850×500 | 34×34×20 | 864 | - | 508 | - | 635 | 559 |
| 850×850×450 | 34×34×18 | 864 | - | 457 | - | 635 | 546 |
| 850×850×400 | 34×34×16 | 864 | - | 406.4 | - | 635 | 533 |
| 900×900×900 | 36×36×36 | 914 | 920 | 914 | 920 | 673 | 673 |
| 900×900×850 | 36×36×34 | 914 | - | 864 | - | 673 | 660 |
| 900×900×800 | 36×36×32 | 914 | 920 | 813 | 820 | 673 | 648 |
| 900×900×750 | 36×36×30 | 914 | - | 762 | - | 673 | 635 |
| 900×900×700 | 36×36×28 | 914 | 920 | 711 | 720 | 673 | 622 |
| 900×900×650 | 36×36×26 | 914 | - | 660 | - | 673 | 622 |
| 900×900×600 | 36×36×24 | 914 | - | 610 | - | 673 | 610 |
| 900×900×550 | 36×36×22 | 914 | - | 559 | - | 673 | 597 |
| 900×900×500 | 36×36×20 | 914 | 920 | 508 | 529 | 673 | 584 |
| 900×900×450 | 36×36×18 | 914 | 920 | 457 | 478 | 673 | 572 |
| 900×900×400 | 36×36×16 | 914 | 920 | 406.4 | 426 | 673 | 559 |

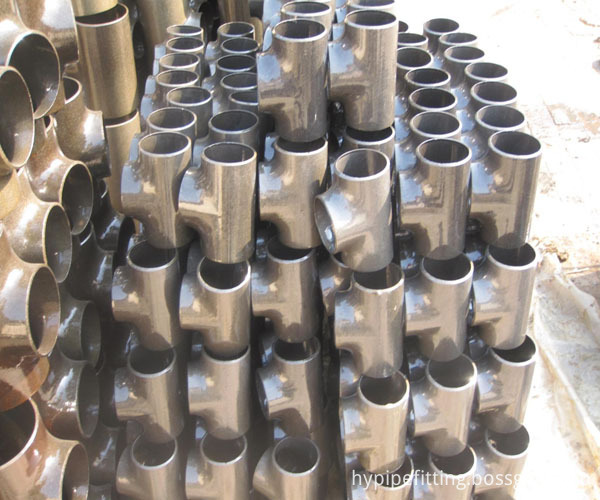

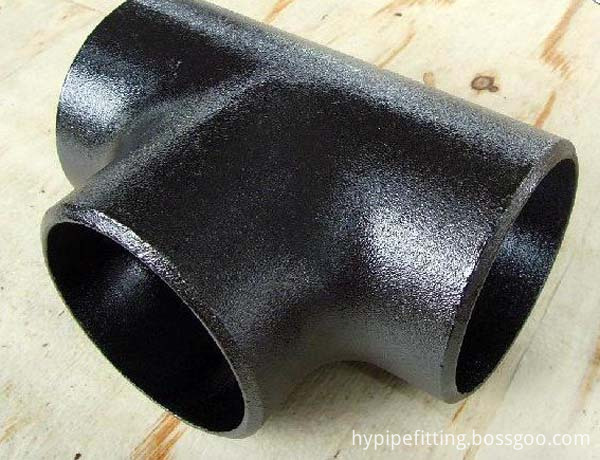

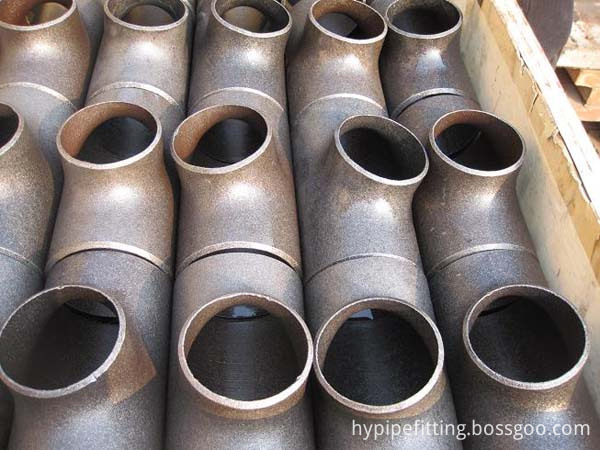

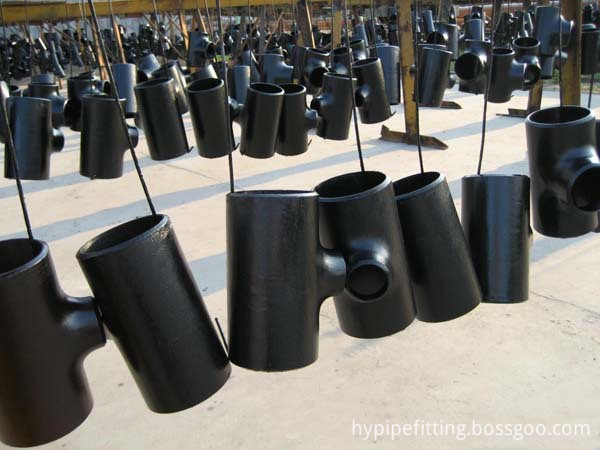

High-quality products
Tee used for the piping system connection. Also known as pipe tee , straight tee or tee fitting,steel tees, a branch in the the main pipe.There are T-shaped and Y-shaped, equal tee and reducing tee, collect three branch pipe to the main pipe. The main role of the tee is to change the direction of flow.

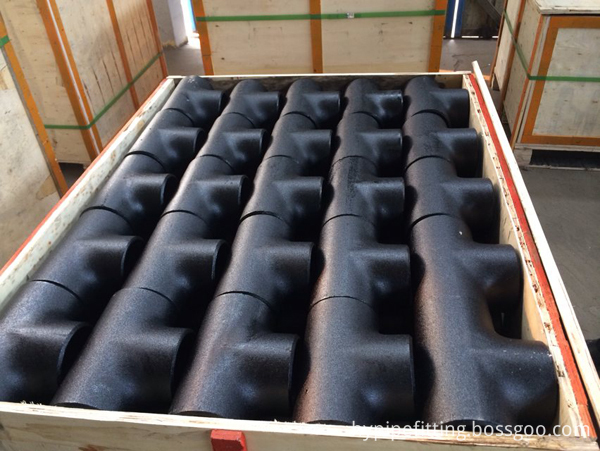

Our packaging
Production Process

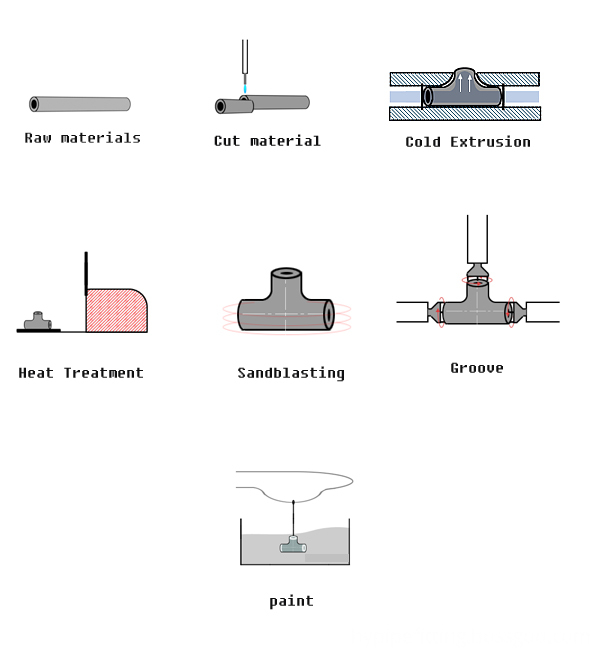

Cold Extrusion tee production process

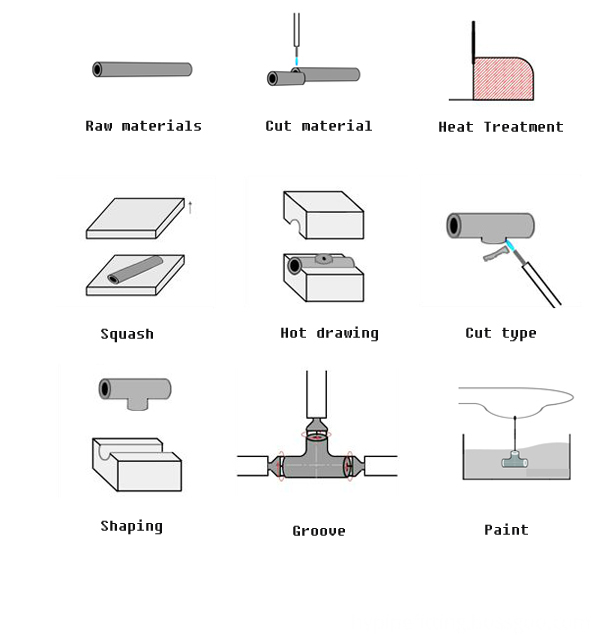

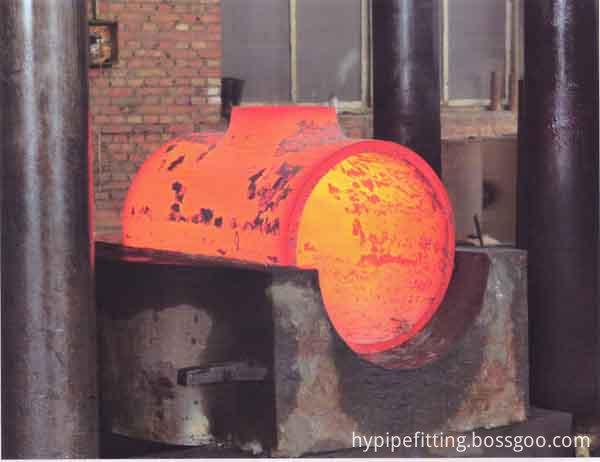

Hot drawing tee production process

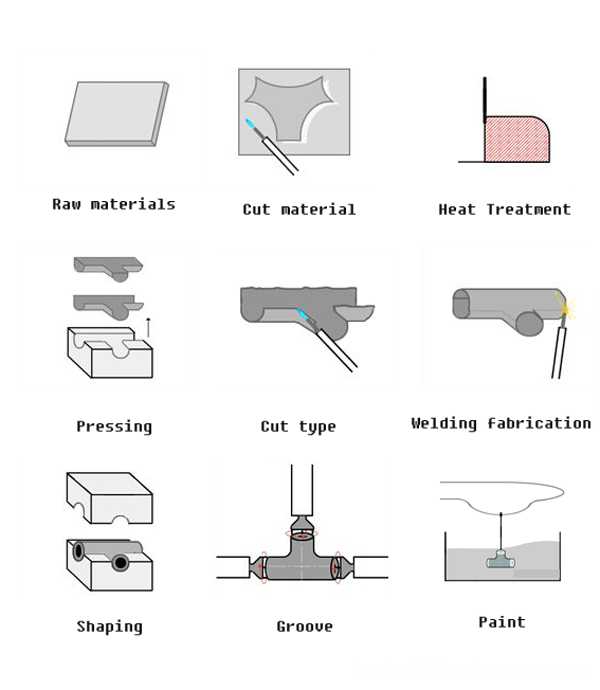

Butt tee production process

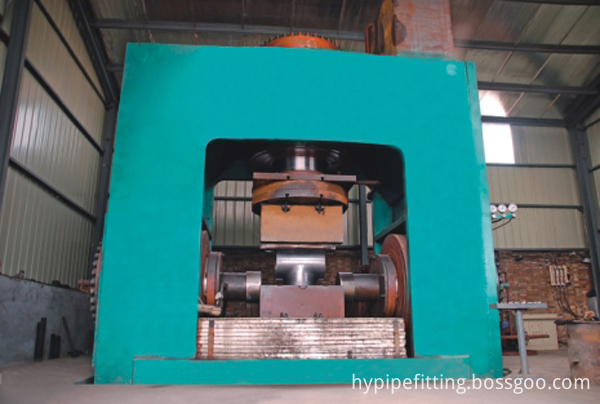

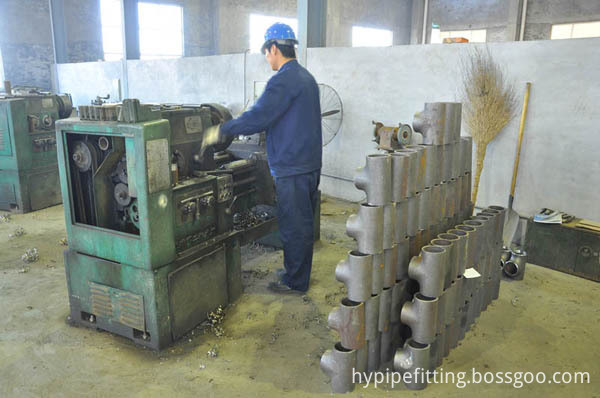

Tee workshop
Production Process
Contact Us
- Cangzhou Haoyuan Pipe Fitting Mfg Co.,ltd
- Contact nameYIN Chat Now
Product Categories
New Products
-
Square And Rectangular Steel Pipe
-
Schedule 40 90 Degrees Long Radius Seamless Elbow
-
316L Seamless Welding Elbow
-
ASME B16.9 SCH40 Short Radius Elbow
-
316L 90 Degree Stainless Steel Elbow
-
EN10253 Long Radius 90 Degrees Seamless Elbow
-
EN10253-1 S235 90 Degree Elbow Pipe Fitting
-
A234 WPB 3 Inches Schedule 40 90 Degree Elbow
-
6 Inch 90 Degree Elbow
-
Schedule 80 Short Radius 90 Degree Elbow
-
ANSI B16.9 Long Radius 90 Degree Butt Welding Elbow
-
WPL6 90 Degree Long Radius Elbow
Popular Searches
- pipe fitting
- pipe flange
- stainless steel tubing
- equal tee
- steel fitting
- reducer tee
- reducing tee
- stainless steel tee
- pipe tee
- carbon steel cap
- steel pipe tee
- pipe fitting equal tee
- straight tee
- seamless tee
- carbon steel reducing tee
- cs tee
- black steel tee
- butt weld tee
- welded tee
- seamless pipe bend
- unequal tee
- carbon steel bw elbow
- hdpe pipe
- aluminium casting
- equal tee
- steel fitting
- carbon steel tee
- pipe fitting tee
- reducer tee
- reducing tee
Recommended Products
- Koyo Catalogue Deep Groove Ball Bearing 6001 6201 6301 6401
- NSK NTN KOYO Precision High Speed 6206 6207 6208 6210 ZZ C3 Bicycle Motor Deep Groove Ball Bearing 6201 6202 6203 6204 6
- LFR5201-12 KDD NPP R5201-12 ZZ 2RS U Type Groove Track Roller Guide Pulley Bearing
- INQO Brand Galvanized Elbow M.&F. Pipe Fittings
- GOST17379 Steel Butt Welding Cap
- A234 WPB 8 Inches 45 Degree Elbow
- Seamless Carbon Steel Elbow 90°
- NPT Galvanized Beaded Tee M.I. Pipe Fittings
- British Standard Malleable Iron Pipe Fittings
- Hot Dipped Galvanized Malleable Iron Pipe Fittings
- Rubber Bellows Expansion Joint
- Galvanized Iron Pipe Fittings
Find Similar Products By Category
- Auto, Motorcycle Parts & Accessories > Motorcycle Parts & Accessories
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
YIN
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile






Carbon Steel Reducing Tee
Stainless Steel Tee
Carbon Seamless Steel Reducers
Carbon Steel Eccentric Reducers
ASME Welding Neck Flange
API 5L GRb Lsaw Steel Pipe











Square And Rectangular Steel Pipe
Schedule 40 90 Degrees Long Radius Seamless Elbow
316L Seamless Welding Elbow
ASME B16.9 SCH40 Short Radius Elbow
316L 90 Degree Stainless Steel Elbow
EN10253 Long Radius 90 Degrees Seamless Elbow
EN10253-1 S235 90 Degree Elbow Pipe Fitting
A234 WPB 3 Inches Schedule 40 90 Degree Elbow
6 Inch 90 Degree Elbow
ANSI B16.9 Long Radius 90 Degree Butt Welding Elbow
WPL6 90 Degree Long Radius Elbow
EN10253 S235 Long Radius 45 Degrees Elbow
A234 WPB 6Inch SCH XXS Reducing Tee
GOST17376 Carbon Steel Seamless Reducing Tee
DIN2615 Carbon Steel Reducing Tee
4 To 3 Concentric Reducers
GOST 17378 Concentric Reducing Pipe Fittings
A234 WPB Carbon Steel Eccentric Reducers
ANSI B16.9 STD Seamless Eccentric Reducers
Steel Tube End Welding Cap
Schedule 40 Steel Pipe Cap
ANSI B16.5 Slip On Weld Flange Class 150
A105 Welded Steel Flanges
