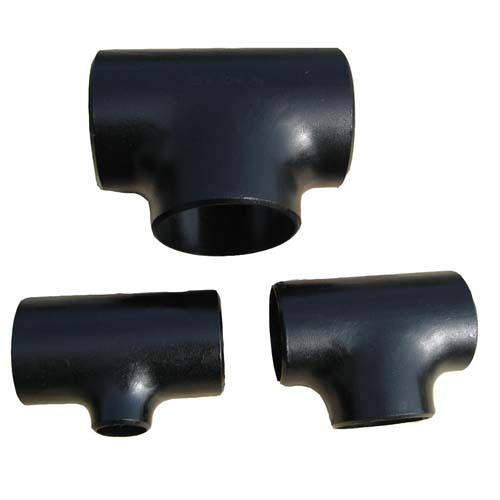

Carbon steel reducing tee
- 0 per Month
Product Description
Carbon steel reducing tee hydroforming is compensated by the axial expansion of the metal material of a branch pipe forming process. The process is the use of special hydraulic machine, the injection of the liquid and the inner diameter equal to the three-way tube, side cylinder synchronous movement of the extruded tube by two horizontal hydraulic presses, tube after extrusion by the smaller size, the inner tube the volume of liquid with the smaller tube and pressure rise, when the pressure reaches a tee branch pipe expansion needs, the metal material in the dual role of the cylinder and the inner tube side fluid pressure and flow along the mold cavity bulge out manifold
Carbon steel reducing tee Specifications
|
|
|
Straight Tee | Reducing Tee | Cross |
Nominal Diameter | Outside Diameter | Center to End | |||||
D1 | D2 | ||||||
DN | NPS | Series A | Series B | Series A | Series B | C | M |
15×15×15 | 1/2×1/2×1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
15×15×10 | 1/2×1/2×3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
15×15×8 | 1/2×1/2×1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
20×20×20 | 3/4×3/4×3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
20×20×15 | 3/4×3/4×1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
20×20×10 | 3/4×3/4×3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
25×25×25 | 1×1×1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
25×25×20 | 1×1×3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
25×25×15 | 1×1×1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
32×32×32 | 1.1/4×1.1/4×1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
32×32×25 | 1.1/4×1.1/4×1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
32×32×20 | 1.1/4×1.1/4×3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
32×32×15 | 1.1/4×1.1/4×1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
40×40×40 | 1.1/2×1.1/2×1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
40×40×32 | 1.1/2×1.1/2×1.1/4 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
40×40×25 | 1.1/2×1.1/2×1 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
40×40×20 | 1.1/2×1.1/2×3/4 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
40×40×15 | 1.1/2×1.1/2×1/2 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
50×50×50 | 2×2×2 | 60.3 | 57 | 60.3 | 57 | 64 | 64 |
50×50×40 | 2×2×1.1/2 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
50×50×32 | 2×2×1.1/4 | 60.3 | 57 | 42.4 | 38 | 64 | 57 |
50×50×25 | 2×2×1 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
50×50×20 | 2×2×3/4 | 60.3 | 57 | 26.9 | 25 | 64 | 44 |
65×65×65 | 2.1/2×2/1/2×2.1/2 | 73.0 | 76 | 73.0 | 76 | 76 | 76 |
65×65×50 | 2.1/2×2/1/2×2 | 73.0 | 76 | 60.3 | 57 | 76 | 70 |
65×65×40 | 2.1/2×2/1/2×1.1/2 | 73.0 | 76 | 48.3 | 45 | 76 | 67 |
65×65×32 | 2.1/2×2/1/2×1.1/4 | 73.0 | 76 | 42.4 | 38 | 76 | 64 |
65×65×25 | 2.1/2×2/1/2×1 | 73.0 | 76 | 33.7 | 32 | 76 | 57 |
80×80×80 | 3×3×3 | 88.9 | 89 | 88.9 | 89 | 86 | 86 |
80×80×65 | 3×3×2.1/2 | 88.9 | 89 | 73.0 | 76 | 86 | 83 |
80×80×50 | 3×3×2 | 88.9 | 89 | 60.3 | 57 | 86 | 76 |
80×80×40 | 3×3×1.1/2 | 88.9 | 89 | 48.3 | 45 | 86 | 73 |
80×80×32 | 3×3×1.1/4 | 88.9 | 89 | 42.4 | 38 | 86 | 70 |
90×90×90 | 3.1/2×3.1/2×3.1/2 | 101.6 | - | 101.6 | - | 95 | 95 |
90×90×80 | 3.1/2×3.1/2×3 | 101.6 | - | 88.9 | 89 | 95 | 92 |
90×90×65 | 3.1/2×3.1/2×2.1/2 | 101.6 | - | 73.0 | 76 | 95 | 89 |
90×90×50 | 3.1/2×3.1/2×2 | 101.6 | - | 60.3 | 57 | 95 | 83 |
90×90×40 | 3.1/2×3.1/2×1.1/2 | 101.6 | - | 48.3 | 45 | 95 | 79 |
100×100×100 | 4×4×4 | 114.3 | 108 | 114.3 | 108 | 105 | 105 |
100×100×90 | 4×4×3.1/2 | 114.3 | 108 | 101.6 | - | 105 | 102 |
100×100×80 | 4×4×3 | 114.3 | 108 | 88.9 | 89 | 105 | 98 |
100×100×65 | 4×4×2.1/2 | 114.3 | 108 | 73.0 | 76 | 105 | 95 |
100×100×50 | 4×4×2 | 114.3 | 108 | 60.3 | 57 | 105 | 89 |
100×100×40 | 4×4×1.1/2 | 114.3 | 108 | 48.3 | 45 | 105 | 86 |
125×125×125 | 5×5×5 | 141.3 | 133 | 141.3 | 133 | 124 | 124 |
125×125×100 | 5×5×4 | 141.3 | 133 | 114.3 | 108 | 124 | 117 |
125×125×90 | 5×5×3.1/2 | 141.3 | - | 101.6 | - | 124 | 114 |
125×125×80 | 5×5×3 | 141.3 | 133 | 88.9 | 89 | 124 | 111 |
125×125×65 | 5×5×2.1.2 | 141.3 | 133 | 73.0 | 76 | 124 | 108 |
125×125×50 | 5×5×2 | 141.3 | 133 | 60.3 | 57 | 124 | 105 |
150×150×150 | 6×6×6 | 168.3 | 159 | 168.3 | 159 | 143 | 143 |
150×150×125 | 6×6×5 | 168.3 | 159 | 141.3 | 133 | 143 | 137 |
150×150×100 | 6×6×4 | 168.3 | 159 | 114.3 | 108 | 143 | 130 |
150×150×90 | 6×6×3.1/2 | 1, 68.3 | - | 101.6 | - | 143 | 127 |
150×150×80 | 6×6×3 | 168.3 | 159 | 88.9 | 89 | 143 | 124 |
150×150×65 | 6×6×2.1/2 | 168.3 | 159 | 73.0 | 76 | 143 | 121 |
200×200×200 | 8×8×8 | 219.1 | 219 | 219.1 | 219 | 178 | 178 |
200×200×150 | 8×8×6 | 219.1 | 219 | 168.3 | 159 | 178 | 168 |
200×200×125 | 8×8×5 | 219.1 | 219 | 141.4 | 133 | 178 | 162 |
200×200×100 | 8×8×4 | 219.1 | 219 | 114.3 | 108 | 178 | 156 |
200×200×90 | 8×8×3.1/2 | 219.1 | - | 101.6 | - | 178 | 152 |
250×250×250 | 10×10×10 | 273.0 | 273 | 273.0 | 273 | 216 | 216 |
250×250×200 | 10×10×8 | 273.0 | 273 | 219.1 | 219 | 216 | 203 |
250×250×150 | 10×10×6 | 273.0 | 273 | 168.3 | 159 | 216 | 194 |
250×250×125 | 10×10×5 | 273.0 | 273 | 141.3 | 133 | 216 | 191 |
250×250×100 | 10×10×4 | 273.0 | 273 | 114.3 | 108 | 216 | 184 |
300×300×300 | 12×12×12 | 323.9 | 325 | 323.9 | 325 | 254 | 254 |
300×300×250 | 12×12×10 | 323.9 | 325 | 273.0 | 273 | 254 | 241 |
300×300×200 | 12×12×8 | 323.9 | 325 | 219.1 | 219 | 254 | 229 |
300×300×150 | 12×12×6 | 323.9 | 325 | 168.3 | 159 | 254 | 219 |
300×300×125 | 12×12×5 | 323.9 | 325 | 141.3 | 133 | 254 | 216 |
350×350×350 | 14×14×14 | 355.6 | 377 | 355.6 | 377 | 279 | 279 |
350×350×300 | 14×14×12 | 355.6 | 377 | 323.9 | 325 | 279 | 270 |
350×350×250 | 14×14×10 | 355.6 | 377 | 273.0 | 273 | 279 | 257 |
350×350×200 | 14×14×8 | 355.6 | 377 | 219.1 | 219 | 279 | 248 |
350×350×150 | 14×14×6 | 355.6 | 377 | 168.3 | 159 | 279 | 238 |
400×400×400 | 16×16×16 | 406.4 | 426 | 406.4 | 426 | 305 | 305 |
400×400×350 | 16×16×14 | 406.4 | 426 | 355.6 | 377 | 305 | 305 |
400×400×300 | 16×16×12 | 406.4 | 426 | 323.9 | 325 | 305 | 295 |
400×400×250 | 16×16×10 | 406.4 | 426 | 273.0 | 273 | 305 | 283 |
400×400×200 | 16×16×8 | 406.4 | 426 | 219.1 | 219 | 305 | 273 |
400×400×150 | 16×16×6 | 406.4 | 426 | 168.3 | 159 | 305 | 264 |
450×450×450 | 18×18×18 | 457 | 480 | 457 | 480 | 343 | 343 |
450×450×400 | 18×18×16 | 457 | 480 | 406.4 | 426 | 343 | 330 |
450×450×350 | 18×18×14 | 457 | 480 | 355.6 | 377 | 343 | 330 |
450×450×300 | 18×18×12 | 457 | 480 | 323.9 | 325 | 343 | 321 |
450×450×250 | 18×18×10 | 457 | 480 | 273.0 | 273 | 343 | 308 |
450×450×200 | 18×18×8 | 457 | 480 | 219.1 | 219 | 343 | 298 |
500×500×500 | 20×20×20 | 508 | 530 | 508 | 530 | 381 | 381 |
500×500×450 | 20×20×20 | 508 | 530 | 457 | 480 | 381 | 368 |
500×500×400 | 20×20×20 | 508 | 530 | 406.4 | 426 | 381 | 356 |
500×500×350 | 20×20×20 | 508 | 530 | 355.6 | 377 | 381 | 356 |
500×500×300 | 20×20×20 | 508 | 530 | 323.9 | 325 | 381 | 346 |
500×500×250 | 20×20×20 | 508 | 530 | 273.0 | 273 | 381 | 333 |
500×500×200 | 20×20×20 | 508 | 530 | 219.1 | 219 | 381 | 324 |
550×550×550 | 22×22×22 | 559 | - | 559 | - | 419 | 419 |
550×550×500 | 22×22×20 | 559 | - | 508 | - | 419 | 406 |
550×550×450 | 22×22×18 | 559 | - | 457 | - | 419 | 394 |
550×550×400 | 22×22×16 | 559 | - | 406.4 | - | 419 | 381 |
550×550×350 | 22×22×14 | 559 | - | 355.6 | - | 419 | 381 |
550×550×300 | 22×22×12 | 559 | - | 323.9 | - | 419 | 371 |
550×550×250 | 22×22×10 | 559 | - | 273.0 | - | 419 | 359 |
600×600×600 | 24×24×24 | 610 | 630 | 610 | 630 | 432 | 432 |
600×600×550 | 24×24×22 | 610 | - | 559 | - | 432 | 432 |
600×600×500 | 24×24×20 | 610 | 630 | 508 | 530 | 432 | 432 |
600×600×450 | 24×24×18 | 610 | 630 | 457 | 480 | 432 | 419 |
600×600×400 | 24×24×16 | 610 | 630 | 406.4 | 426 | 432 | 406 |
600×600×350 | 24×24×14 | 610 | 630 | 355.6 | 377 | 432 | 406 |
600×600×300 | 24×24×12 | 610 | 630 | 323.9 | 325 | 432 | 397 |
600×600×250 | 24×24×10 | 610 | 630 | 273.0 | 273 | 432 | 384 |
650×650×650 | 26×26×26 | 660 | - | 660 | - | 495 | 495 |
650×650×600 | 26×26×24 | 660 | - | 610 | - | 495 | 483 |
650×650×550 | 26×26×22 | 660 | - | 559 | - | 495 | 470 |
650×650×500 | 26×26×20 | 660 | - | 508 | - | 495 | 457 |
650×650×450 | 26×26×18 | 660 | - | 457 | - | 495 | 444 |
650×650×400 | 26×26×16 | 660 | - | 406.4 | - | 495 | 432 |
650×650×350 | 26×26×14 | 660 | - | 355.6 | - | 495 | 432 |
650×650×300 | 26×26×12 | 660 | - | 323.9 | - | 495 | 422 |
700×700×700 | 28×28×28 | 711 | 720 | 711 | 720 | 521 | 521 |
700×700×650 | 28×28×26 | 711 | - | 660 | - | 521 | 521 |
700×700×600 | 28×28×24 | 711 | 720 | 610 | 630 | 521 | 508 |
700×700×550 | 28×28×22 | 711 | - | 559 | - | 521 | 495 |
700×700×500 | 28×28×20 | 711 | 720 | 508 | 529 | 521 | 483 |
700×700×450 | 28×28×18 | 711 | 720 | 457 | 478 | 521 | 470 |
700×700×400 | 28×28×16 | 711 | 720 | 406.4 | 426 | 521 | 457 |
700×700×350 | 28×28×14 | 711 | 720 | 355.6 | 377 | 521 | 457 |
700×700×300 | 28×28×12 | 711 | 720 | 323.9 | 325 | 521 | 448 |
750×750×750 | 30×30×30 | 762 | - | 762 | - | 559 | 559 |
750×750×700 | 30×30×28 | 762 | - | 711 | - | 559 | 546 |
750×750×650 | 30×30×26 | 762 | - | 660 | - | 559 | 546 |
750×750×600 | 30×30×24 | 762 | - | 610 | - | 559 | 533 |
750×750×550 | 30×30×22 | 762 | - | 559 | - | 559 | 521 |
750×750×500 | 30×30×20 | 762 | - | 508 | - | 559 | 508 |
750×750×450 | 30×30×18 | 762 | - | 457 | - | 559 | 495 |
750×750×400 | 30×30×16 | 762 | - | 406.4 | - | 559 | 483 |
750×750×350 | 30×30×14 | 762 | - | 355.6 | - | 559 | 483 |
750×750×300 | 30×30×12 | 762 | - | 323.9 | - | 559 | 473 |
750×750×250 | 30×30×10 | 762 | - | 273.0 | - | 559 | 460 |
800×800×800 | 32×32×32 | 813 | 820 | 813 | 820 | 597 | 597 |
800×800×750 | 32×32×30 | 813 | - | 762 | - | 597 | 584 |
800×800×700 | 32×32×28 | 813 | 820 | 711 | 720 | 597 | 572 |
800×800×650 | 32×32×26 | 813 | - | 660 | - | 597 | 572 |
800×800×600 | 32×32×24 | 813 | 820 | 610 | 630 | 597 | 559 |
800×800×550 | 32×32×22 | 813 | - | 559 | - | 597 | 546 |
800×800×500 | 32×32×20 | 813 | 820 | 508 | 529 | 597 | 533 |
800×800×450 | 32×32×18 | 813 | 820 | 457 | 478 | 597 | 521 |
800×800×400 | 32×32×16 | 813 | 820 | 406.4 | 426 | 597 | 508 |
800×800×350 | 32×32×14 | 813 | 820 | 355.6 | 377 | 597 | 508 |
850×850×850 | 34×34×34 | 864 | - | 864 | - | 635 | 635 |
850×850×800 | 34×34×32 | 864 | - | 813 | - | 635 | 622 |
850×850×750 | 34×34×30 | 864 | - | 762 | - | 635 | 610 |
850×850×700 | 34×34×28 | 864 | - | 711 | - | 635 | 597 |
850×850×650 | 34×34×26 | 864 | - | 660 | - | 635 | 597 |
850×850×600 | 34×34×24 | 864 | - | 610 | - | 635 | 584 |
850×850×550 | 34×34×22 | 864 | - | 559 | - | 635 | 572 |
850×850×500 | 34×34×20 | 864 | - | 508 | - | 635 | 559 |
850×850×450 | 34×34×18 | 864 | - | 457 | - | 635 | 546 |
850×850×400 | 34×34×16 | 864 | - | 406.4 | - | 635 | 533 |
900×900×900 | 36×36×36 | 914 | 920 | 914 | 920 | 673 | 673 |
900×900×850 | 36×36×34 | 914 | - | 864 | - | 673 | 660 |
900×900×800 | 36×36×32 | 914 | 920 | 813 | 820 | 673 | 648 |
900×900×750 | 36×36×30 | 914 | - | 762 | - | 673 | 635 |
900×900×700 | 36×36×28 | 914 | 920 | 711 | 720 | 673 | 622 |
900×900×650 | 36×36×26 | 914 | - | 660 | - | 673 | 622 |
900×900×600 | 36×36×24 | 914 | - | 610 | - | 673 | 610 |
900×900×550 | 36×36×22 | 914 | - | 559 | - | 673 | 597 |
900×900×500 | 36×36×20 | 914 | 920 | 508 | 529 | 673 | 584 |
900×900×450 | 36×36×18 | 914 | 920 | 457 | 478 | 673 | 572 |
900×900×400 | 36×36×16 | 914 | 920 | 406.4 | 426 | 673 | 559 |
High-quality products
Reducing Tee: branch pipe outside diameter is different with main pipe outside diameters.Carbon steel reducing tee used for the piping system connection. Also known as pipe tee , straight tee or tee fitting,steel tees, a branch in the the main pipe.There are T-shaped and Y-shaped, equal tee and reducing tee, collect three branch pipe to the main pipe. The main role of the tee is to change the direction of flow.
Our packaging
Production Process
Cold Extrusion tee production process
Hot drawing tee production process
Butt tee production process
Tee workshop
Production Process
Contact Us
- CANGZHOU HAOYUAN PIPE FITTING MFG CO.,LTD
- Contact nameYIN
- Hot dipped galvanized malleable iron pipe fittings
- Rubber Bellows Expansion Joint
- Galvanized Iron Pipe Fittings
- INQO brand galvanized CAP M.I. pipe fittings
- BS galvanized beaded cross M.I. pipe fittings
- BS galvanized plain tee M.I. pipe fittings
- BS galvanized beaded elbow M.I. pipe fittings
- 301 cap malleable iron pipe fittings
- 130 tee malleable iron pipe fittings
- BS galvanized banded elbow M.I. pipe fittings
- electric galvanized hose nipple
- 340 Union galvanized malleable iron pipe fittings
Find Similar Products By Category
- Automobiles & Motorcycles > Motorcycle Accessories
- Buy on GoldSupplier.com
- How to Buy
- Browse by Catagories
- Browse by Hot Regoins
- Private Sourcing Events
- Sell on GoldSupplier.com
- How to Sell
- Post Products
- Manage Products
- Manage Groups
- About
- About Us
- Link to Us
- Contact Us
- Sitemap
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
YIN
Welcome to my shop! Glad to serve you!Please send your question!
Your message has exceeded the limit.
Your message has exceeded the limit.
-
-
Your inquiry content must be between 20 to 5000 characters.Send Now.
-
Please input the mailbox.
-
