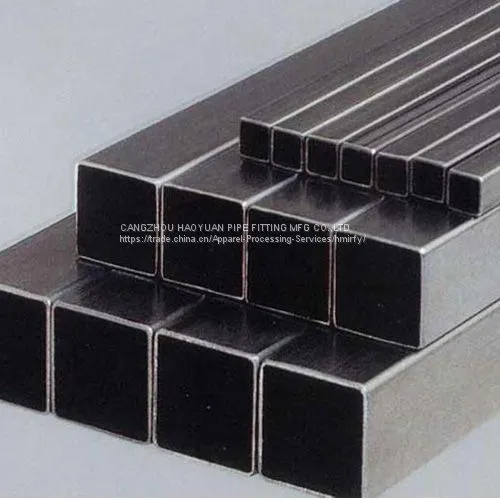

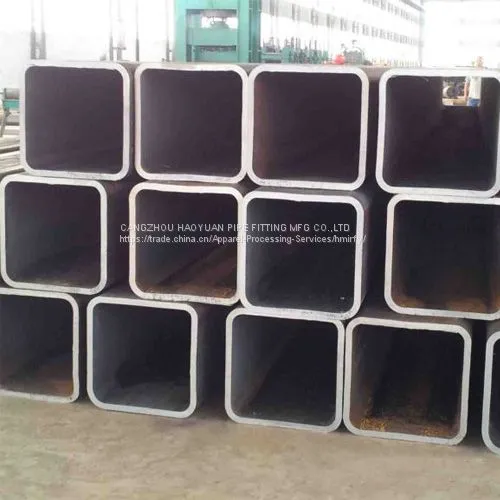

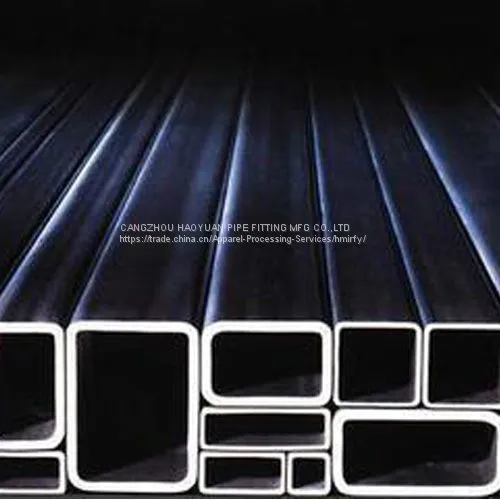

Rectangular steel pipe is divided into straight seam welded rectangular steel pipe and seamless square moment two kinds of specifications models:
Square tube: caliber F10 * 10 ---- 100 * 100 --- 300 * 300 --- 600 * 600mm, wall thickness 0.5mm-25mm
Rectangular tube: diameter J10 * 15 ----- 150 * 50 ---- 300 * 400-600 * 550mm, wall thickness 0.5mm-25mm
Length: 5M-12.5M
Square And Rectangular Steel Pipe wall thickness classification table
| Square tube (mm) | Rectangular tube (mm) | ||
| 16×16×0.4~1.5 | 380×380×8.0~14.0 | 10×20×0.6~1.5 | 250×150×6~12.0 |
| 18×18×0.4~1.5 | 400×400×8.0~14.0 | 14×21×0.6~1.5 | 250×100×6~12.0 |
| 20×20×0.4~1.5 | 420×420×10.0~14.0 | 15×30×1.5~1.5 | 250×200×6~12.0 |
| 25×25×0.6~2.0 | 450×450×10.0~14.0 | 15×38×0.6~1.5 | 300×150×6~12.0 |
| 30×30×0.6~4.0 | 480×480×10.0~14.0 | 20×30×0.6~2.0 | 300×200×6~12.0 |
| 34×34×1.0~2.0 | 500×500×10.0~14.0 | 20×40×0.8~2.0 | 300×250×6~12.0 |
| 35×35×1.0~4.0 | Change pull specification | 20×50×1.0~2.0 | 400×250×8~12.0 |
| 38×38×1.0~4.0 | 550×550×10.0~40.0 | 22×35×0.9~2.0 | 400×300×8~12.0 |
| 40×40×1.0~4.5 | 600×600×10.0~40.0 | 25×40×0.9~3.75 | 450×200×8~12.0 |
| 44×44×1.0~4.5 | 700×700×10.0~40.0 | 25×65×1.0~2.0 | 450×250×8~12.0 |
| 45×45×1.0~5.0 | 800×800×10.0~50.0 | 30×40×1.0~3.75 | 400×300×8~12.0 |
| 50×50×1.0~5.0 | 900×900×10.0~50.0 | 30×45×1.0~3.75 | 400×350×8~12.0 |
| 60×60×1.5~5.0 | 1000×1000×10.0~50.0 | 30×50×1.0~4.0 | 500×200×10~12.0 |
| 70×70×2.0~6.0 |
| 30×60×1.0~4.5 | 500×250×10~12.0 |
| 75×75×2.0~6.0 |
| 40×50×1.0~4.5 | 500×300×10~12.0 |
| 80×80×2.0~6.0 |
| 40×60×1.0~5.0 | 500×350×10~12.0 |
| 85×85×2.0~6.0 |
| 40×80×1.5~5.0 | 500×400×10~12.0 |
| 95×95×2.0~8.0 |
| 40×100×2.0~5.0 | 500×450×10~12.0 |
| 100×100×2.0~8.0 |
| 50×60×2.0~5.0 | Change pull specification |
| 120×120×4.0~8.0 |
| 50×80×2.0~5.0 | 600×200×10~28.0 |
| 150×150×6.0~10.0 |
| 50×100×2.0~8.0 | 600×400×10~28.0 |
| 180×180×6.0~12.0 |
| 60×80×2.0~6.0 | 600×500×10~28.0 |
| 200×200×6.0~12.0 |
| 80×100×2.0~8.0 | 800×400×10~28.0 |
| 220×220×6.0~14.0 |
| 120×60×2.5~10.0 | 800×600×10~28.0 |
| 250×250×6.0~14.0 |
| 120×80×2.5~10.0 | 800×700×10~28.0 |
| 280×280×6.0~14.0 |
| 150×100×2.5~12.0 | 1000×400×10~28.0 |
| 300×300×8.0~14.0 |
| 180×150×2.5~12.0 | 1000×500×10~28.0 |
| 320×320×8.0~14.0 |
| 200×100×4~12.0 | 1000×600×10~28.0 |
| 350×350×8.0~14.0 |
| 200×150×4~12.0 | 1000×800×10~28 |
Can be customized according to customer requirements seamless thick-walled pipe
High-quality products

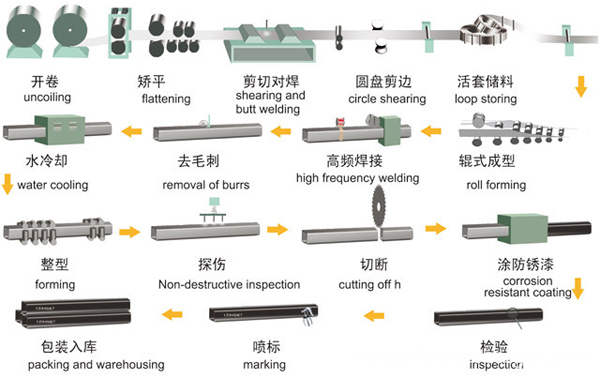

Square And Rectangular Steel Pipe Production Process
Executable standards: GB / T6728-2002, GB / T6725-2002, GBT3094-2000, JG 178-2005, ASTM A500 JIS G3466, EN10210 or technical agreement
Material: Q195-Q235, Q345, 20 #, alloy steel, ST37-2, ST52-3, S235, S355etc
Product packaging: painting; oil; anti-corrosion insulation; groove or flat mouth; tube end protection;
Applications: Widely used in machinery manufacturing, construction, metallurgical industry, agricultural vehicles, agricultural greenhouses, automobile industry, railways, highway guardrail, container skeleton, furniture, decoration and steel structure.

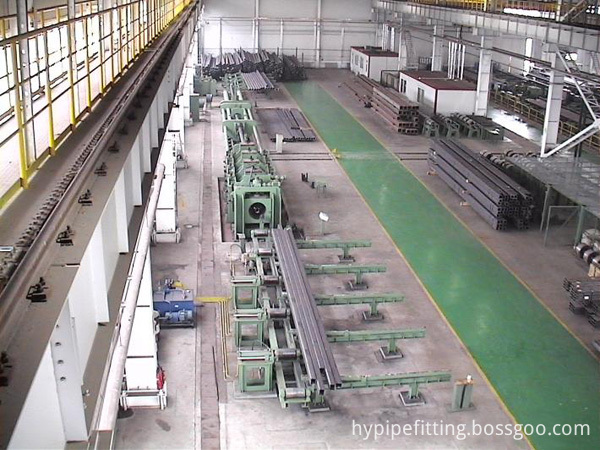

Lsaw Steel Pipe workshop
Production Process
