ASME Schedule 80 Equal Tee
- 0 per Month
Product Description
ANSI B16.9 Equal Tee shall not be cracked, overheated, or overburdened.

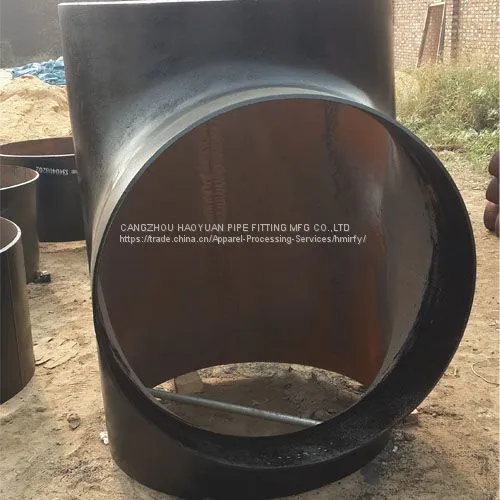

ASME Schedule 80 Equal Tee The inner and outer surfaces should be smooth and free from defects such as scars, scratches, and heavy skin. Confirm the lack of elimination so far, the wall thickness after grinding should not be less than 93.5% of the nominal wall thickness.
ASME Schedule 80 Equal Tee The branch root is not allowed to have significant wrinkles.
ASME Schedule 80 Any cracks, burns, overheats or hard spots on the Equal Tee are not allowed to be repaired. Defects in the tees are not allowed to be patched.

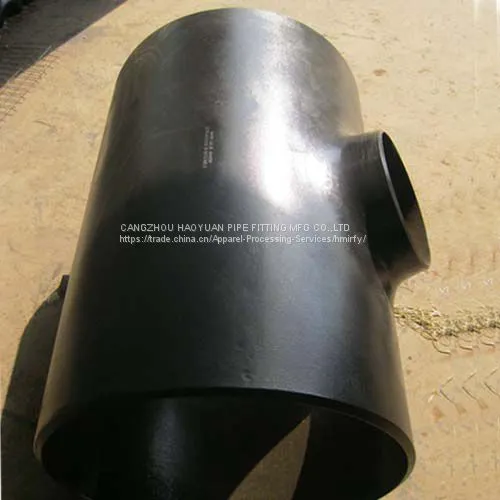

Carbon Steel Equal Tee Specifications
|
|
|
Straight Tee | Reducing Tee | Cross |
Nominal Diameter | Outside Diameter | Center to End | |||||
D1 | D2 | ||||||
DN | NPS | Series A | Series B | Series A | Series B | C | M |
15×15×15 | 1/2×1/2×1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
15×15×10 | 1/2×1/2×3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
15×15×8 | 1/2×1/2×1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
20×20×20 | 3/4×3/4×3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
20×20×15 | 3/4×3/4×1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
20×20×10 | 3/4×3/4×3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
25×25×25 | 1×1×1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
25×25×20 | 1×1×3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
25×25×15 | 1×1×1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
32×32×32 | 1.1/4×1.1/4×1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
32×32×25 | 1.1/4×1.1/4×1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
32×32×20 | 1.1/4×1.1/4×3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
32×32×15 | 1.1/4×1.1/4×1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
40×40×40 | 1.1/2×1.1/2×1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
40×40×32 | 1.1/2×1.1/2×1.1/4 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
40×40×25 | 1.1/2×1.1/2×1 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
40×40×20 | 1.1/2×1.1/2×3/4 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
40×40×15 | 1.1/2×1.1/2×1/2 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
50×50×50 | 2×2×2 | 60.3 | 57 | 60.3 | 57 | 64 | 64 |
50×50×40 | 2×2×1.1/2 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
50×50×32 | 2×2×1.1/4 | 60.3 | 57 | 42.4 | 38 | 64 | 57 |
50×50×25 | 2×2×1 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
50×50×20 | 2×2×3/4 | 60.3 | 57 | 26.9 | 25 | 64 | 44 |
65×65×65 | 2.1/2×2/1/2×2.1/2 | 73.0 | 76 | 73.0 | 76 | 76 | 76 |
65×65×50 | 2.1/2×2/1/2×2 | 73.0 | 76 | 60.3 | 57 | 76 | 70 |
65×65×40 | 2.1/2×2/1/2×1.1/2 | 73.0 | 76 | 48.3 | 45 | 76 | 67 |
65×65×32 | 2.1/2×2/1/2×1.1/4 | 73.0 | 76 | 42.4 | 38 | 76 | 64 |
65×65×25 | 2.1/2×2/1/2×1 | 73.0 | 76 | 33.7 | 32 | 76 | 57 |
80×80×80 | 3×3×3 | 88.9 | 89 | 88.9 | 89 | 86 | 86 |
80×80×65 | 3×3×2.1/2 | 88.9 | 89 | 73.0 | 76 | 86 | 83 |
80×80×50 | 3×3×2 | 88.9 | 89 | 60.3 | 57 | 86 | 76 |
80×80×40 | 3×3×1.1/2 | 88.9 | 89 | 48.3 | 45 | 86 | 73 |
80×80×32 | 3×3×1.1/4 | 88.9 | 89 | 42.4 | 38 | 86 | 70 |
90×90×90 | 3.1/2×3.1/2×3.1/2 | 101.6 | - | 101.6 | - | 95 | 95 |
90×90×80 | 3.1/2×3.1/2×3 | 101.6 | - | 88.9 | 89 | 95 | 92 |
90×90×65 | 3.1/2×3.1/2×2.1/2 | 101.6 | - | 73.0 | 76 | 95 | 89 |
90×90×50 | 3.1/2×3.1/2×2 | 101.6 | - | 60.3 | 57 | 95 | 83 |
90×90×40 | 3.1/2×3.1/2×1.1/2 | 101.6 | - | 48.3 | 45 | 95 | 79 |
100×100×100 | 4×4×4 | 114.3 | 108 | 114.3 | 108 | 105 | 105 |
100×100×90 | 4×4×3.1/2 | 114.3 | 108 | 101.6 | - | 105 | 102 |
100×100×80 | 4×4×3 | 114.3 | 108 | 88.9 | 89 | 105 | 98 |
100×100×65 | 4×4×2.1/2 | 114.3 | 108 | 73.0 | 76 | 105 | 95 |
100×100×50 | 4×4×2 | 114.3 | 108 | 60.3 | 57 | 105 | 89 |
100×100×40 | 4×4×1.1/2 | 114.3 | 108 | 48.3 | 45 | 105 | 86 |
125×125×125 | 5×5×5 | 141.3 | 133 | 141.3 | 133 | 124 | 124 |
125×125×100 | 5×5×4 | 141.3 | 133 | 114.3 | 108 | 124 | 117 |
125×125×90 | 5×5×3.1/2 | 141.3 | - | 101.6 | - | 124 | 114 |
125×125×80 | 5×5×3 | 141.3 | 133 | 88.9 | 89 | 124 | 111 |
125×125×65 | 5×5×2.1.2 | 141.3 | 133 | 73.0 | 76 | 124 | 108 |
125×125×50 | 5×5×2 | 141.3 | 133 | 60.3 | 57 | 124 | 105 |
150×150×150 | 6×6×6 | 168.3 | 159 | 168.3 | 159 | 143 | 143 |
150×150×125 | 6×6×5 | 168.3 | 159 | 141.3 | 133 | 143 | 137 |
150×150×100 | 6×6×4 | 168.3 | 159 | 114.3 | 108 | 143 | 130 |
150×150×90 | 6×6×3.1/2 | 1, 68.3 | - | 101.6 | - | 143 | 127 |
150×150×80 | 6×6×3 | 168.3 | 159 | 88.9 | 89 | 143 | 124 |
150×150×65 | 6×6×2.1/2 | 168.3 | 159 | 73.0 | 76 | 143 | 121 |
200×200×200 | 8×8×8 | 219.1 | 219 | 219.1 | 219 | 178 | 178 |
200×200×150 | 8×8×6 | 219.1 | 219 | 168.3 | 159 | 178 | 168 |
200×200×125 | 8×8×5 | 219.1 | 219 | 141.4 | 133 | 178 | 162 |
200×200×100 | 8×8×4 | 219.1 | 219 | 114.3 | 108 | 178 | 156 |
200×200×90 | 8×8×3.1/2 | 219.1 | - | 101.6 | - | 178 | 152 |
250×250×250 | 10×10×10 | 273.0 | 273 | 273.0 | 273 | 216 | 216 |
250×250×200 | 10×10×8 | 273.0 | 273 | 219.1 | 219 | 216 | 203 |
250×250×150 | 10×10×6 | 273.0 | 273 | 168.3 | 159 | 216 | 194 |
250×250×125 | 10×10×5 | 273.0 | 273 | 141.3 | 133 | 216 | 191 |
250×250×100 | 10×10×4 | 273.0 | 273 | 114.3 | 108 | 216 | 184 |
300×300×300 | 12×12×12 | 323.9 | 325 | 323.9 | 325 | 254 | 254 |
300×300×250 | 12×12×10 | 323.9 | 325 | 273.0 | 273 | 254 | 241 |
300×300×200 | 12×12×8 | 323.9 | 325 | 219.1 | 219 | 254 | 229 |
300×300×150 | 12×12×6 | 323.9 | 325 | 168.3 | 159 | 254 | 219 |
300×300×125 | 12×12×5 | 323.9 | 325 | 141.3 | 133 | 254 | 216 |
350×350×350 | 14×14×14 | 355.6 | 377 | 355.6 | 377 | 279 | 279 |
350×350×300 | 14×14×12 | 355.6 | 377 | 323.9 | 325 | 279 | 270 |
350×350×250 | 14×14×10 | 355.6 | 377 | 273.0 | 273 | 279 | 257 |
350×350×200 | 14×14×8 | 355.6 | 377 | 219.1 | 219 | 279 | 248 |
350×350×150 | 14×14×6 | 355.6 | 377 | 168.3 | 159 | 279 | 238 |
400×400×400 | 16×16×16 | 406.4 | 426 | 406.4 | 426 | 305 | 305 |
400×400×350 | 16×16×14 | 406.4 | 426 | 355.6 | 377 | 305 | 305 |
400×400×300 | 16×16×12 | 406.4 | 426 | 323.9 | 325 | 305 | 295 |
400×400×250 | 16×16×10 | 406.4 | 426 | 273.0 | 273 | 305 | 283 |
400×400×200 | 16×16×8 | 406.4 | 426 | 219.1 | 219 | 305 | 273 |
400×400×150 | 16×16×6 | 406.4 | 426 | 168.3 | 159 | 305 | 264 |
450×450×450 | 18×18×18 | 457 | 480 | 457 | 480 | 343 | 343 |
450×450×400 | 18×18×16 | 457 | 480 | 406.4 | 426 | 343 | 330 |
450×450×350 | 18×18×14 | 457 | 480 | 355.6 | 377 | 343 | 330 |
450×450×300 | 18×18×12 | 457 | 480 | 323.9 | 325 | 343 | 321 |
450×450×250 | 18×18×10 | 457 | 480 | 273.0 | 273 | 343 | 308 |
450×450×200 | 18×18×8 | 457 | 480 | 219.1 | 219 | 343 | 298 |
500×500×500 | 20×20×20 | 508 | 530 | 508 | 530 | 381 | 381 |
500×500×450 | 20×20×20 | 508 | 530 | 457 | 480 | 381 | 368 |
500×500×400 | 20×20×20 | 508 | 530 | 406.4 | 426 | 381 | 356 |
500×500×350 | 20×20×20 | 508 | 530 | 355.6 | 377 | 381 | 356 |
500×500×300 | 20×20×20 | 508 | 530 | 323.9 | 325 | 381 | 346 |
500×500×250 | 20×20×20 | 508 | 530 | 273.0 | 273 | 381 | 333 |
500×500×200 | 20×20×20 | 508 | 530 | 219.1 | 219 | 381 | 324 |
550×550×550 | 22×22×22 | 559 | - | 559 | - | 419 | 419 |
550×550×500 | 22×22×20 | 559 | - | 508 | - | 419 | 406 |
550×550×450 | 22×22×18 | 559 | - | 457 | - | 419 | 394 |
550×550×400 | 22×22×16 | 559 | - | 406.4 | - | 419 | 381 |
550×550×350 | 22×22×14 | 559 | - | 355.6 | - | 419 | 381 |
550×550×300 | 22×22×12 | 559 | - | 323.9 | - | 419 | 371 |
550×550×250 | 22×22×10 | 559 | - | 273.0 | - | 419 | 359 |
600×600×600 | 24×24×24 | 610 | 630 | 610 | 630 | 432 | 432 |
600×600×550 | 24×24×22 | 610 | - | 559 | - | 432 | 432 |
600×600×500 | 24×24×20 | 610 | 630 | 508 | 530 | 432 | 432 |
600×600×450 | 24×24×18 | 610 | 630 | 457 | 480 | 432 | 419 |
600×600×400 | 24×24×16 | 610 | 630 | 406.4 | 426 | 432 | 406 |
600×600×350 | 24×24×14 | 610 | 630 | 355.6 | 377 | 432 | 406 |
600×600×300 | 24×24×12 | 610 | 630 | 323.9 | 325 | 432 | 397 |
600×600×250 | 24×24×10 | 610 | 630 | 273.0 | 273 | 432 | 384 |
650×650×650 | 26×26×26 | 660 | - | 660 | - | 495 | 495 |
650×650×600 | 26×26×24 | 660 | - | 610 | - | 495 | 483 |
650×650×550 | 26×26×22 | 660 | - | 559 | - | 495 | 470 |
650×650×500 | 26×26×20 | 660 | - | 508 | - | 495 | 457 |
650×650×450 | 26×26×18 | 660 | - | 457 | - | 495 | 444 |
650×650×400 | 26×26×16 | 660 | - | 406.4 | - | 495 | 432 |
650×650×350 | 26×26×14 | 660 | - | 355.6 | - | 495 | 432 |
650×650×300 | 26×26×12 | 660 | - | 323.9 | - | 495 | 422 |
700×700×700 | 28×28×28 | 711 | 720 | 711 | 720 | 521 | 521 |
700×700×650 | 28×28×26 | 711 | - | 660 | - | 521 | 521 |
700×700×600 | 28×28×24 | 711 | 720 | 610 | 630 | 521 | 508 |
700×700×550 | 28×28×22 | 711 | - | 559 | - | 521 | 495 |
700×700×500 | 28×28×20 | 711 | 720 | 508 | 529 | 521 | 483 |
700×700×450 | 28×28×18 | 711 | 720 | 457 | 478 | 521 | 470 |
700×700×400 | 28×28×16 | 711 | 720 | 406.4 | 426 | 521 | 457 |
700×700×350 | 28×28×14 | 711 | 720 | 355.6 | 377 | 521 | 457 |
700×700×300 | 28×28×12 | 711 | 720 | 323.9 | 325 | 521 | 448 |
750×750×750 | 30×30×30 | 762 | - | 762 | - | 559 | 559 |
750×750×700 | 30×30×28 | 762 | - | 711 | - | 559 | 546 |
750×750×650 | 30×30×26 | 762 | - | 660 | - | 559 | 546 |
750×750×600 | 30×30×24 | 762 | - | 610 | - | 559 | 533 |
750×750×550 | 30×30×22 | 762 | - | 559 | - | 559 | 521 |
750×750×500 | 30×30×20 | 762 | - | 508 | - | 559 | 508 |
750×750×450 | 30×30×18 | 762 | - | 457 | - | 559 | 495 |
750×750×400 | 30×30×16 | 762 | - | 406.4 | - | 559 | 483 |
750×750×350 | 30×30×14 | 762 | - | 355.6 | - | 559 | 483 |
750×750×300 | 30×30×12 | 762 | - | 323.9 | - | 559 | 473 |
750×750×250 | 30×30×10 | 762 | - | 273.0 | - | 559 | 460 |
800×800×800 | 32×32×32 | 813 | 820 | 813 | 820 | 597 | 597 |
800×800×750 | 32×32×30 | 813 | - | 762 | - | 597 | 584 |
800×800×700 | 32×32×28 | 813 | 820 | 711 | 720 | 597 | 572 |
800×800×650 | 32×32×26 | 813 | - | 660 | - | 597 | 572 |
800×800×600 | 32×32×24 | 813 | 820 | 610 | 630 | 597 | 559 |
800×800×550 | 32×32×22 | 813 | - | 559 | - | 597 | 546 |
800×800×500 | 32×32×20 | 813 | 820 | 508 | 529 | 597 | 533 |
800×800×450 | 32×32×18 | 813 | 820 | 457 | 478 | 597 | 521 |
800×800×400 | 32×32×16 | 813 | 820 | 406.4 | 426 | 597 | 508 |
800×800×350 | 32×32×14 | 813 | 820 | 355.6 | 377 | 597 | 508 |
850×850×850 | 34×34×34 | 864 | - | 864 | - | 635 | 635 |
850×850×800 | 34×34×32 | 864 | - | 813 | - | 635 | 622 |
850×850×750 | 34×34×30 | 864 | - | 762 | - | 635 | 610 |
850×850×700 | 34×34×28 | 864 | - | 711 | - | 635 | 597 |
850×850×650 | 34×34×26 | 864 | - | 660 | - | 635 | 597 |
850×850×600 | 34×34×24 | 864 | - | 610 | - | 635 | 584 |
850×850×550 | 34×34×22 | 864 | - | 559 | - | 635 | 572 |
850×850×500 | 34×34×20 | 864 | - | 508 | - | 635 | 559 |
850×850×450 | 34×34×18 | 864 | - | 457 | - | 635 | 546 |
850×850×400 | 34×34×16 | 864 | - | 406.4 | - | 635 | 533 |
900×900×900 | 36×36×36 | 914 | 920 | 914 | 920 | 673 | 673 |
900×900×850 | 36×36×34 | 914 | - | 864 | - | 673 | 660 |
900×900×800 | 36×36×32 | 914 | 920 | 813 | 820 | 673 | 648 |
900×900×750 | 36×36×30 | 914 | - | 762 | - | 673 | 635 |
900×900×700 | 36×36×28 | 914 | 920 | 711 | 720 | 673 | 622 |
900×900×650 | 36×36×26 | 914 | - | 660 | - | 673 | 622 |
900×900×600 | 36×36×24 | 914 | - | 610 | - | 673 | 610 |
900×900×550 | 36×36×22 | 914 | - | 559 | - | 673 | 597 |
900×900×500 | 36×36×20 | 914 | 920 | 508 | 529 | 673 | 584 |
900×900×450 | 36×36×18 | 914 | 920 | 457 | 478 | 673 | 572 |
900×900×400 | 36×36×16 | 914 | 920 | 406.4 | 426 | 673 | 559 |
High-quality products

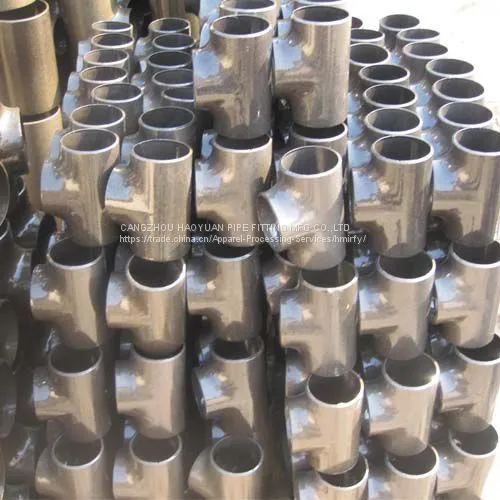

Tee used for the piping system connection. Also known as pipe tee , straight tee or tee fitting,steel tees, a branch in the the main pipe.There are T-shaped and Y-shaped, equal tee and reducing tee, collect three branch pipe to the main pipe. The main role of the tee is to change the direction of flow.
Our packaging
A234 WPB Butt Welded Equal Tee Production Process
Cold Extrusion tee production process
Hot drawing tee production process
Butt tee production process
Tee workshop
Production Process
Contact Us
- CANGZHOU HAOYUAN PIPE FITTING MFG CO.,LTD
- Contact nameYIN
- Hot dipped galvanized malleable iron pipe fittings
- Rubber Bellows Expansion Joint
- Galvanized Iron Pipe Fittings
- INQO brand galvanized CAP M.I. pipe fittings
- BS galvanized beaded cross M.I. pipe fittings
- BS galvanized plain tee M.I. pipe fittings
- BS galvanized beaded elbow M.I. pipe fittings
- 301 cap malleable iron pipe fittings
- 130 tee malleable iron pipe fittings
- BS galvanized banded elbow M.I. pipe fittings
- electric galvanized hose nipple
- 340 Union galvanized malleable iron pipe fittings
Find Similar Products By Category
- Automobiles & Motorcycles > Motorcycle Accessories
- Buy on GoldSupplier.com
- How to Buy
- Browse by Catagories
- Browse by Hot Regoins
- Private Sourcing Events
- Sell on GoldSupplier.com
- How to Sell
- Post Products
- Manage Products
- Manage Groups
- About
- About Us
- Link to Us
- Contact Us
- Sitemap
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
YIN
Welcome to my shop! Glad to serve you!Please send your question!
Your message has exceeded the limit.
Your message has exceeded the limit.
-
-
Your inquiry content must be between 20 to 5000 characters.Send Now.
-
Please input the mailbox.
-
