Home > Products > "Juanyong" Brand Water Pump > JUANYONG Brand Marine Water Pump Sea Water Pump Chemical Water Pump
JUANYONG Brand Marine Water Pump Sea Water Pump Chemical Water Pump
- 1500 Set / Sets per Month
- Chngqing
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Chongqing, China | Brand Name: | JUANYONG | Model Number: | FTB80 |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Hydraulic | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Low Pressure | Application: | Maritime |
Product Description
3 Inch Chemical Water Pump
Product Description
We specilize in water pump for many years.Our products have been sold to main domestic markets and exported to the Europe,North American,African,South American and Southeast Asian countries.Which has enjoyed great popularity in world market.This kind of chemiacal water pump is designed for fire with 5.5 hp gasoline engine ,which can work efficiently and stably.
Performance curve
Parameter
ITEM | FTB80 |
Outlet Size(mm) | 80 |
Inlet Size(mm) | 80 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 50 |
Lift H.max(m) | 22 |
Suction(m) | 7 |
Engine Model | 168F |
Serial number | Name
| Number
|
1 | Water pump cover | 1 |
2 | Rubber ring φ12×φ6×3.1 | 4 |
3 | Bolt M8×35 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Inlet joint | 2 |
11 | The water outlet joint | 1 |
12 | Threaded plug pump | 2 |
13 | Pipe joint connecting nut | 2 |
14 | Pipe joint | 2 |
15 | Clamp | 3 |
16 | Filter cover | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Bolt M8×35 | 2 |
19 | Nut M8 | 2 |
20 | BoltM6×65 | 10 |
21 | Shim | 20 |
22 | Spring pad | 10 |
23 | Nut M6 | 10 |

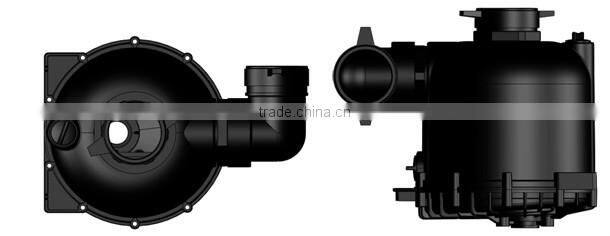

Product Image
Application
Applies to high pressure washer .
Applies to garden for cleaning and watering, and also for fog system.
Applies to large fire scene.
Applies to agriculture irrigation.
Applies to water supply and drainage in factory. power station.
Applies to transporting pure water or liquids with physical and chemical properties similar to water.
Why Choose Us
Alibaba golden supplier, factory recognized by "CE/IS9001"and so on
We are a factory manufacturing pump,best production capability ,best quality
Professional design team and sales department for your service.
Free and quick technical guidance will be offered to buyers in 12 hours always.
We have established stable cooperation with major customers in the US, Canada, Italy and Germany
Our Service
We can make sample according to your requirement.
We can supply OEM production.
We also accept small orders.
We reply you in a very short time.
We provide high quality products.
We can guarantee the delivery time
We are looking forward to building a long-standing business relationship on the basis of equality and mutual benefits
Factory Photo
Company Information
Tianzhiyuan Machinery Company within concentrated operation of self-priming water pump, include farm irrigation high lift self priming pump, water pumps with 2-6 inches, self priming clear water pump, self priming dirty pumps, high lift water pump, chemical pump/ agriculture irrigation water pump, sewage water pump and related machine components. The company has established their brand-----JUANYONG.
Tianzhiyuan is actively expanding its existing business and assessing new opportunities throughout China and the globe. Through various functions, we are working to provide the right products and services to customers at home and abroad. Tianzhiyuan develop it services according to its customer’s requirement.
FAQ
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than seven years production experience,welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
