Product Description
Performance curve
Parameter
ITEM |
WP40A |
Outlet Size(mm) |
40 |
Inlet Size(mm) |
40 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
12 |
Lift H.max(m) |
15 |
Suction(m) |
7 |
Engine Model |
152F |

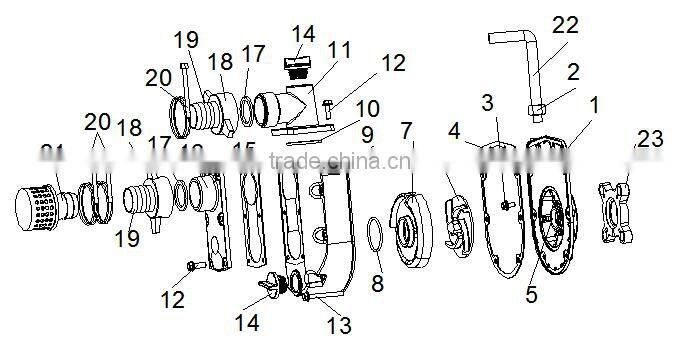

Serial number |
Name
|
Number |
1 |
Water pump cover |
1 |
2 |
nut M14 |
1 |
3 |
Bolt M6×25 GB5787 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Outlet gasket |
1 |
11 |
The water outlet joint |
1 |
12 |
Bolt M6 |
8 |
13 |
Bolt M6×55 |
6 |
14 |
Threaded plug pump |
2 |
15 |
Inlet sealing gasket |
1 |
16 |
Inlet joint |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Pipe joint connecting nut |
2 |
19 |
Pipe joint |
2 |
20 |
Clamp |
3 |
21 |
Filter cover |
1 |
22 |
The handle |
1 |
23 |
Connecting flange |
1 |
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
