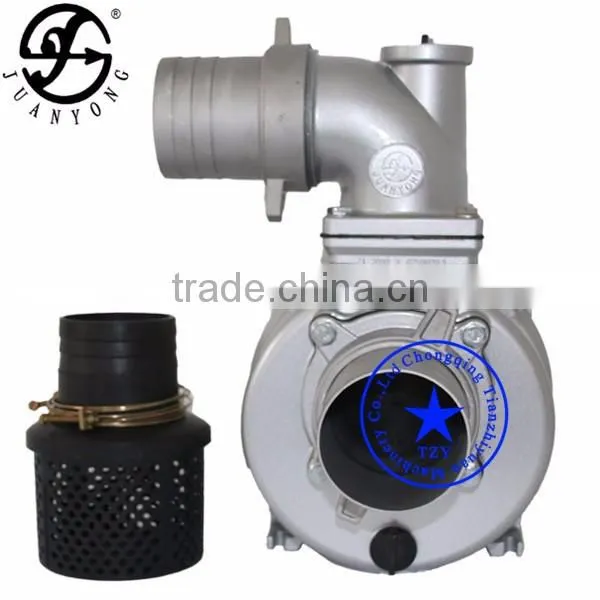

Help CenterJUANYONG 4"self Priming Water Pump for Centrifugal Pumps Water Pumps
Related Products
-
JUANYONG1.5"self Priming Water Pump With Agriculture Water Pump Water PumpsUS$ 14 - 24MOQ: 5 Sets -
JUANYONG 1"self Priming Water Pump With Agricultural Irrigation PumpsUS$ 12 - 22MOQ: 5 Sets
-
JUANYONG 2"drag Water Pump of Low Pressure Pressure and Hydraulic Power 6hp Water PumpUS$ 26 - 36MOQ: 5 Sets
-
JUANYONG 2"high Pressure Pump for Decor Outdoor Garden Water Fountain Bowl Electric Water PumpUS$ 30 - 40MOQ: 5 Sets
-
JUANYONG2&3&4&6 Gasoline Water Pump for Desert Control 1.5-60t/hUS$ 97 - 235MOQ: 5 Sets

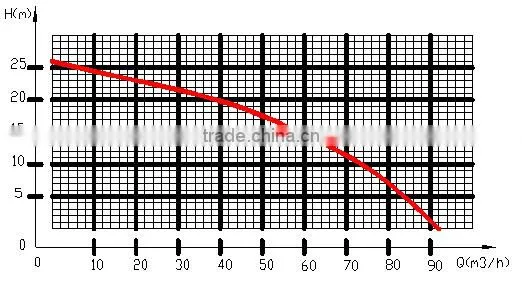

Performance curve
Parameter
ITEM |
WP100 |
Outlet Size(mm) |
100 |
Inlet Size(mm) |
100 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
90 |
Lift H.max(m) |
25 |
Suction(m) |
7 |
Engine Model |
190F |

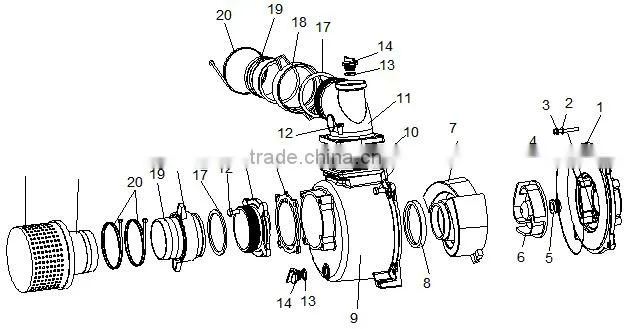

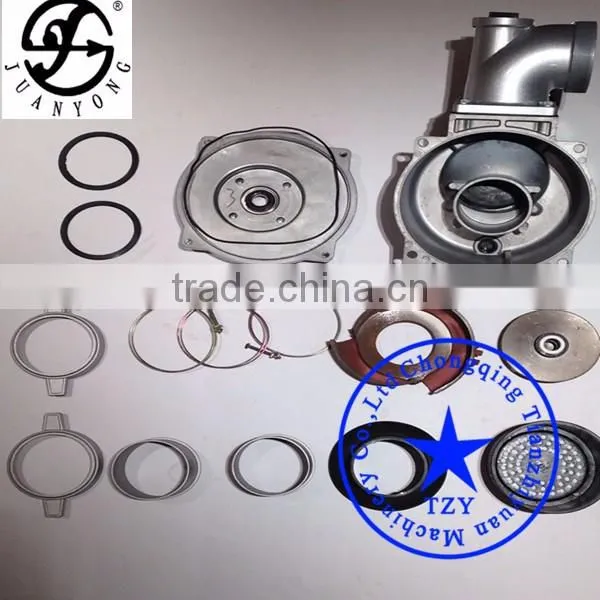

Serial number |
Name
|
Number |
1 |
Water pump cover |
1 |
2 |
Aluminum flat washer φ8×φ16×1.5 |
5 |
3 |
Bolt M8×45 GB5787 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Outlet gasket |
1 |
11 |
The water outlet joint |
1 |
12 |
Bolt M10×30 |
12 |
13 |
Rubber plug gasket |
2 |
14 |
Threaded plug pump |
2 |
15 |
Inlet sealing gasket |
1 |
16 |
Inlet joint |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Pipe joint connecting nut |
2 |
19 |
Pipe joint |
2 |
20 |
Clamp |
3 |
21 |
The filtering orifices |
1 |
22 |
Filter cover |
1 |
RFQ
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than seven years production experience,welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
