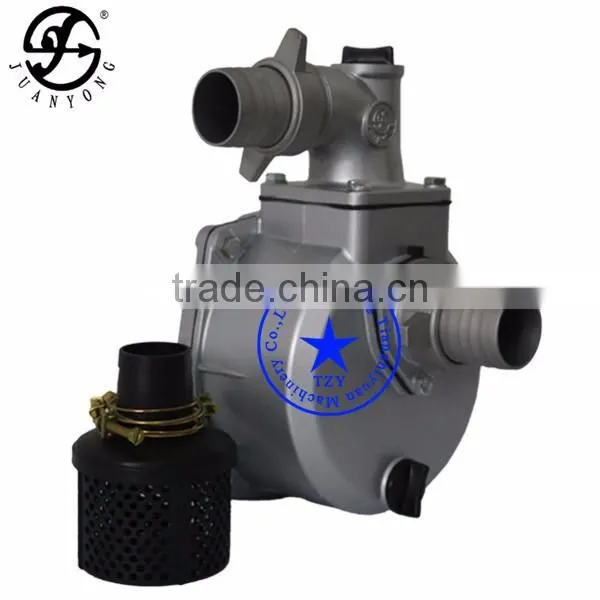

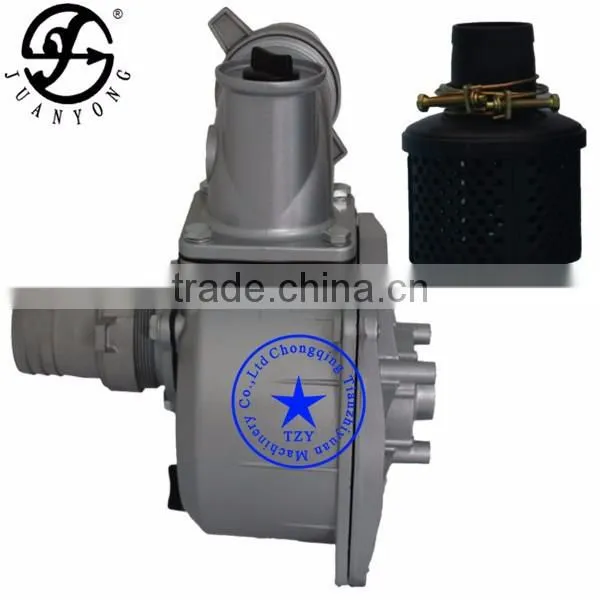

Help CenterJUANYONG 3"self Priming Water Pump With Centrifugal Pump Manufacturers Water Pumps
Related Products
-
JUANYONG 6"self Priming Water Pump With Farm Irrigation Sewage Pumps Manufacturer Made in ChinaUS$ 190 - 200MOQ: 5 Sets -
JUANYONG 2"self Priming Water Pump With Aluminum Water PumpUS$ 16 - 26MOQ: 5 Sets
-
JUANYONG 4"self Priming Water Pump for Centrifugal Pumps Water PumpsUS$ 39 - 49MOQ: 5 Sets
-
JUANYONG1.5"self Priming Water Pump With Agriculture Water Pump Water PumpsUS$ 14 - 24MOQ: 5 Sets
-
JUANYONG 1"self Priming Water Pump With Agricultural Irrigation PumpsUS$ 12 - 22MOQ: 5 Sets
Product Description

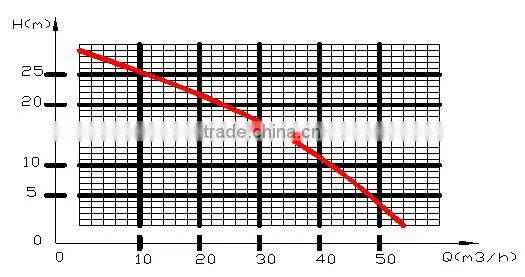

Performance curve
Parameter
ITEM |
WP80 |
Outlet Size(mm) |
80 |
Inlet Size(mm) |
80 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
50 |
Lift H.max(m) |
28 |
Suction(m) |
7 |
Engine Model |
168F |

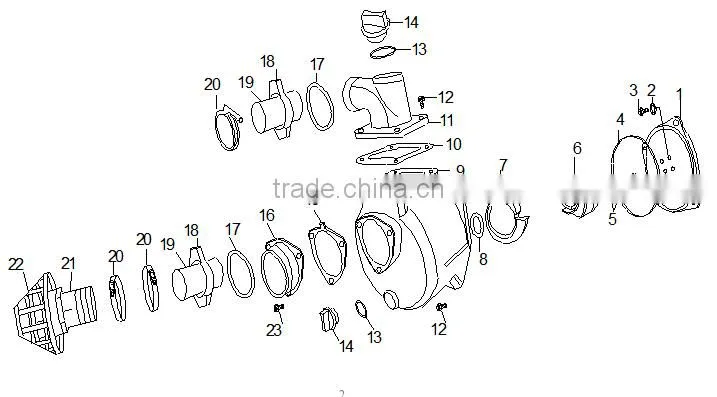

Serial number |
Name
|
Number |
1 |
Water pump cover |
1 |
2 |
Aluminum flat washer φ8×φ16×1.5 |
4 |
3 |
Bolt M8×65 GB5787 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Outlet gasket |
1 |
11 |
The water outlet joint |
1 |
12 |
Bolt M10 |
11 |
13 |
Rubber plug gasket |
2 |
14 |
Threaded plug pump |
2 |
15 |
Inlet sealing gasket |
1 |
16 |
Inlet joint |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Pipe joint connecting nut |
2 |
19 |
Pipe joint |
2 |
20 |
Clamp |
3 |
21 |
The filtering orifices |
1 |
22 |
Filter cover |
1 |
Delivery time:10-15days after initial payment.
Sampe by express, like UPS,TNT,FEDEX,EMS by air.
For large goods will delivery by sea.
Payment :T/T30% payment in advance,70% pay it when we prepared all goods after.
West Uion/PayPal and the special issues can be discussed.
