Specifications
1.ISO9001:2008,ROHS2.15 year experience.
3.Application:60-1200w/k

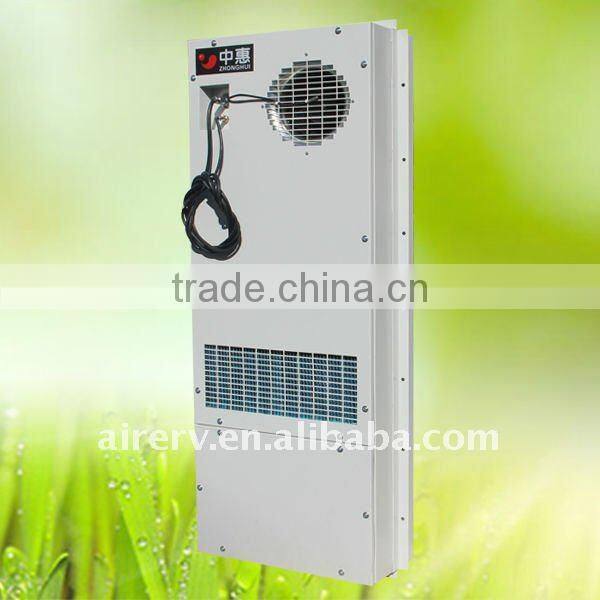

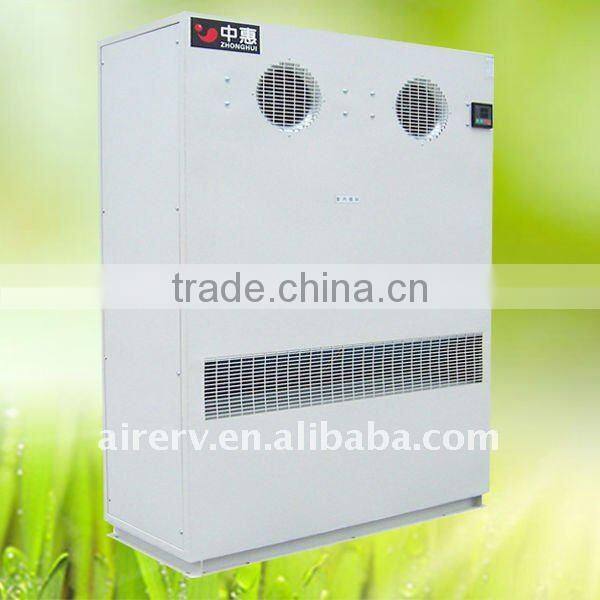

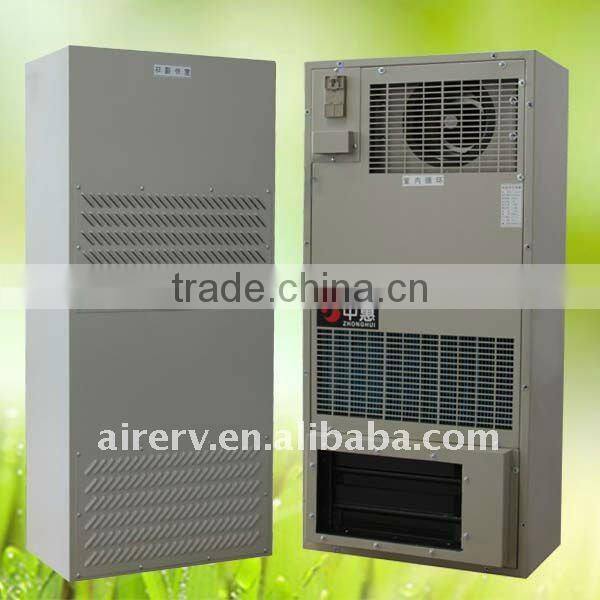

Used for Outdoor Cabinet ventilator
Overview

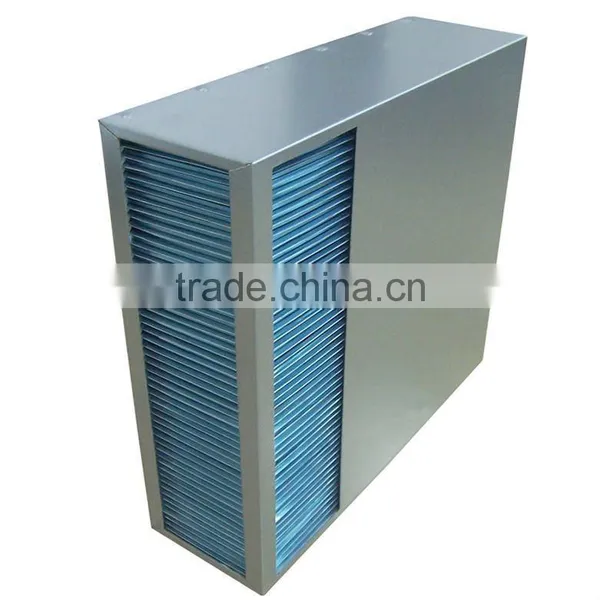

The ERB counter flow recuperator is made of antiseptic hydrophilic aluminum foil, used for outdoor cabinet and base station heat exchanger, two air channels are completely separated, which make sure no secondary sollution,
thermal conductivity fast, and high heat transfer rate.
Concave&convex sheet Five layer curring 90°angle
Working Principle
The Counter flow recuperator, the two air flows from outdoorand indoor retrograde into the completely separated air channel, achieve the heat transfer and recover the heat energy.
Counter flow
Feature
1. Adopted antiseptic hydrophilic aluminum foil as heat conductor, processed by special technics, high efficiency,
easy to maintain, and long service time.
2. Module structure, no use of rivets or screws.
3. No running components, and low maintenance cost.
4. Suitable for washing with water or neutral detergent.
5. Compact structure, small volume and suitable for various occasions.
Production technology
1. The face of counter flow recuperatorprocessed with strengthened heat transfer stamping, increased the 10%
heat transfer area.
2. Adopted punch Concavo-convex cylinder as air channel support, can bear high air pressure.
3. Two separated channels for the airflow by aluminium foil, five layer crimping techniques for entry and exit edge,
ensured the excellent air tightness.
4. All joints are airproofed by airproof glue, ensured that the heat exchanger has excellent air tightness.
Model Range
Dimension (mm) | Plate distance (mm) | ||
A | B | C | |
On request ≤650 | On request ≤650 | On request ≤1000 |
2.0-8.0 |
Applied Range

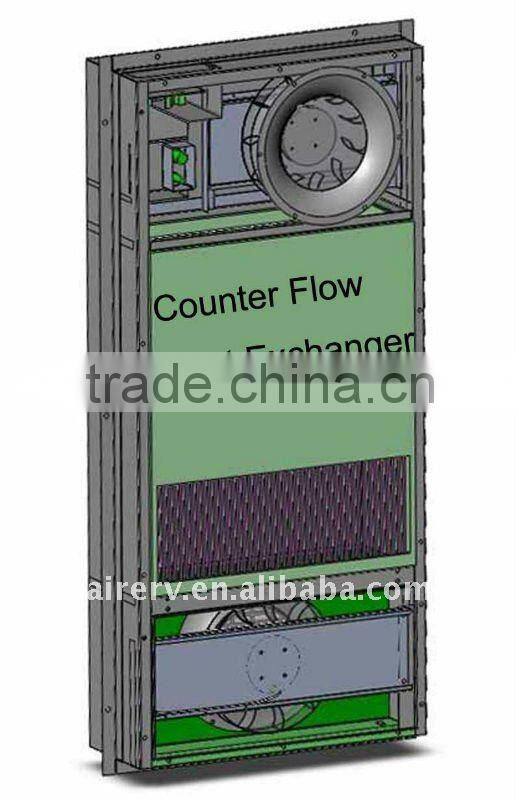

The counter flow heat exchanger is the major part of cabinet or base station ventilation(As shown below) , for air
volumes up to 5000m3/h. The heat exchanger recover the heat energy in winter and cold energy in summer, not
only save the energy but also give station for fresh air, ensure the normal operation of equipments.
Welccome to order our Counter flow recuperator!
