The ERA cross flow air recuperator is made of antiseptic hydrophilic/Epoxy coating aluminium foil, which use for HRV
system, in order to recover heat energy. ERA have no secondary sollution, thermal conductivity fast, and high heat
transfer rate features.
Working principle
The air recuperator is the major part of heat recovery ventilator. Because the different temperature between the fresh
air and exhaust air, the air is forced to crossover through the heat exchanger, the heat would transfer from the hotter
side to the colder side, so as to recover the energy from exhaust air.Two airstream never come into direct contact,
make sure no cross contamination.
Cross flow

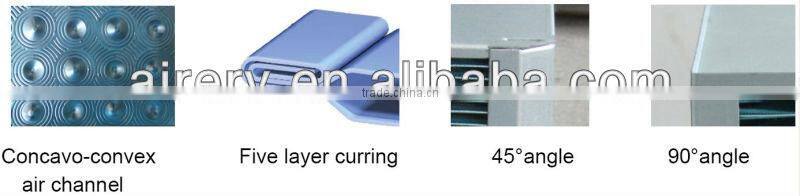

Feature
1. Adopt antiseptic hydrophilic aluminium, resistant to corrosion, with long service life.
2. Module structure, no use of rivets or screws.
3. No running components, low maintenance cost.
4. Suitable for washing with water or neutral detergent.
5. Extremly high strength and pressure related stability.
6. Compact structure, small volume, suitable for various occasions.

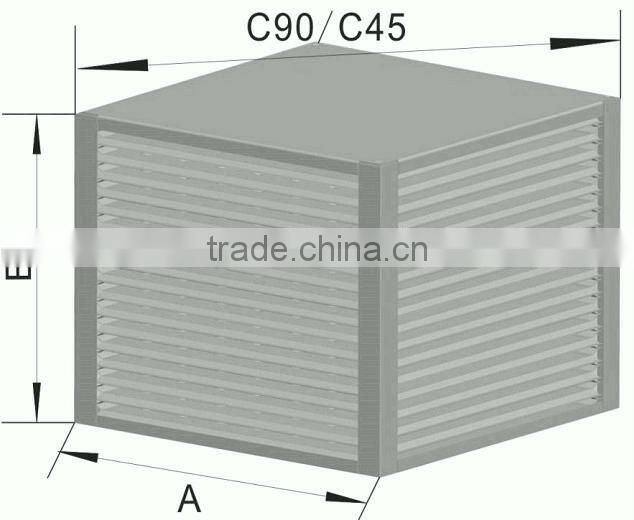

Model Range
Dimension (mm) | Plate distance (mm) | ||
A1=A2 | B | C90/C45 | |
On request ≤650 | On request ≤1000 | On request (45°/90°) | 2.0-14.0 |
Remark:
1. As soon as possible to use economic face velocity (1-m/s ~ 2.5 m/s) air to air heat exchanger, ensure the
economic running.
2. The sectional size, height and plate distance are available to customers′ requirements.
Applied range
The air to air heat exchanger is the major part of heat recovery ventilator(HRV), for air volumes up to 30,000 m3/h,
include the household and commercial ventilations. The heat exchanger controlled the ventilation, recover the heat energy in
winter and cold energy in summer, not only save the energy but also give room for fresh air.

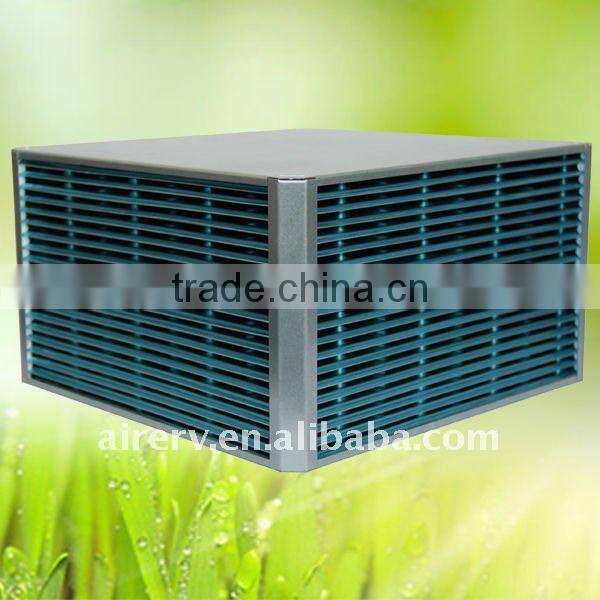

Welccome to inquire our fresh air cooling recuperator for generator !
Jeffrey (at)
15105979197
