Specifications
Countert Flow Heat exchanger1.Rohs and CE certification
2.different shapes for you choose
3.hydrophilic aluminum foil
Counter flow heat exchanger material
1.Anti-corrosive hydrophilic aluminum foil and galvanized sheet framework, process by special
technology.

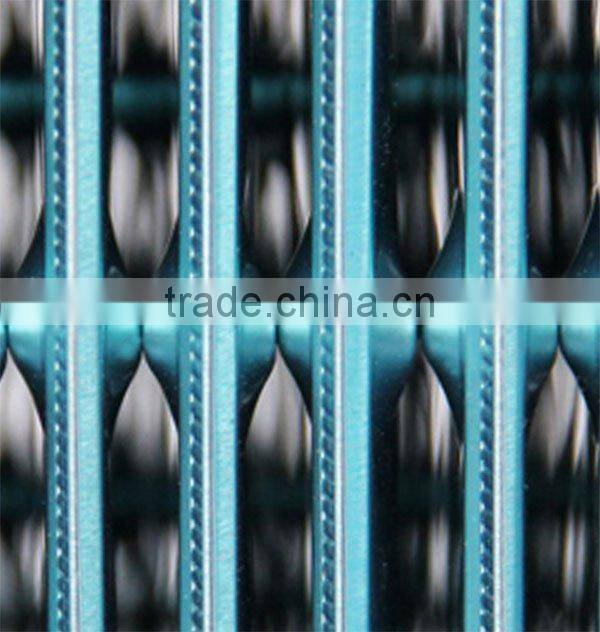

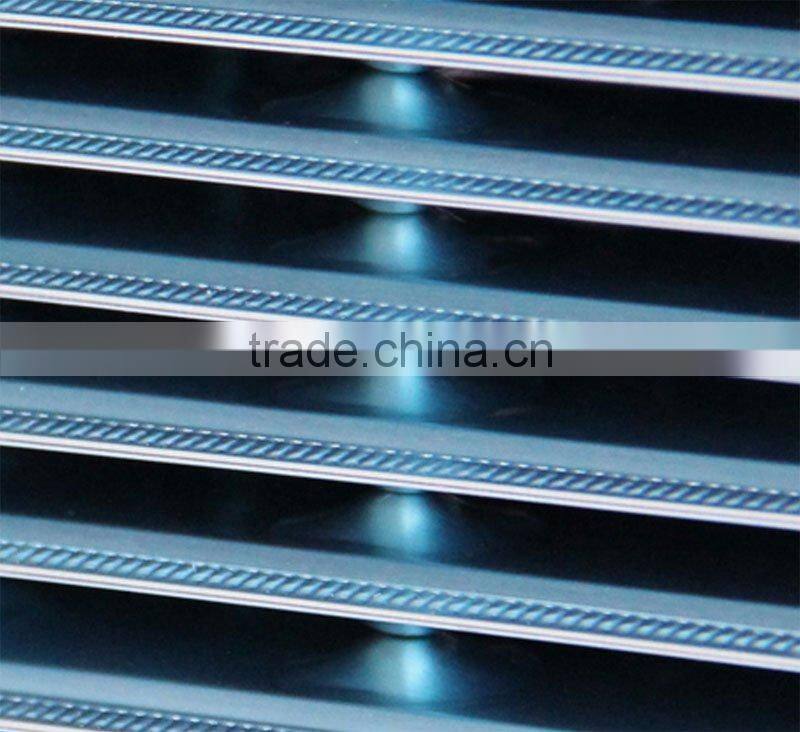

Concave&convex sheet Five layer curring
punctiform air channel

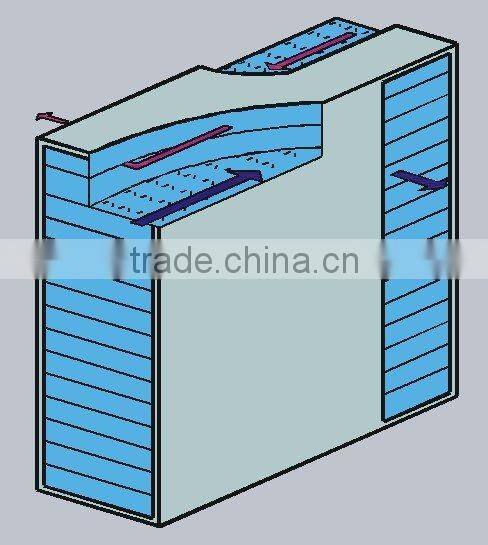

Working Principle
Two air streams from outdoor and indoor retrograde into the air channel, not only increase the
heat transfer area, but also exchange the heat energy.
Counter flow
Feature
1.Different size and superposed thickness for your choice.
2. No running components,low maintenance cost.
3. Compact structure, small volume and suitable for various occasions.
Production Technology
1. The face of heat recovery unit processed with strengthened heat transfer stamping, increased
the 10% heat transfer area.

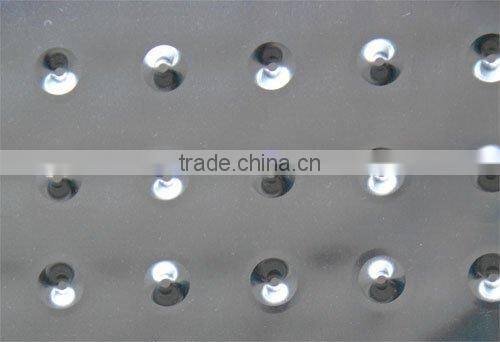

2. Adopted stamped and round convex as air channel support, guaranteed the strength and
tightness of Channel, also could bear high pressure.
3. Between outdoor air and exhaust air channel, separated by aluminium foil, entry and exit
edge processed with five layer crimping techniques, ensured the excellent air tightness.
4. All joints are airproofed by airproof glue, ensured that the heat exchanger has excellent air
tightness.
Model Range
Dimension (mm) | Plate distance (mm) | ||
A | B | C | |
On request ≤600 | On request ≤600 | On request ≤1000 |
2.0-6.0 |
Applied Range
1. Apply to obvious temperature difference and small humidity area, especially for no return air
occasion.
2. Apply to energy recovery in industry ventilation system. Such as: base station air-conditioner
system, heat exchanger for outdoor cabinet and so on.
3. Cold energy recovery in summer and heat energy recovery winter.
