Air Heat Recovery Exchage Core

It is  made of seawater corrosion resistant hydrophilic aluminum foil and galvanized sheet framwork.

Punctiform               Five-layer curring               45°angle                        90°angle

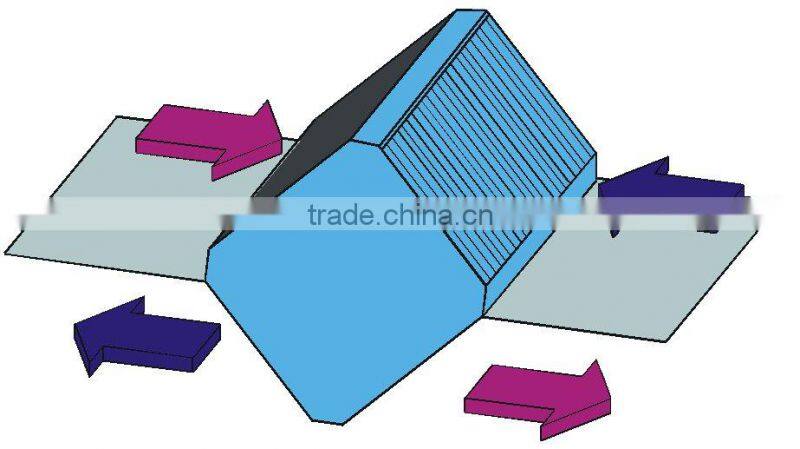

1.Working principle

  When fresh air and exhaust air pass through the heating exchanged core, fresh air got the energy from the exhaust air ,so as to achieve energy efficiency .

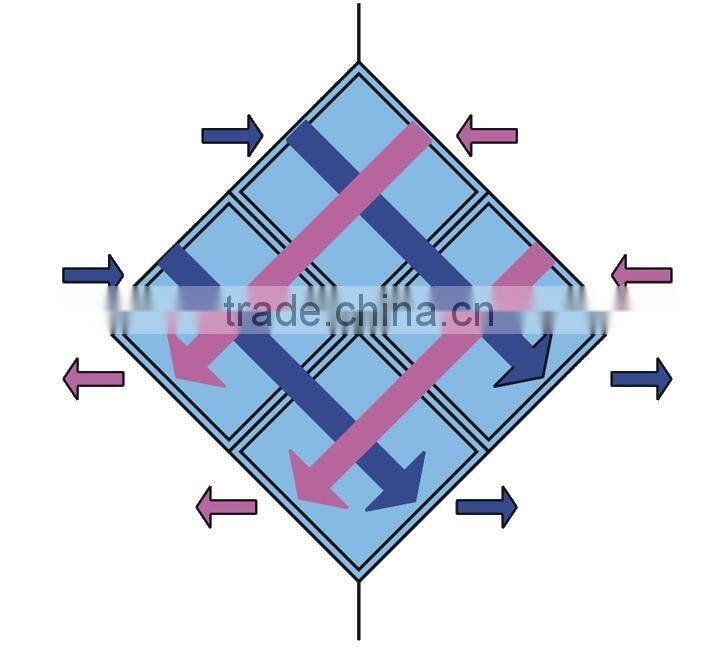

                                           Cross flow

2.Feature

  1.  No running components, and low maintenance cost.

  2. Compact structure, small volume and suitable for various occasions.

3.Production technology

  1. The face of heat exchanger process with strengthened heat transfer stamping, increased the 10% heat transfer area.

  2. Adopt stamping convex round as air passage support, guarantee the high strength and tightness of Channel, high fresh air and exhaust air bearing capability.

  3. Cross channel between outdoor air and exhaust air, separate by aluminium foil,entry edge and exit edge process with five layer crimping techniques,have higher edge intensity and more reliable seal.

  4. All joints are airproofed by airproof glue, ensure that theheat exchanger has excellent air tightness.

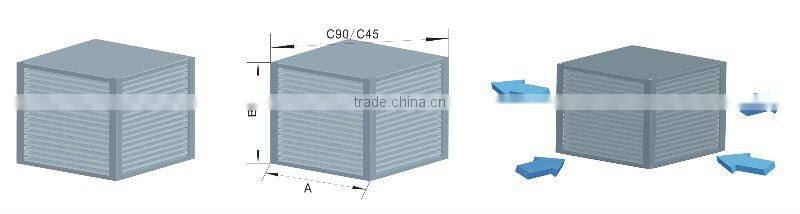

4.Model Range

Remark:

If your request products size is special ,please contract with us.

5.Applied range

  1. Cross flow heat exchangers specially suitable for big indoor and outdoor temperature difference and small humidity area, especially for no return air occasion.

  2. Apply to recover energy in room /industry/ventilation system.

Authentication

All are RoHS compliant!

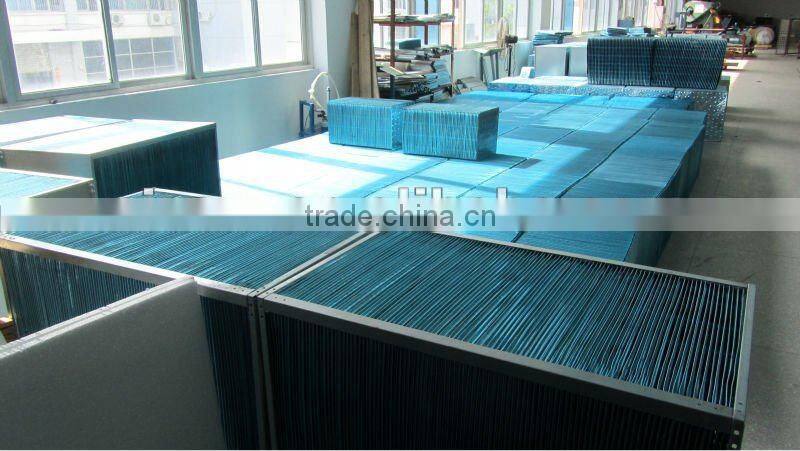

Products worshop
