Specifications
1.ISO9001:2008, ROHS2.Brand:AIR-ERV
2.Total/sensible heat exchanger
3.ERV/HRV/Outdoor cabinet core
4.Orgin:China
We have ERA,ERB,ERC,ERD 4 series heat exchanger cores.
Model | Material | Shape | Picture | Features | Usage | Picture |

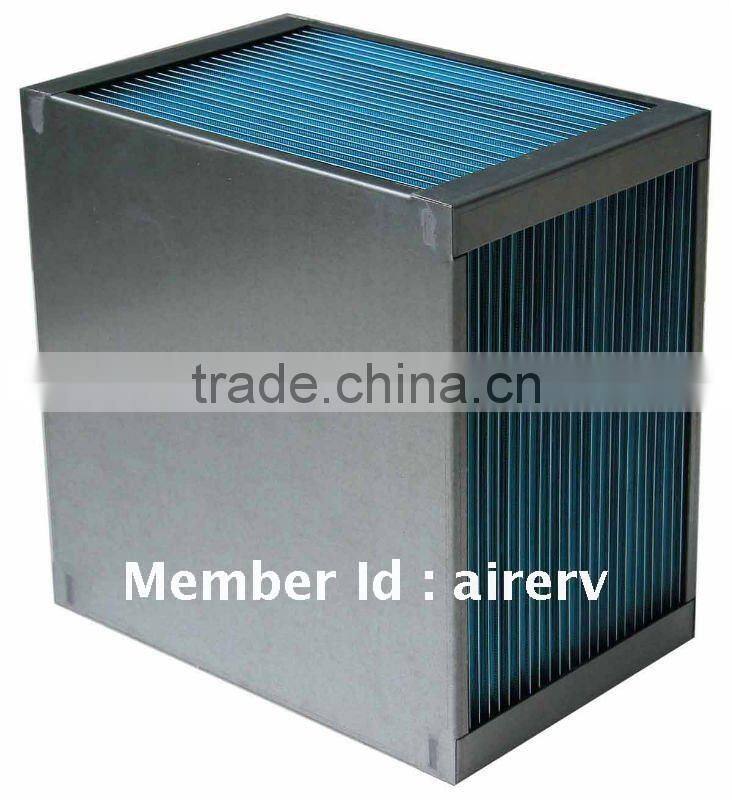

ERA | Antiseptic Hydrophilic aluminium foil and galvanized sheet | Cuboid/ Square | | Sensible heat, cross flow | For heat recovery ventilator | |
ERB | Antiseptic Hydrophilic aluminium foil and galvanized sheet | Cuboid | | Sensible heat, counter flow | For outside base station cabinet | |

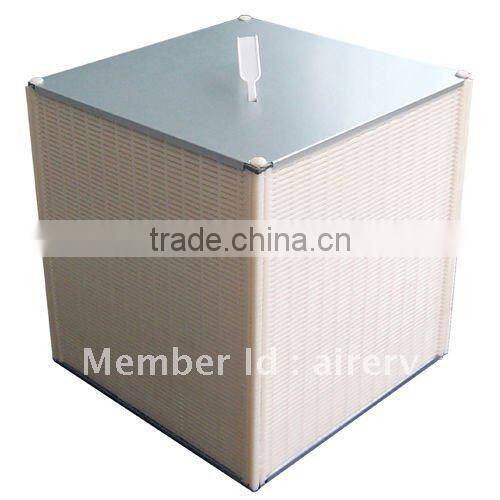

ERC | Flame-retardant and antibacterial paper and ABS Framework | Square/ Lozenge | | Total heat, cross flow | For energy recovery ventilator | |

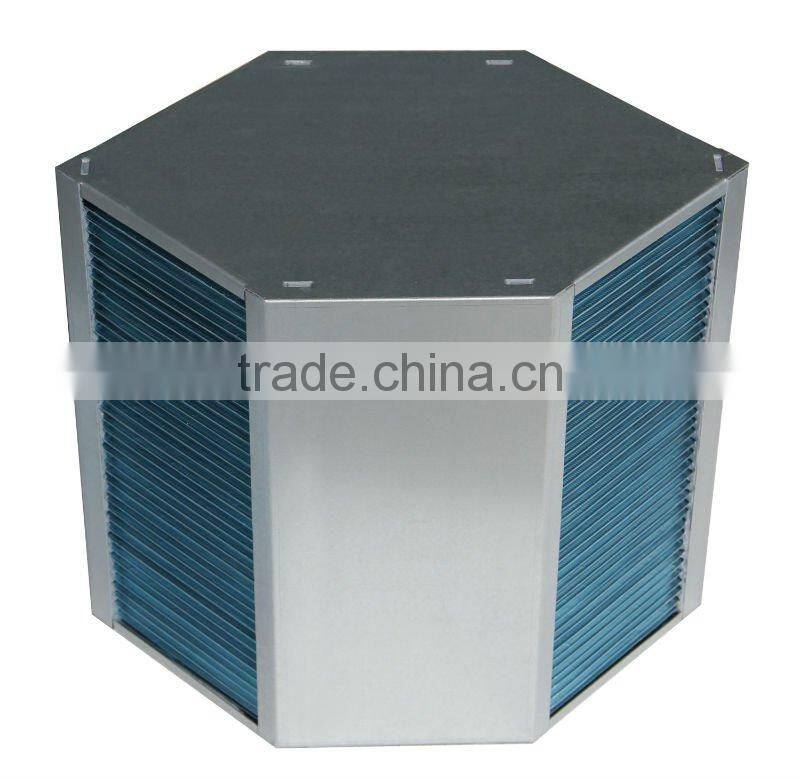

ERD | Antiseptic Hydrophilic aluminium foil and galvanized sheet | Hexagon | | Sensible heat, cross&counter flow
| For heat recovery ventilator | Non-standard products, on requested. |
ERA:
Dimension(mm) | Plate distance | ||
A1=A2 | B | C90/C45 | mm |
On request ≤600 | On request ≤1000 | On request (45°/90°) | 2.0-14.0 |
ERB
Dimension(mm) | Plate distance | ||
A | B | C | mm |
On request ≤600 | On request ≤600 | On request ≤1000 | 2.0-14.0 |
ERC
Dimension(mm) | Plate Distance (mm) | ||||
A | Paper Thickness | Paper Weight | B | C | |
163*163 | 0.06-0.062 mm | 1.062 g/pcs | ≤1000 | 230 | 2.5 |
250*250 | 2.500 g/pcs | 354 | |||
269*269 | 2.894 g/pcs |
≤ 800
| 382 | ||
315*315 | 3.969 g/pcs | 446 | |||
345*345 | 4.761 g/pcs | 488 | |||
ERD
Dimension(mm) | Plate distance | |||
A | B | C | Angle D | mm |
On request ≤1000 | On request ≤600 | On request ≤1000 | 90° | 2.0-14.0 |
Send Inquiry to This Supplier
