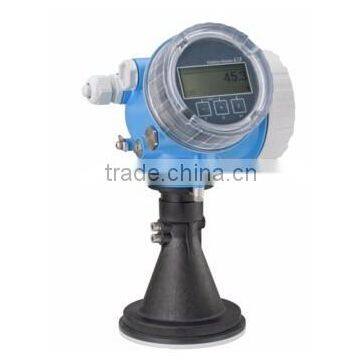

Radar Measurement Time-of-Flight Micropilot FMR56 photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Model Number:
FMR56
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Model Number FMR56

Radar measurement Time-of-Flight Micropilot FMR56



Economically efficient basis model for level measurement in solids



Product Overview




Micropilot FMR56 is particularly designed for light-duty process conditions as they occur in silos or bins for solids. Micropilot free space radar is used for continuous,
non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.



Benefits

  • Reliable measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation

  • Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)

  • Seamless integration into control or asset management systems

  • Intuitive, menu-guided operation concept (on-site or via the control system)

  • World's easiest proof test concept for SIL and WHG saves time and cost



Field of application

PP-plated horn antenna can be easily aligned to the surface of the solids by the mounting bracket or a turnable seal.

  • Process connections: Mounting bracket or slip-on flange

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: -1 to +3bar (-14.5 to +43.5psi)

  • Maximum measuring range: 30m (98ft)

  • K-band: 26GHz

  • International explosion protection certificates, 5-point linearity protocol, SIL

Technical information

Measuring PrincipleLevel radar solid
Characteristic / ApplicationFor simple applications:
Reliable non-contact level measurements in silos or storage tanks for bulk solids
Supply / Communication2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART)

FrequencyK-band (~26 GHz)
AntennaHorn DN80/3", PP plated
Horn DN100/4", PP plated
Accuracy+/- 3 mm (0.12 in)
Ambient temperature-40 °C...+80 °C
(-40 °F...+176 °F)
Process temperature-40 °C...+80 °C
(-40 °F...+176 °F)
Process pressure absolute / max. overpressure limitVacuum...3 bar
(Vacuum...43.5 psi)
Main wetted partsPP, UP
Process connectionFlange:
UNI DN80...DN150
(3"...6")
Mounting bracket
Max. measurement distance30 m (98 ft)
Output4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus

Certificates / ApprovalsATEX, FM, CSA, CSA C/US, IECEx, NEPSI, KC, INMETRO
SIL

OptionsDisplay,
Customized parameterization

SpecialitiesSafety and reliability with Multi-Echo Tracking
HistoROM
Application limitsDK < 1.6
Reduction of the max. possible measuring range through:
Media with poor reflection properties
Angle of repose
Extremely loose surfaces of bulk solids, e.g. bulk solids with low bulk weight for pneumatic filling
Build-up, above all of moist products
