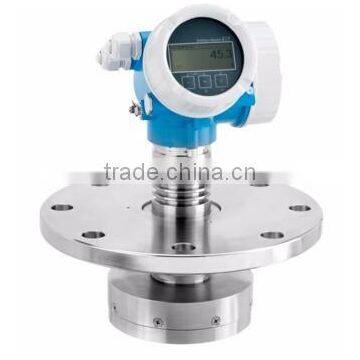

Radar Measurement Time-of-Flight Micropilot FMR54 photo-2

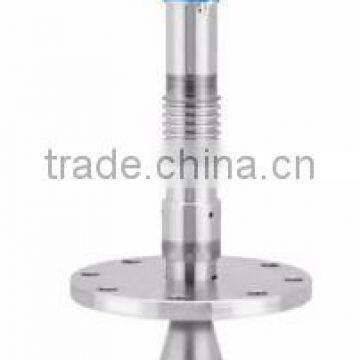

Radar Measurement Time-of-Flight Micropilot FMR54 photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Model Number:
FMR54
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Model Number FMR54

Radar measurement Time-of-Flight Micropilot FMR54



For level measurement in liquids where strong steam or ammonia can occur



Product Overview




Micropilot FMR54 is prepared for the use in high temperature and high pressure applications and with the specially designed planar antenna it is particularly suited for stilling well applications. The FMR54 free space radar is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.



Benefits

  • Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation

  • Reliable measurement even for changing product and process conditions

  • Seamless integration into control or asset management systems

  • Intuitive, menu-guided operation concept (on-site or via the control system)

  • World's easiest proof test concept for SIL and WHG saves time and cost



Field of application

Horn antenna or planar antenna which is particularly suited for stilling well applications.

  • Process connection: Flange

  • Temperature: -196 to +400°C (-76 to +752°F)

  • Pressure: -1 to +160bar (-14.5 to +2,320psi)

  • Maximum measuring range: 20m (66ft)

  •  Accuracy: ±6mm

  • C-band: 6GHz

  • International explosion protection certificates, 5-point linearity protocol, WHG overfill prevention, SIL

Technical information

Measuring PrincipleLevel radar
Characteristic / ApplicationContinuous non contact level measurement for use in high-pressure and high-temperature applications,
Horn or planar antenna
Supply / Communication2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART)

FrequencyC-band (~6 GHz)
Accuracy+/- 6 mm (0.24 in)
Ambient temperature-40...+80 °C
(-40...+176 °F)
Process temperature-60...+400°C
(-76...+752°F)
Process pressure absolute / max. overpressure limitVacuum...160 bar
(Vacuum...2320 psi)
Main wetted parts316L
Process connectionFlange:
DN80...DN300,
ASME 3"...12",
JIS 10K, 20K
Max. measurement distance20 m (65 ft)
Output4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus

Certificates / ApprovalsATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO, KC
Overfill prevention WHG
SIL
EN 10204-3.1
NACE

OptionsDisplay,
Customized parameterization
PWIS free
Gastight feed through
SpecialitiesSIL 2 according to IEC 61508,
Safety and reliability with Multi-Echo Tracking
HistoROM
Application limitsMaximum measuring range is dependent on the tank form and/or application

Free space with nozzle FMR51, FMR52, FMR53
Stilling well with ball valve:
FMR51, FMR52
Hygiene requirements:
FMR52, FMR53
316L or Alloy C non-resistant:
FMR52, FMR53
