Help CenterCat 6a UTP Cable
Related Products
Specifications
1.23 AWG conductor2.PVC, LSZH and PE options
3.Supplied in 305m boxes or 500 reel boxes

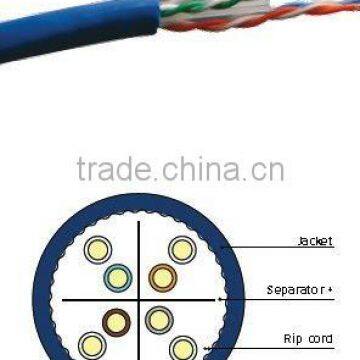

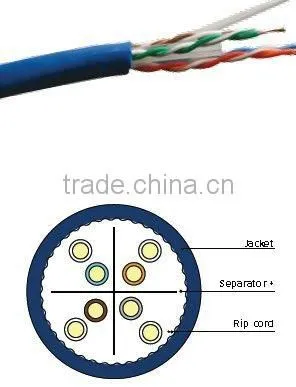

Category 6A UTP Cable
Category 6a Unshielded Twisted Pair (UTP) cable is produced using a 4 x 2 x 23 AWG copper wire structure to a class EA standard, and supports protocol’s up to 500 MHz. It is ideal for for horizontal and backbone installations.
Features
23 AWG conductor
PVC, LSZH and PE options
Supplied in 305m boxes or 500 reel boxes
Printed metre marks
Applications
Supports Category 6a networks running up to 500 MHz applications
500 MHz applications
Horizontal and backbone installations
10 Base T (IEEE 802.3)
100 Base T (IEEE 802.3U)
1000 Base T (IEEE 802.3ab)
100 VG any LAN (IEEE 802.12)
Token ring (IEEE 805.5)
ATM 155
10G Base T (IEEE 802.3an)
Conformance
Category 6a
ANSI/EIA/TIA 568B.2.1 : 2002
ISO/IEC 11801 : 2002
RoHS
Technical Specification
| construction | value | |
| Conductors | AWG | 23 |
| Size mm | 0.57 | |
| Material | Solid Bare Copper | |
| Insulators | Diameter mm | 1.01+/-0.02 |
| Material | HDPE | |
| Jacket | External O.D. | 6.9 +/- 0.30 |
| Thickness mm | 0.65 ± 0.05 | |
| Material | PVC / LSZH / PE | |
Ordering Information
| Description | Part No |
| Cat6A Unshielded Twisted Pair (UTP) 23 AWG cable PVC - 305m box | UTP6A305PVC |
| Cat6A Unshielded Twisted Pair (UTP) 23 AWG cable LSZH - 305m box | UTP6A305LSZH |
| Cat6A Solid Unshielded Twisted Pair (UTP) 23 AWG cable 305m reels | UTP 6APE |
