Specifications
1.23 AWG conductor2.PVC, LSZH and PE options
3.Supplied in 305m boxes or 500 reel boxes
Category 6 FTP Cable

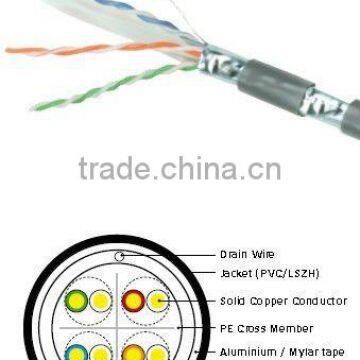

Category 6 Foiled Twisted Pair (FTP) cable is produced using 4 x 2 x 23 AWG copper to a class E standard. An aluminium tape is used to shield all 4 pairs; this gives a screened protection against external interference such as EMI. Capable of supporting protocol’s up to 250 MHz for horizontal and backbone installations.
Features
23 AWG conductor
PVC, LSZH and PE options
Supplied in 305m boxes or 500 reel boxes
Printed metre marks
Applications
Supports Category 6 (Class E) networks running up to 250 MHz applications
Backwards compatible with Category 5e distribution systems
Horizontal and backbone installations
10 Base T (IEEE 802.3)
100 Base T (IEEE 802.3U)
1000 Base T (IEEE 802.3ab)
100 VG any LAN (IEEE 802.12)
Token ring (IEEE 805.5)
Conformance
Category 6
ANSI/EIA/TIA 568B.2.1 : 2002
ISO/IEC 11801 : 2002
RoHS ,ETL/UL approved
Technical Specification
| construction | value | |
| Conductors | AWG | 23 |
| Size mm | 0.057 | |
| Material | Solid Bare Copper | |
| Insulators | Diameter mm | 1.08 +/- 0.02 |
| Material | HDPE | |
| Sheath | Material | Polyester + Aluminium Foil |
| Jacket | External O.D. | 7.4 +/- 0.3 |
| Thickness mm | 0.60 +/- 0.05 | |
| Material | PVC / LSZH / PE | |
Ordering Information
| Description | Part No |
| Category 6 Foiled Twisted Pair (FTP) 23 AWG cable PVC Grey 305m box | FTP6305PVC |
| Category 6 Foiled Twisted Pair (FTP) 23 AWG cable LSZH Violet - 305m box | FTP6305LSZH |
| Category 6 Foiled Twisted Pair (FTP) External Grade 23 AWG cable - PE black 305m box | FTP6305EXT |
