Help CenterCat 6 UTP Cable
Related Products
Specifications
1.23 AWG conductor2.PVC, LSZH and PE options
3.Supplied in 305m boxes or 500 reel boxes
Category 6 UTP Cable
Category 6 Unshielded Twisted Pair (UTP) cable is produced using 4 x 2 x 23 AWG copper wire structure to a class E standard. More than capable of supporting protocol’s up to 250 MHz for horizontal and backbone installations.
Features
23 AWG conductor
PVC, LSZH and PE options
Supplied in 305m boxes or 500 reel boxes
Printed metre marks
Applications
Supports Category 6 (Class E) networks running up to 250 MHz applications
Backwards compatible with Category 5e distribution systems
Horizontal and backbone installations
10 Base T (IEEE 802.3)
100 Base T (IEEE 802.3U)
1000 Base T (IEEE 802.3ab)
100 VG any LAN (IEEE 802.12)
Token ring (IEEE 805.5)
Conformance
Category 6
ANSI/EIA/TIA 568B.2.1 : 2002
ISO/IEC 11801 : 2002
RoHS ,ETL/UL approved

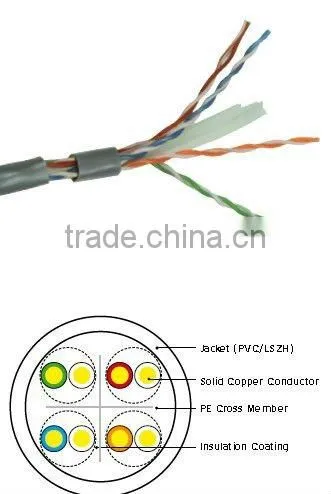

Technical Specification
| construction | value | |
| Conductors | AWG | 23 |
| Size mm | 0.0565 | |
| Material | Solid Bare Copper | |
| Insulators | Diameter mm | 1.03+/-0.02 |
| Material | HDPE | |
| Jacket | External O.D. | 6.0 +/- 0.20 |
| Thickness mm | 0.55 | |
| Material | PVC / LSZH / PE | |
Ordering Information
| Description | Part No |
| Cat6 Unshielded Twisted Pair (UTP) 23 AWG cable PVC Grey - 305m box | UTP6305PVC |
| Cat6 Unshielded Twisted Pair (UTP) 23 AWG cable LSZH Violet - 305m box | UTP6305LSZH |
| Cat6 solid Unshielded Twisted Pair 23 AWG cable LSZH Grey - 500m reel boxes | UTP 6500LSZH/GRY |
| Cat6 Unshielded Twisted Pair (UTP) External Grade 23 AWG cable - PE black 305m box | UTP6305EXT |
