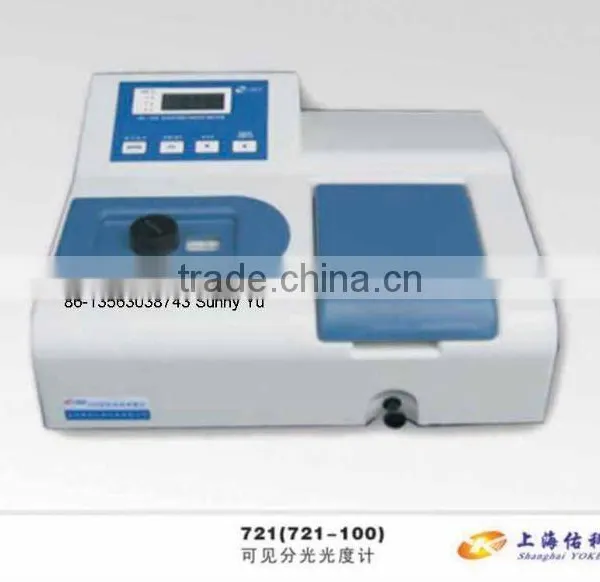

UV/VIS Spectrophotometer

UV/VIS Spectrophotometer photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YOKE
Model Number:
721
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name YOKE
Model Number 721
Size 520 x 450mm x 350mm
Weight 8kg
Wavelength Range 360-1000nm
Measurement Range 0-199.0%T, 0-1.999A, 0-1999C

Specifications

1.Simple,clear keyboard operation
2.High Quality, On time delivery



Specifications

Wavelength Range360~1000nm
Wavelength Accuracy± 2nm
Wavelength Repeatability1nm
Photometric Range0.0-199.9%T
-0.3-2.999A
1~9999F
0~9999C
Spectral Slit Width6 nm
Display Mode4 digit(LED)
Transmittance Accuracy± 0.5%T
Transmittance Repeatability0.3%T
Stray Radiant Energy< 0.2%T (NaNO2)
Power Supply110/220V ± 10%
Weight8kgs



Intrduction



The model is a simple single beam spectrophotometer. The wavelength is set manually from the dial on the front panel. Direct readout of Transmission or Absorption shows on the LED display. Measured values can be transferred to a PC via the RS232 link for further analysis. Low price and simple design make this ideal tool for education or routine analysis.
