Compressed Air Dryer

Specifications

Compressed Air Dryer
desiccant air dryer
industrial hot air dryer
Desiccant Dryer
Air Dryer

Desiccant dryers are also known as Regenerative Desiccant Dryers and Twin Tower Dryers.
The compressed air is passed through a pressure vessel filled with an absorbent
media such as activated alumina, silica gel, molecular sieve or other desiccant
material. The desiccant adsorbs the moisture in its millions of pores, trapping
it. The desiccant can bring the dew point of water vapor in the compressed air
down to -40 degrees C or below

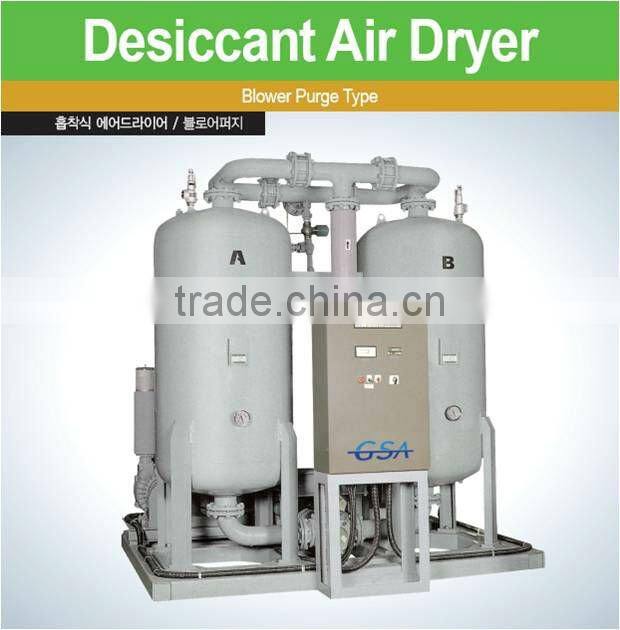

Blower purge is a type of externally
heated compressed air dryer. The blower purge takes atmosphere air in through a
blower. The air is heated to between 120 degrees C to 260 degrees C and
channeled to the wet tower. The hot air drives the moisture off the desiccant.

Features & Benefits

• Flow range of 147-8830 scfm (4.16-250 m³/min.)

• 8 hour cycle (4 hours online and 4 hours offline)

• Tower pressure relief valves.

• Purge adjustment valve to control purge flow.

• Purge exhaust mufflers for quiet operation.

• Tower pressure gauges

• Adjustable microprocessor sequence module.

• Controlled repressurization

• Fail-safe design : failure of power and/or pilot air causes the purge
  exhaust valves to close

• Desiccant fill and drain ports for ease of desiccant replacement

• Tower operating status lights

• ON/OFF switch and power ON light

• Standard designs deliver -40 degrees C pressure dew point

• -70 degrees C pressure dew point option available

• Dew point monitor, optional

• Pre-piped filters and by-pass valve packages, optional

Custom
designs and electrical configurations, optional

Blower purge is a type of externally heated compressed air dryer. The blower purge takes atmosphere air in through a blower. The air is heated to between 120 degrees C to 260 degrees C and channeled to the wet tower. The hot air drives the moisture off the desiccant.

Features & Benefits

• Flow range of 147-8830 scfm (4.16-250 m³/min.)
• 8 hour cycle (4 hours online and 4 hours offline)
• Tower pressure relief valves.
• Purge adjustment valve to control purge flow.
• Purge exhaust mufflers for quiet operation.
• Tower pressure gauges
• Adjustable microprocessor sequence module.
• Controlled repressurization
• Fail-safe design : failure of power and/or pilot air causes the purge exhaust valves to close
• Desiccant fill and drain ports for ease of desiccant replacement
• Tower operating status lights
• ON/OFF switch and power ON light
• Standard designs deliver -40 degrees C pressure dew point
• -70 degrees C pressure dew point option available
• Dew point monitor, optional
• Pre-piped filters and by-pass valve packages, optional

Custom designs and electrical configurations, optional
