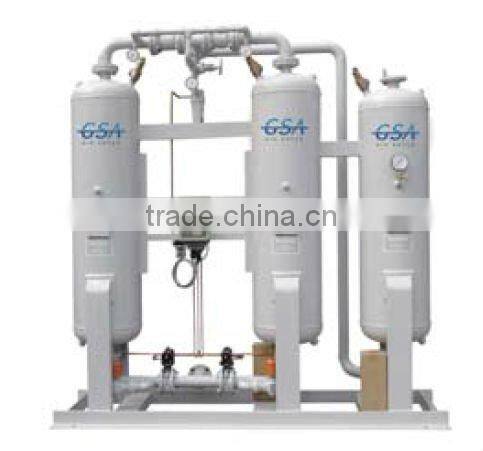

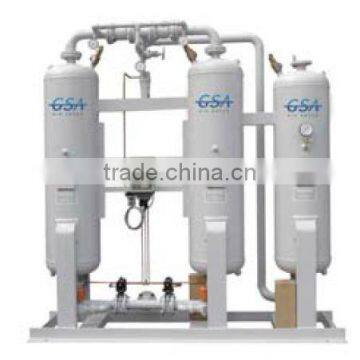

Desiccant dryers are also known as Regenerative Desiccant Dryers and Twin Tower Dryers.
The compressed air is passed through a pressure vessel filled with an absorbent
media such as activated alumina, silica gel, molecular sieve or other desiccant
material. The desiccant adsorbs the moisture in its millions of pores, trapping
it. The desiccant can bring the dew point of water vapor in the compressed air
down to -40 degrees C or below.
The lubricant entrained in the
compressed air from a standard rotary screw compressor is 2~3 ppm. GSA POM
series heatless desiccant air dryers reduce the lubricant entrained in the
compressed air to 0.01 ppm.
Features & Benefits
- Reduce the lubricant entrained in the compressed air to 0.01 ppm
- Flow range of 35-3991 scfm (1-113 m3/min.)
- 6~10 minute cycle (5 minutes online and 3~5 minutes regenerating)
- Tower pressure relief valves.
- Purge adjustment valve to control purge flow.
- Purge exhaust mufflers for quiet operation.
- Tower pressure gauges
- Adjustable (5&10 min.) microprocessor sequence module.
- Controlled repressurization
- Fail-safe design : failure of power and/or pilot air causes the purge
exhaust valves to close
- Desiccant fill and drain ports for ease of desiccant replacement
- Tower operating status lights
- ON/OFF switch and power ON light
- Standard designs deliver -40 degrees C pressure dew point
- -70 degrees C pressure dew point option available
- Dew point monitor, optional
- Pre-piped filters and by-pass valve packages, optional
Custom
designs and electrical configurations, optional
The lubricant entrained in the compressed air from a standard rotary screw compressor is 2~3 ppm. GSA POM series heatless desiccant air dryers reduce the lubricant entrained in the compressed air to 0.01 ppm.
Features & Benefits
- Reduce the lubricant entrained in the compressed air to 0.01 ppm
- Flow range of 35-3991 scfm (1-113 m3/min.)
- 6~10 minute cycle (5 minutes online and 3~5 minutes regenerating)
- Tower pressure relief valves.
- Purge adjustment valve to control purge flow.
- Purge exhaust mufflers for quiet operation.
- Tower pressure gauges
- Adjustable (5&10 min.) microprocessor sequence module.
- Controlled repressurization
- Fail-safe design : failure of power and/or pilot air causes the purge exhaust valves to close
- Desiccant fill and drain ports for ease of desiccant replacement
- Tower operating status lights
- ON/OFF switch and power ON light
- Standard designs deliver -40 degrees C pressure dew point
- -70 degrees C pressure dew point option available
- Dew point monitor, optional
- Pre-piped filters and by-pass valve packages, optional
Custom designs and electrical configurations, optional
