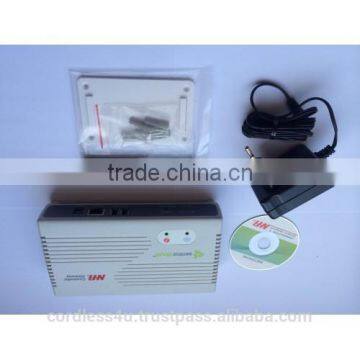

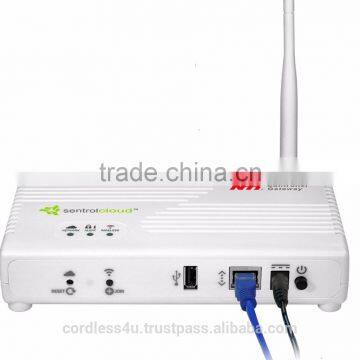

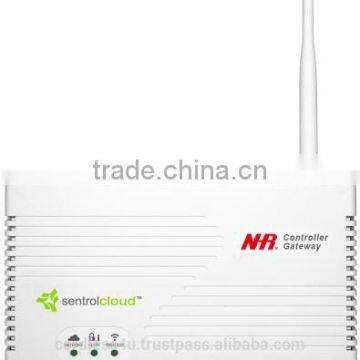

G07 Zigbee Ethernet Wi-Fi 3G Gateway Controller
ZigBee / Ethernet / Wi-Fi / 3G Gateway Controller
ZigBee HA profile compliant
Range 500m (line of sight)
12V DC powered via AC-DC adapter
Constantly monitoring and controlling local devices even when not connected to the Internet

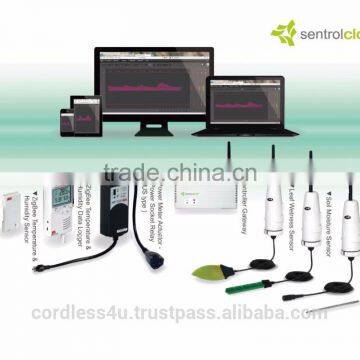

The G07 Gateway acts as a central data receiver and controller in a network of different ZigBee devices and products by connecting to a host computer or internet via Ethernet cable, WiFi, 3G dongle. Although specifically designed to control NHR’s Complete Agricultural Solution, the G07 is also suitable for home/building automation (ZigBee HA Profile), Industrial control and monitoring, lower power wireless sensor networks & consumer Electronic Applications. This gateway can support up to 50 end devices, 40 sensors and 10 relays, creating a large and comprehensive Mesh Network which can be controlled via Nietzsche’s Sentrol Cloud application.
Features:
1. Aggregate sensors and upload all data into cloud database via wireless technology
2. Stores logics pre-defined by user and sends commands to control output units
3. Zero Data Loss function
4. Wireless transmission distance is 500 meters in open space
5. Back-up battery for sudden power disconnection (Optional)
6. Bluetooth 4.0 wireless aggregator for aggregating data from Bluetooth 4.0 devices (Optional)
Wireless Protocol | Compliant IEEE 802.15.4, ZigBee2007 / PRO HA Profile |
| Operating Frequency | 2.4GHz ISM band |
| Network Topology | Star / Tree / Mesh |
| Transmission Range | 500m (1640ft) line of sight |
| RF Output Power | 18dBm |
Host / Internet connection | Ethernet, WiFi, 3G |
Internet Functions | Supports PPPoE/DHCP/Static IP Web Setting |
Nodes Capacity | Manage 40 sensors, 10 actuators simultaneously |
Security Mechanism | AES128Bit Encryption |
Memory & Zero Data Loss Data Logging Function | Built-in 1G flash memory stores data when disconnected from cloud database |
Logics Reservation & Control Actuators | Download logics from cloud database pre-defined by user. Continually aggregating data and sends commands to control actuators according to reserved logic |
| Power Supply | 12VDC (Package includes 100V ~ 240VAC power adaptor) |
| Operating Environment | -10°C ~ +60°C, < 80% relative humidity |
Environment & Safety Compliances | RoHS, CE, FCC (Pending) |
Connectors | RJ45 for Ethernet; USB for 3G dongle, software upgrade & 1-wire sensor, DC jack for power supply; SMA connector for ZigBee external antenna |
LED Indicators | Cloud; ZigBee |
| Dimensions | 189(L) x 175(W) x 35(H) mm (Includes Antenna) |
| Weight | 354g / 12.48oz (Includes Adaptor) |
1 Year Warranty. Original Made in Taiwan
