S07 ZigBee Wireless Low Temperature and Humidity Sensor / Tag
S07-TH Sensor
S07-TG Tag - Data Logger

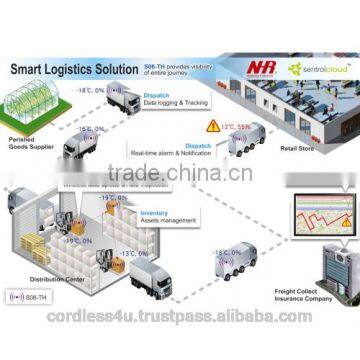

For Logistics Quality Parameters Tracking
S07: the Low Temperature sensor (tag) is a small and easy-to-install temperature sensor that provides accurate and reliable data of temperatures ranging from -20C to 50C. S07 is an product for monitoring of frozen, chilled and hot food storage displays used in all retail areas of supermarket chains, service stations, or any temperature / humidity control needed area. Since the working environment for cold chain could be humid, therefore, S07 has certified IP66 waterproof & dust tight by SGS lab.
Features:
1. Ultra miniature size - Coin size
2. Wireless ZigBee Data Transmission
3. High Precision temperature and humidity sensor and logger for 12,000 readings
4. Certified IP66 waterproof & dust tight by SGS laboratory

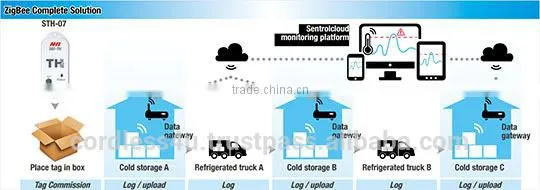

5. Inteoperable with Sentrocloud for constant datacollection, out-limit alarm and automated environment control
| Sensing Type | Temperature and humidity |
Sensing Range |
Temperature: -20C to 50C (-4F to 122F) |
| Measurement Accuracy | ± 0.5C/ 4.5% RH |
Wireless Protocol |
IEEE 802.15.4 ZigBee2007/PRO HA Profile |
Transmission Range |
100 meters / 328 feet (Free space) |
Operating Frequency
|
2.4GHz ISM Band |
Ingress Protection |
IP66 grade waterproof & dust tight protection |
| Power Supply | ER14335 type battery *1 |
| Battery Life | 18 months based on sending data per 5 minutes |
Transmit Interval |
Set by TagView (10 seconds – 24 hours) |
Network Topology |
Star / Tree / Mesh |
Data Logger Memory |
12,000 readings for both temperature & humidity |
Certifications |
CE / FCC |
| Data Receiving Interface | DataView for sensor, TagView for tag |
| Dimensions | 22 *26.5 *66.6 mm |
Weight |
30 g |
1 Year Warranty. Original Made in Taiwan
