WZB-SPM05 ZigBee Wireless PIR Motion Detector

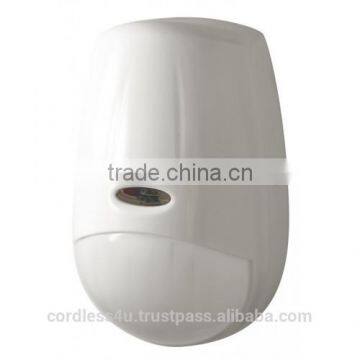

The WZB-SPM05 is a easy to use ZigBee PIR Motion Sensor. The motion detector can be quickly integrated into your home automation system for security or light control. The WZB-SPM05 functions as an end device and is compliant with ZigBee HA Profile which allows you to easily join the motion detector with other routers and coordinators. The Pet-Immunity helps you to avoid false alarms from pets that cross the sensing area of the motion detector.
Features:
1. Battery powered no external power source needed
2. Detects Motion within 9m range
3. Pet-Immunity will avoid false alarms
4. Power saving mode for a longer battery life
5. ZigBee HA Profile Compliant
| Sensing Type | PIR motion sensor |
| Sensing Range | 9 m |
| Installation height | 2.0 to 2.5 m |
| pet-immunity | Pet is smaller than 15 kg |
| Transmitting Protocol | UART : Modbus RTU / ZigBee: HA profile |
| Wireless Protocol | IEEE 802.15.4, ZigBee2007/ PRO |
| Transmission Range | 100 meters / 328 feet (line of sight) |
| Operating Frequency | 2.4 GHz ISM Band |
| RF Output Power | 1mW/ 0dBm |
| Receiver Sensitivity | -92dBm |
| Power Supply | 3V 1 x CR123A battery |
| Power Consumption | TX : 35mA Sleep:1.3uA |
| Power-saver mode | Alarm interval every 3 mins. (default) |
| Battery Life | 1 year based on sending data 25 times@day. |
| Network Topology | Star/ Tree/ Mesh |
| Operating Environment | -10 ~ +50 °C/ +14 ~ +122 ºF, 0~75% RH |
| Dimensions | 95 (L) x 64 (W) x 49 (H) mm |
| Weight | 92g/ 3.25oz w/ battery |
1 Year Warranty. Original Made in Taiwan
R&R GROUP INTERNATIONAL
Taipei Taiwan, Hong Kong, Dubai UAE
