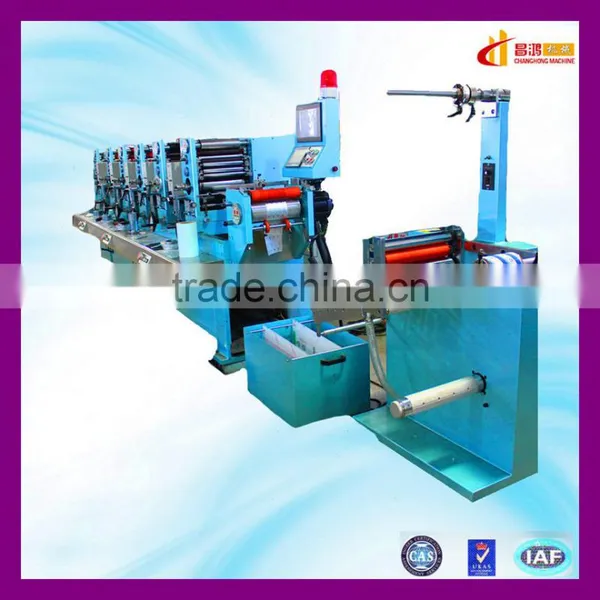

CH-280 multiple color intermittent letterpress machine to print roll stickers
1. Specifications:
| Property | CH-280 | CH-300 | CH-320 |
| max web size | 280mm | 300mm | 320mm |
| rotary printing area | 265*326mm | 275*326mm | 300*326mm |
| max intermittent printing area | 260*280mm | 275*280mm | 300*280mm |
| min intermittent printing area | 70*30mm | 70*30mm | 70*30mm |
| printing speed(times/hour) | 12000 | 12000 | 12000 |
| max unwinding diameter | 700mm | 700mm | 700mm |
| max rewinding diameter | 700mm | 700mm | 700mm |
| UV dirver power | 4.8kw | 4.8kw | 4.8kw |
| voltage | 380v | 380v | 380v |
| machine dimension(L*W*H/mm) | 4900*1620*1500 | 4900*1620*1500 | 4900*1620*1500 |
| machine weight | 5000kg | 5500kg | 5500kg |
| packing size | 20CBM | 25CBM |
25CBM |
2. Fetures:
1). Computer controlled ink supply system can spread ink steadily.
2). Complete and high quality function at printing, laminating and waste discharge at one time.
3). Imported Japanese YASKAWA servo system, machine can run smoothly without worn out.
4). High speed and accurate register, with high stability during accelerating and decelerating.
5). Low backlash design, high precise gear and low noise.
6). UV dryer holder can automatichly switch power.
7). High speed german electrical photocell sensor to ensure high quality on secondary
printing, reduce printing waste.
8). Max intemittent printing dimension is 280mm, minimum dimension is 30mm.
3. Standard Configuration:
| UV machine | 6 groups |
| UV electricl controlling case | 1 set |
| main power transformer | 1 set |
| pasting machine | 1 set |
| cylinder | 12 pieces |
| UV rubbers | 6 groups |
| ink sink | 6 pieces |
| feeding box | 1 piece |
| rewinding box | 1 piece |
| driver | 8 sets |
main Servo motor (4.4kw * 2 pieces +1.3kw*6 pieces) | 8 sets |
| ink Servo motor | 6 sets(0.75kw) |
| intermittent Servo motor | 1 set(4.4kw) |
| feeding machine | 1 set |
| rewinding machine | 1 set |
| standard tools | 1 set |
4. Application:
Our products are suitable for label area of electronics, food, garment, chemical, toy, supermarket bar code industries...etc.
Our products are all packed with strong fumigated wooden case with film and canvas cover and strong container, all examed by 3 groups of inspection teams before packing. It usually takes about 30-40 days to delivery, we will give you every detail to assure you our delivery process.
Payment Terms | T/T, L/C, Western Union, Money Gram, Cash |
| Supply Ability | 10 sets/month |
| Delivery Time | 30-40 days |
| FOB Port | Shenzhen |
1. Factory:
We have 3 floors of total over 3000 square meters factory, first floor is assembly workshop, second floor is manufacturing workshop, third floor is storage.
2. Office:
We have both experience international and domestic sales team, Design apartment, Production apartment, QC apartment and HR apartment.
3. Our certificates:
Our products highly meeting CNCA's requirements of ISO9001:2008
4. Our Team:
We are a family of 50 young and experienced members, we truth-seeking for high quality and low cost; put customers first; learn for respecting and love.
5. Contact us:
Harick Zhong (sales manager)
Skype: live:zhq_20
Wechat: harick86
Cell Phone: 86-158 1863 1840
Office Phone: 86-755-2898 6010
Fax: 86-755-2898 6853
Website: http://cnchlm.en.china.cn
/
