Dongfeng 5CBM fire fighting vehicle
Our company are professional manufacturer in fire fighting truck area, guarantee all goods Brand-New and China-Origined. we can provide various configurations trucks with best prices and best quality.
1.Type:water tanker fire fighting truck, foam tanker fire fighting truck, emergency rescue fire fighting truck, command and communication fire fighting truck, etc;
2.Drive model:4*2, 4*4, 6*4;
3.Capacity:3-15CBM;
4.Tank material:carbon steel, stainless steel,etc;
5.Cab:single row or double rows , left hand drive/right hand drive, with A/C;
6. Fire pumps: middle pressure pump,low pressure pump,high pressure pump, ordinary pressure pump,etc;
7.Other descriptions:equipment box with 5-9 curtain doors,truck body with stoving varnish, 1100-1600mm alarm lamp,the truck can be equiped with all kinds of fire fighting equipment.
fire fighting vehicle technical parameters
Technical parameters of Mini fire truck:
1.Chassis
Model:EQ1032N51DJ3
Manufacturer:Dongfeng automobile Co.,Ltd
2.Engine
Model:CY4100ZLQ straight four cylinder,water cooling,diesel engine
Power:70kW(3000r/min)
Torque:290N·m(1200~1400r/min)
3.Drive system:4×2
4.Wheelbase:3300mm
5.Max.speed: 90km/h
6.Overall dimension(L×W×H):6200mm×2400 mm×2850 mm
7.Tank capacity:water 3000kg(Water tank volume:3000L)
8.Fire pump
Model:CB10/20
Flow:Normal pressure 20L/s
Pressure:normal pressure 1.0MPa
Water intake time:≤30s(suction height 7m)
9.Fire monitor
Model:PS20
Pressure:0.8~1.0MPa
Hydraulic pump flow:20L/S
Range:≥40m
Rotation angle:horizontal 360°,cabrage 30°~80°
Mini Fire Truck Vehicle structure
1.Cab
structure:Double cab,four open door,all steel frame welded structure
Seat:front row 2 people,back row 4 people
Equipment:100 walarm,rotary lamp switch,PTO control switch,indicator light,radio power line of pile head
2.Tank
Material:High grade carbon steel,anti-corrosion
Structure:Steel plate welded,with anti swing plate
Equipment:1unit inlet opening,with fast locking and opening equipped
1unit overflow valve device
1unit fluid level gage
1unit drain outlet,hand valve control
3.Fire pump install type:mid mounted
Fire fighting vehicle spare parts(see as below)
No. |
Name |
Specification |
Unit |
Qty. |
Remark |
1 |
suction pipe |
Φ100×2000mm |
pcs |
4 |
|
2 |
water filter |
FLF100 |
pcs |
1 |
|
3 |
water trap |
FFS80 |
pcs |
1 |
|
4 |
fire belt 13# |
Φ65×20m |
pcs |
3 |
|
5 |
fire belt 13# |
Φ80×20m |
pcs |
3 |
|
6 |
adapter |
Φ80/Φ65 |
pcs |
1 |
|
7 |
hose bandage |
FP470 |
pcs |
4 |
|
8 |
hose bridge |
FH80 |
pcs |
1 |
|
9 |
hose strap |
FG600 |
pcs |
4 |
|
10 |
ground fire hydrant wrench |
FB450 |
pcs |
1 |
|
11 |
underground hydrant wrench |
FBA800 |
pcs |
1 |
|
12 |
suction wrench |
FS100 |
pcs |
2 |
|
13 |
dry powder extinguisher |
MFZ2 |
pcs |
1 |
|
14 |
DC switching gun |
QZG19 |
pcs |
1 |
|
15 |
Multifunctional blossom water |
QZW65 |
pcs |
1 |
|
16 |
a fireman's axe |
GFP890 |
pcs |
1 |
|
17 |
spade |
2# |
pcs |
1 |
|
18 |
Iron collar |
GT06 |
pcs |
1 |
|
19 |
pick hammer |
4kg |
pcs |
1 |
optional |
20 |
the original car tools and accessories |
|
pcs |
1 |
See instructions |

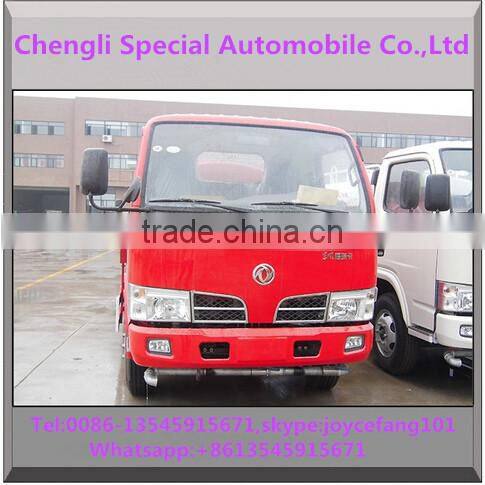

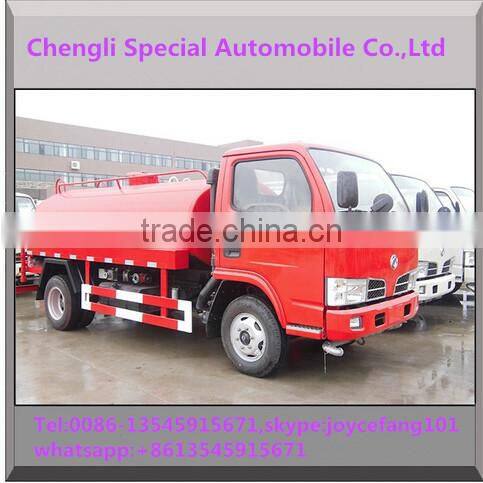

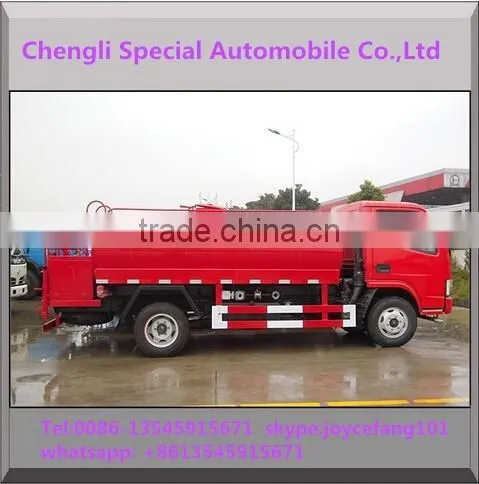

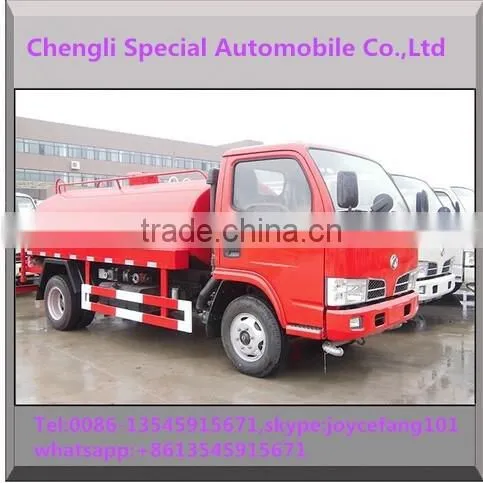

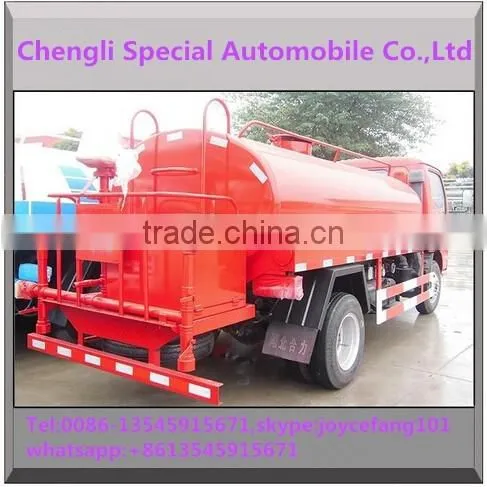

Fire fighting truck Picture Show :
If you need fire trucks, please contact me :
