Fuel Tank,Fuel Tank Truck Manufacture

Item

unit

parameter

Vehicle model

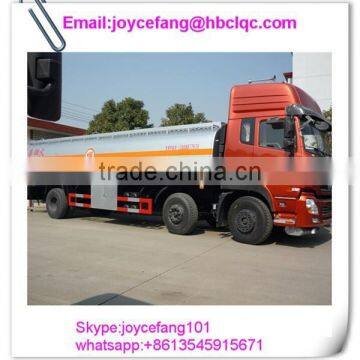

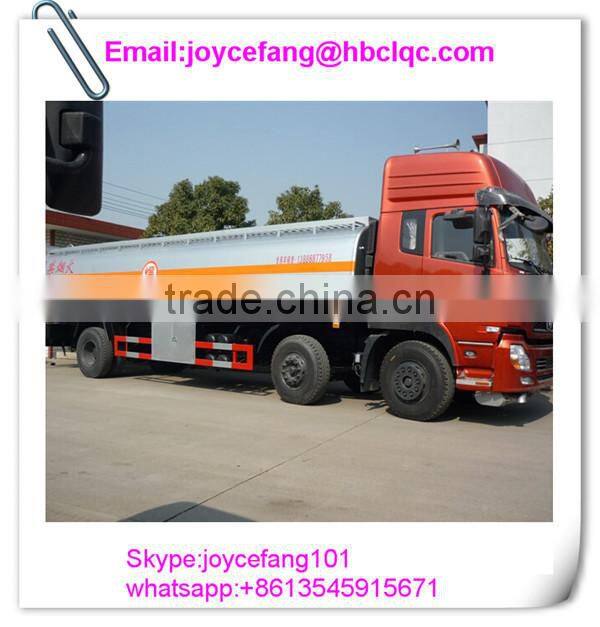

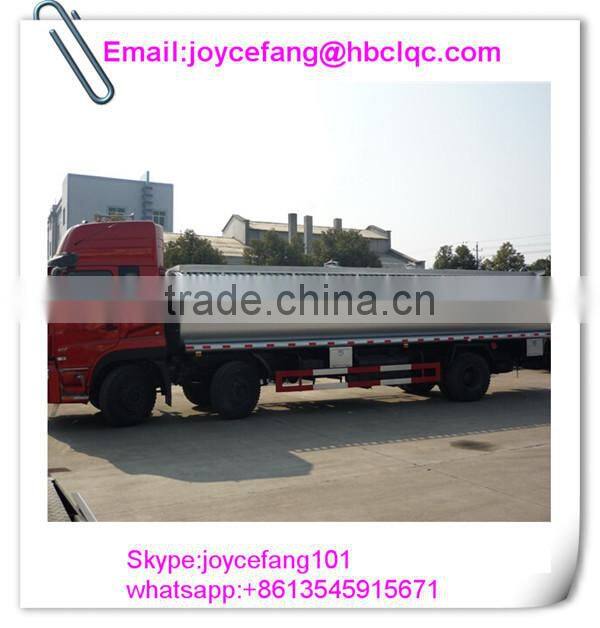

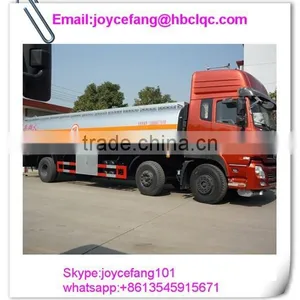

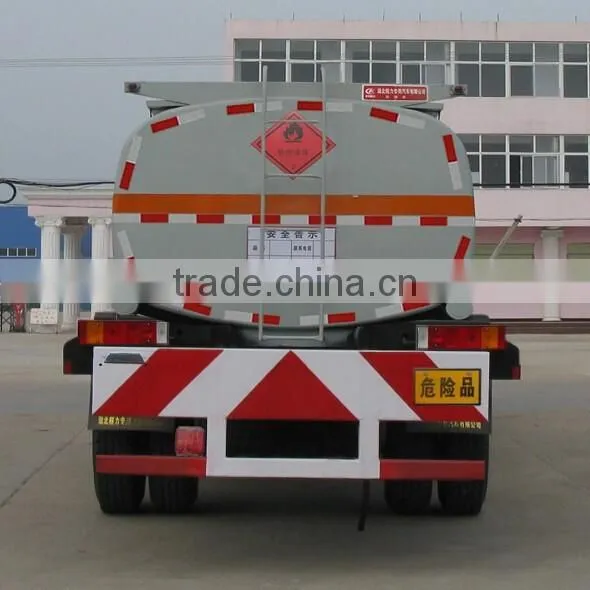

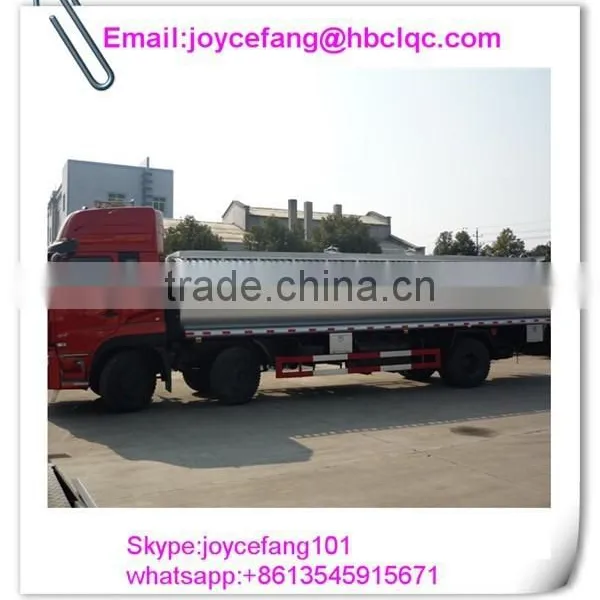

CLW5220GYY Fuel Tanker

Chassis model

EQ1208Gj5

Overall dimensions

mm

11200×2495×2930

Fact cubage

L

16500-20000

GVW

kg

Appro×25000

Rated loading capacity

Appro×14000

Mass in working order

Appro×10805

Body internal dimensions

mm

8000×2100×1600

Wheel base

5350+1300

F/R track base

1940/1860

Approach/departure angle

°

32/14

Exhaust/hp

ml/kw

5880/155

Max speed

km/h

90

Tire specification

10.00R20

Engine type

EQB210-20

Traction system

6×4

transmission

6-speed with over drive

Number of axles

3

Electric system

24v

Operation control  system

Electrically hydraulic control

Allowable passengers in cab

3

Equipment

Meterial:5mm carbon steel.can choose flow meter, tankerpiston and bobbin disk

Tank can be separated to several unattached small tanks to fill different fuels

Engine

DongFeng Cummins Environmental Protection,supercharge,diesel engine

Production cycle

7-10days

Warranty

12 month,from the date of supply
