Home > Transportation > Specialized Vehicle > Refrigerated Truck > Dongfeng Freezer Food Transport Box Truck 3-5Tons

Dongfeng Freezer Food Transport Box Truck 3-5Tons

Dongfeng Freezer Food Transport Box Truck 3-5Tons photo-1
US$ 8,500 - 9,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dongfeng Xiaobawang
Model:
SB0012-32
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Dongfeng Xiaobawang
Model SB0012-32
Place of Origin China
Transmission Type Manual
Condition New
Emission Standard Euro 3
Fuel Type Diesel
Dimensions (L x W x H) (mm) 3910*1510*2160
Box Dimensions (L x W x H) (mm) 2190*1370*1270
Temperature Range -20~0
Gross Vehicle Weight 2336

Dongfeng FRK Freezer Food Transport Box Truck 3-5Tons

mini refrigerator truck

gasoline engine engine

loading capacity 3-5t

Products Technical Specification
Brand & SeriesDongfeng/DFAC 4*2   RHD ice box truck/cooling box truck
Fuel typeDiesel
Emission StandardEuro 3 Optional Euro 1,2,4,5
CabinDLK,Single row
Overall dimensions (L×W×H)5995*2020*3000mm
G.V.W6495kg
Curb weight (chassis)3500kg
Loading capacity3000kg-5000kg
Engine & Chassis
Engine modelCY4102-C3F
Maximum power70kw/95hp
Displacement3856
Number of cylinders4
Engine ManufacturerDongfeng Chaoyang Diesel Engine Co., Ltd.
Gear box5 forward gears & 1 reverse
Drive Axle3T
Brake systemAir braking
Steering wheelLeft / Right hand drive
Electric device24V
Tyres & QuantityFactory Standard 7.00-16 & 6+1(Spare tire)Optional 6.50-16,7.00R16,6.50R16
Cooling box Description
Cooling box dimensions (L×W×H)4000*1850*1800mm
Cooling box Volume8m³-15m³
Cooling box materialFRP inside & outside of the van, polyurethane as the insulation
Cooling box thickness800 mm Optional 100mm
Back DoorHinged door
Side doorOptional
Refrigeration systemsEquipped with DT-230,South korean Hanya Brand
Temperature RangeNormal temperature 35°C,refrigeration temperature reached -18°C to 0°C Optional -10°C to 0°C,-18°C to 5°C ,-20 to 30°C,etc
OthersStainless Steel door frame,Stainless steel corrugated floor, Mark lamp at the four (4) corners f the body,Room lamp will be provided inside the cabin.
Refrigeration unit Parameters, Please contact Joyce by Tel 0086-13545915671
Optional Configuration (√:Standard Equipment o:Optional ×:Not Available)
A/Co
Power Steering
Side bumper
Rear bumpe
Wind deflector
Radial tireo
Ventilation slotso
Standby powero

1.Van Material: Color plate inside,FRP outside of the van,polyurethane foam middle.stainless steel, Q235 steel sheet or aluminum are all optional.

2.Refrigerators chosen brand from: South korean Hanya, HuaSu;American Thermoking, USA Carrier;Chinese HANXUE, Kingbo, etc.

3.Other spares like hooks, bottom slot, shelves,extra doors, etc. are all optional.

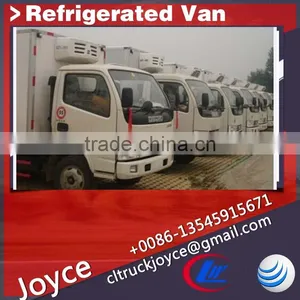

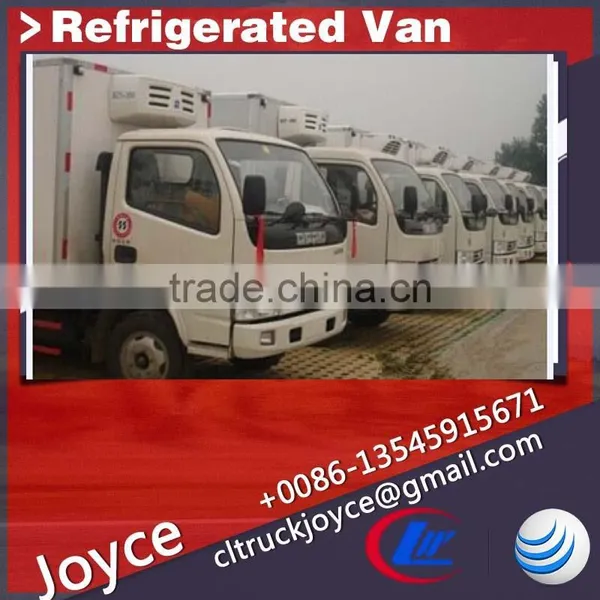

Refrigerator truck out-look

Refrigerator Truck(refrigeration contractor,refrigerator body truck,refrigerator carrier)Our product includes trailer and truck refrigerator.All freezer truck have different usage and different volume and with various chassis, we have dongfeng series refrigerator truck,changan series refrigerator truck,faw series refrigerator truck and semi refrigerator container.foton series refrigerator truck, series ice truck ,More pictures and price about refrigerator truck,please contact us with email or telephone.
