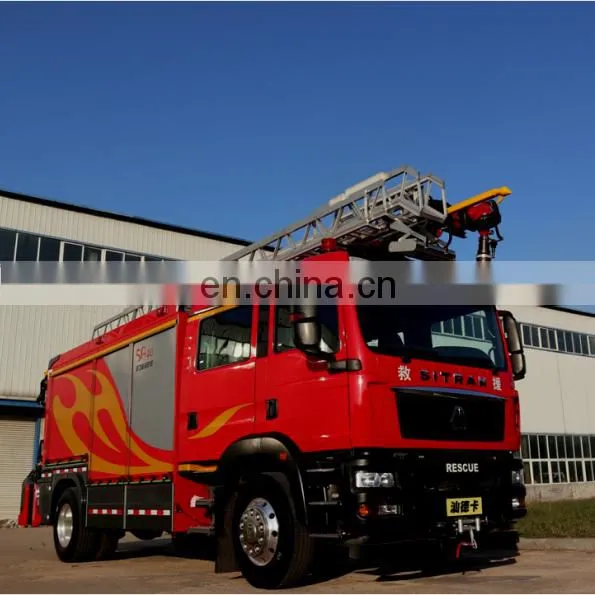

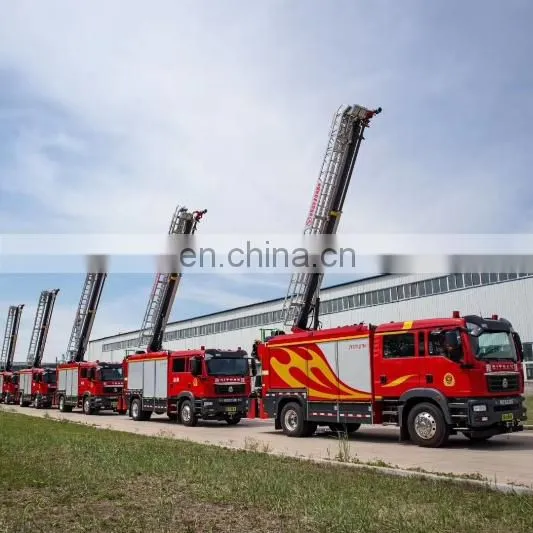

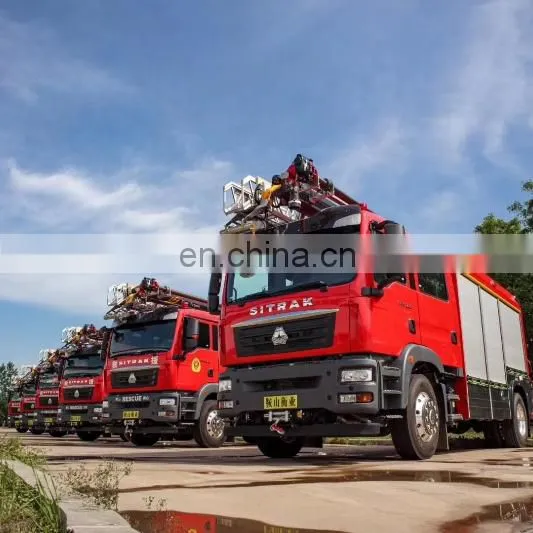

Rescue Truck Lift and Emergency Truck Water and Foam Combined Fire Truck

1,Chassis

v Chassis:ZZ5206N501GE5 SITRAK

2,Cab

v Structure:Flat head, double rows with four doors, there are 4 seat frames for air breathing apparatus at the rear seat.

v Seat:Two persons at the front (including driver),four persons at the rear.

v Turnover device:Double cylinder hydraulic turnover mechanism

v Equipment:In addition to the original equipment, it also equipped with 100W alarm, switch of alarm light, switch of PTO and etc.

3,Tank

v Volume:Water - 4000kg

v Material:Low temperature resistant polymer PP

v Structure:Welded, equipped with anti-swing board, and the grid structure with manhole is in accordance with the national standard.

v Equipment: ² One entrance hole with quick lock and open device;

² One overflow device;

² One fluid level indicator;

² One drain outlet, manual valve control;

² Two water filling nozzles.

4,Fire pump and piping system

Fire pump

v Model:Darley, KSP1000

v Flow:60L/s

v Pressure:1.0Mpa

v Water diversion time:≤ 50s

v Install type:Central

Piping system

 v Outer inlet pipe:Both sides of the fire pump are provided with an external water inlet, connected with the suction pipe which diameter is DN150. The connection type is clip pipe thread connection.

v Inner inlet pipe:One DN150 inlet pipe, equipped with one DN150 pneumatic manual control butterfly valve, connected with the tank and the pump.

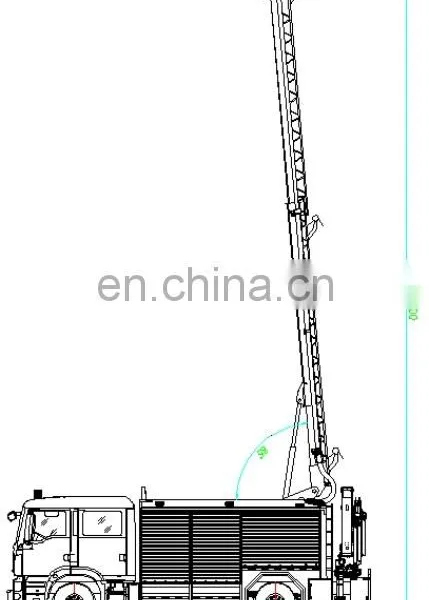

v Outlet pipe:Both the left and right side of the fire pump has an atmospheric outlet with DN65 ball valve control;One fire monitor outlet pipe controlled by an DN100 pneumatic manual control butterfly valve, which can be lifted up to 85 degree and 15 meters high.

v Water injection pipe:One DN65inner water injection pipe which can inject

v  Water from the outside through the pump.

v Drain pipe:In order to protect the water pump and the PTO, the drain valve is added at the lowest area of them.

v Cooling water pipe:It was equipped in order to let the PTO deal with various complicated situations.

5,PTO

v Model: Sandwiched full power PTO

v Operation: Solenoid valve control

v Cooling mode: Compulsive adjustable water cooling

v Lubrication mode:Splash lubrication

v Type:Partial power

v Control:  Solenoid valve control;

v Cooling mode:  Oil cooling

v Lubrication mode:  Splash lubrication

6,Fire monitor and large flow fire branch

v Model:3482+5177

v Brand: USA – AKRON

v Flow:3000L/min 0.7Mpa
