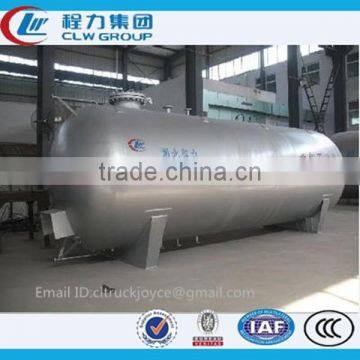

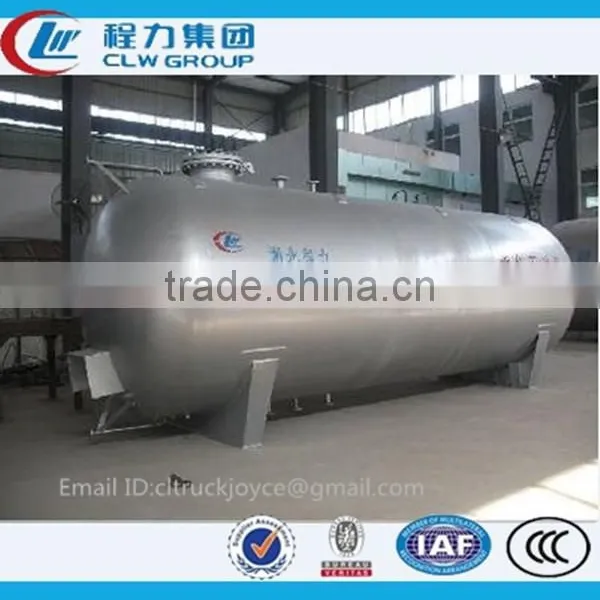

Ammonia Storage Tank,Ammonia Tank,Liquid Ammonia Tank

Item

Unit

Parameters

Products name

Ammonia Tank
 10m3

Ammonia Tank
  20m3

Ammonia Tank
  25m3

Ammonia Tank
  32m3

Products model

CLG1600-10

CLG1800-20

CLG2000-25

CLG2300-32

Filling medium

LPG(propane)

LPG(propane)

LPG(propane)

LPG(propane)

Overall dimensions

mm

5260*1620*2210

6724*2024*2614

7008*2224*2814

8158*2324*2914

Nominal diameter

mm

DN1600

DN2000

DN2200

DN2300

Tank thickness

mm

Tank :10mm, End head : 10mm

Tank :12mm, End head : 12mm

Tank :12mm, End head : 14mm

Tank :12mm, End head : 14mm

Volume

m3

10

20

25

32

Loading capacity

kg

3990

7980

9975

12768

Net weight

kg

2950

5150

6020

7110

Designing pressure

Mpa

1.77

1.77

1.77

1.77

Working pressure

Mpa

≤1.6

≤1.6

≤1.6

≤1.6

ure

Bar

16.1

16.1

16.1

16.1

Working temperature

°C

≤50

≤50

≤50

≤50

Hydraulic test pressure

Mpa

2.22

2.22

2.22

2.22

Air test pressure

Mpa

1.77

1.77

1.77

1.77

Material of tank and accessory

Q345R,16MnIII

standard

GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures

accessory

Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.

Remark : Through X-ray non-destructive testing

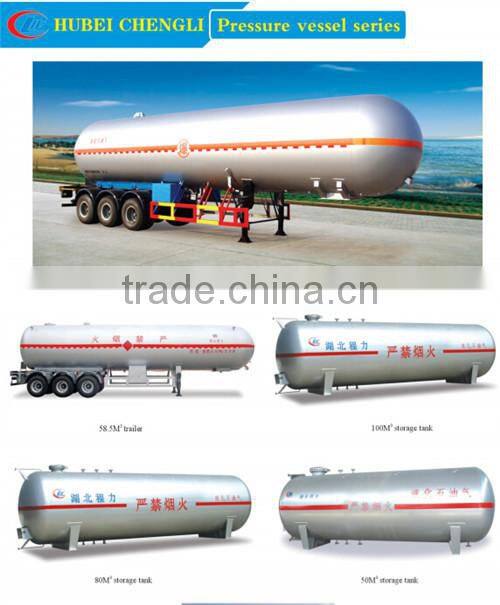

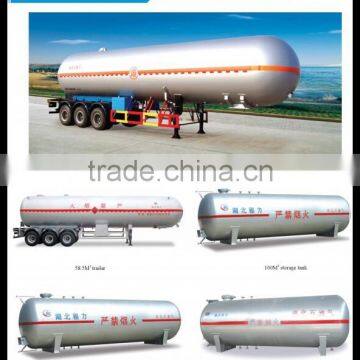

My company also designed according to customer demand for liquefied petroleum gas, liquid ammonia, carbon disulfide, ethylene oxide, gasoline, butane, propane, propylene and other oils, fuels and chemical raw materials storage containers.
Anti-corrosion coating the surface of liquefied gas storage tanks are used sand-blasting treatment, spraying, blowing
The welded joints, weld, tank head, the pressure components, the geometric location are strictly through the X-ray non-destructive testing and helium mass spectrometer examination
