DONGFENG 140 4*2 Garbage Transportation Truck 10ton
Garbage Transportation Truck is also called compactor garbage truck ,garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
Product Features of DONGFENG 140 4*2 Garbage Transportation Truck 10ton
1 Adopt Dongfeng 140 4*2 chassis, with Yuchai 140hp, load 10 ton garbage;
2 High efficiency , stable performance
3 Affordable price
4 Safe, comfortable driving and operating
Main Techmical Parameter of DONGFENG 140 4*2 Garbage Transportation Truck 10ton
Main Technical Parameter | |||
Product Model | DONGFENG Garbage Transportation truck | Product Brand | CLW |
Wheelbase(mm) | 3950 | Overall Dimension(L*W*H) | 6930×2480×3150 |
Front/ rear suspension(mm) | 1065/1915 | Compartment Dimension(L*W*H)(mm) | 3800×2400×1200 |
Curb weight(kg) | Approx 5520 | Axle number | 2 |
Approach/ departure angle (° ) | 34/17 | Max Speed (km/h) | 85 |
Cab capacity | 3 | Cab Type | Flat proof, tip head |
Chassis Technical Parameter | |||
Chassis Model: | EQ1102 | Chassis manufacturer: | DONGFENG Automobile Co. Ltd |
Gear Box | 6 forward and 1 reverse | Transmission type: | Manual |
Steering Type | LHD with power steering | Traction Type: | 4*2 |
Brake System | Air brake | Number of Tire | 6 with 1 spare tire |
Leaf Spring number: | 9/12+9 | Tire size/type | 9.00-20 |
Engine specification | |||
Engine Model: | YC4E140-33 | Engine Brand | Guangxi Yuchai |
Fuel type: | Diesel | Displacement(ml) | 4257 |
Emission stand | Euro 2 | Power(kw) | 105 (140hp) |
Superstructure parameter | |||
1. Middle Double lifting type, rear dump | |||
2. Body Material: floor 4mm, side & back 3mm carbon steel | |||

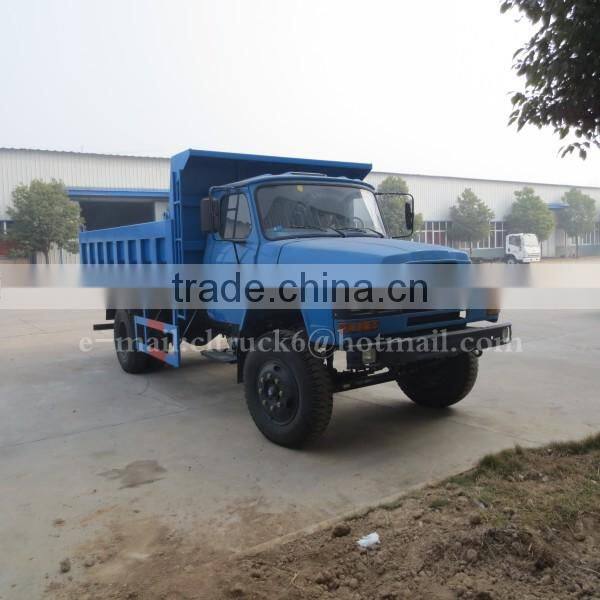

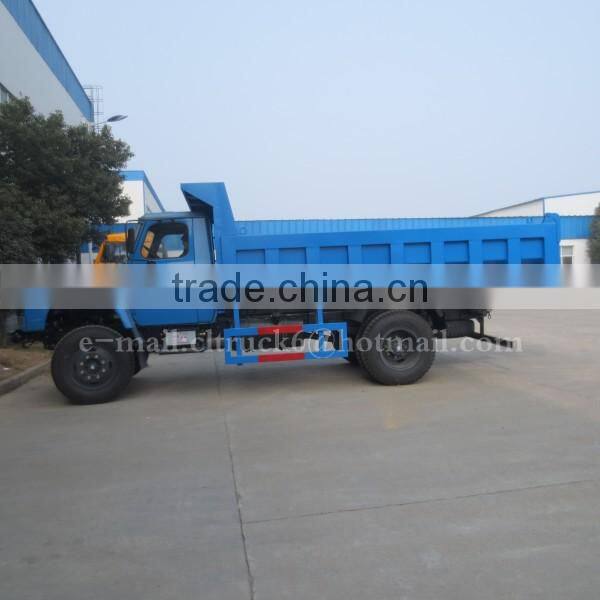

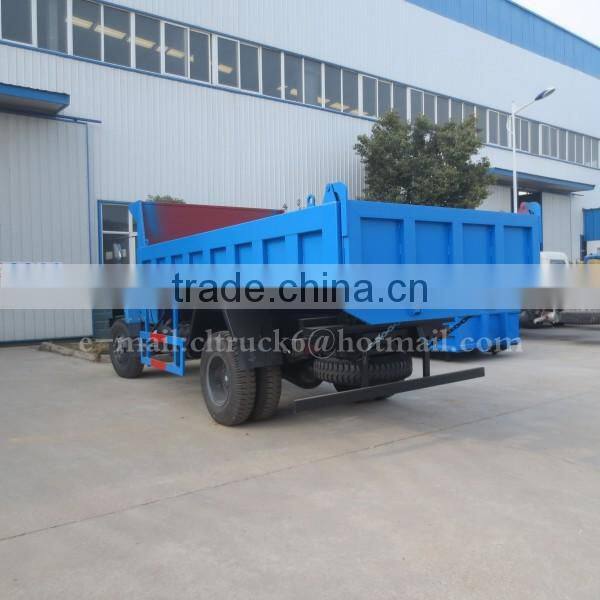

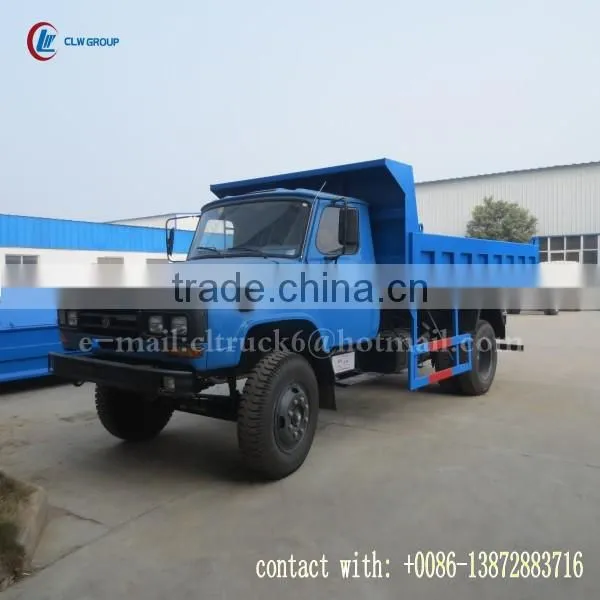

Multifacetd Picture of DONGFENG 140 4*2 Garbage Transportation Truck 10ton:
Brief Introduction of My company;
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
