4*2 DONGFENG Self-loading Waste Truck 5m3
- 300 Set / Sets per Month
- any port in China
- T/T L/C D/P D/A Credit Card PayPal
- Small Dust cart, garbage truck 3TON,4TON,5TON
- Constructed mining small garbage transfer truck/site dumper on sale
- 4wd 1.5ton Dumper Truck, 4wd Small Garbage Truck Compactor with Factory Price Automatic Provided 0.7CBM 1500kg 3320-2780*2150
- New Design Electric Power 48V Three Wheel Cleaning Tricycle For Garbage Green Energy BJ3014
- Mobile garbage compactor container 8cbm 10cbm 12cbm 16cbm 18cbm 20cbm
- 3cbm 4cbm 5cbm 6cbm 8cbm 10cbm 12cbm hook lift bin for hook arm garbage truck
Product Details
Condition: | New | Drive Wheel: | 4x2 | Type: | Recycling |
Transmission Type: | Manual | Emission Standard: | Euro 2 | Volume: | 3001 - 6000L |
Fuel Type: | Diesel | Engine Capacity: | 3856 | Size: | 5950*2000*2320 |
Gross Vehicle Weight: | 8500 | Place of Origin: | Hubei, China | Brand Name: | Dongfeng |
Model Number: | EQ1060 | Certification: | ISO9001, 3c | After-sales Service Provided: | Overseas third-party support available |
Product Description
4*2 DONGFENG Self-loading Waste Truck 5m3
Self-loading Waste Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
,
Product note:

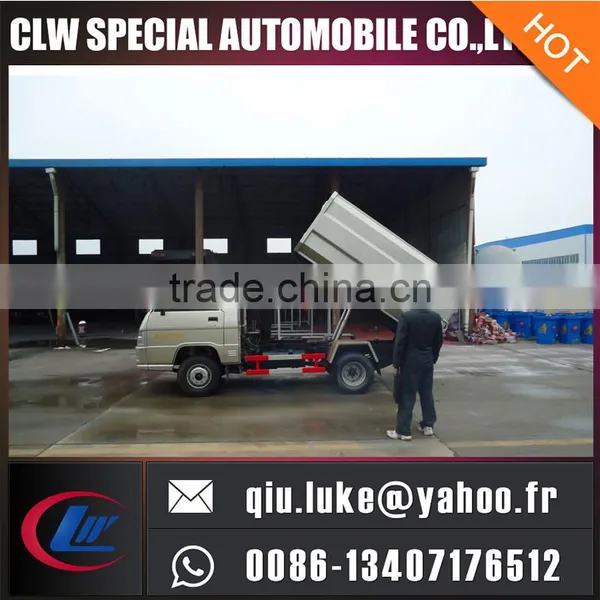

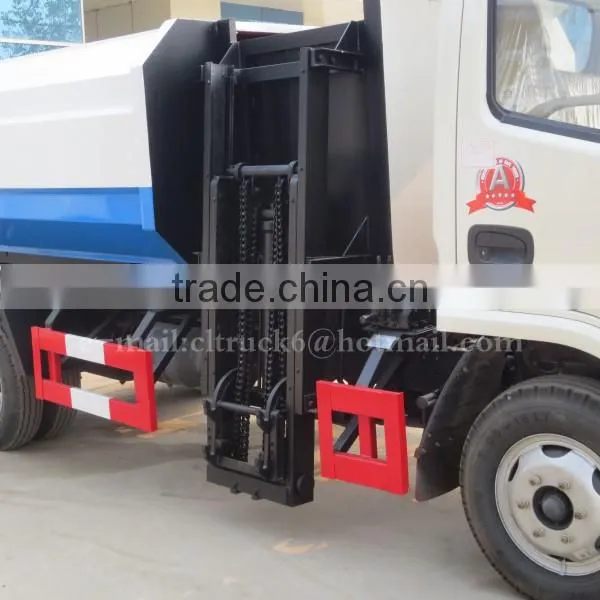

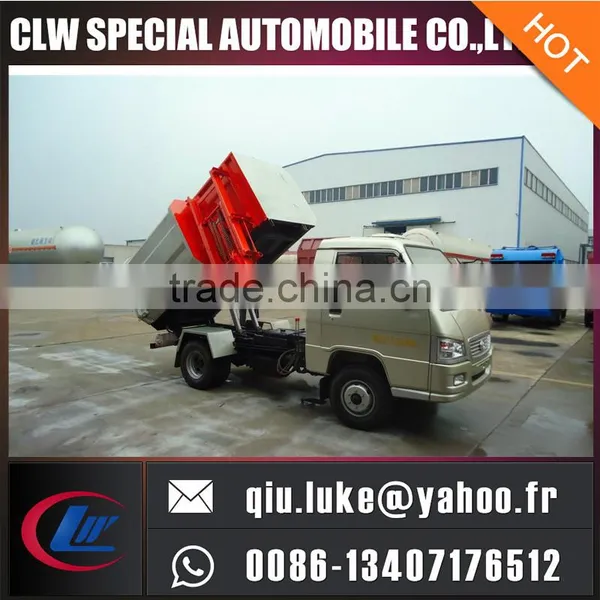

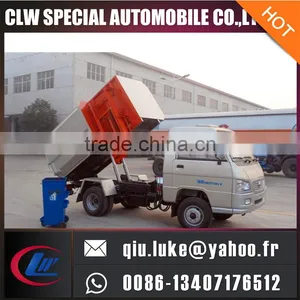

Self-loading Waste Truck is constructed by 4mm carbon steel, the body is fitted on the chassis by the truck beam. It have hanging bucket lifting mechanism, load conveniently. It have dump function. It is widely used in garbage disposal in street , school and other places. Loading and unloading garbage is very convenient.
Product features
1.Simple, efficient garbage collection methods;
2.Automatic operation;
3. ISO9001,3C
4 DONGFENG mature 4*2 light chassis, 95hp
5 Fatctory direct sale
6 Load & unload conveniet
7 Economical & Practical
Main technical parameter of 4*2 DONGFENG Self-loading Waste Truck 5m3:
Product Model | DONGFENG Self-loading Waste Truck | Overall Dimension(L*W*H)(mm) | 5850×2000×2300 |
Curb weight(kg) | 3465 | F/ R suspension(mm) | 1032/1518 |
Loading capacity(m3) | 5 | Wheelbase(mm) | 3300 |
Axle number | 2 | Approach/ departure angle (° ) | 19/15 |
Cab type | Single row | Cab capacity | 2 or 3 |
Steering type | LHD with power steering | Max Speed (km/h) | 90 |
Chassis Technical Parameter | |||
Chassis Model: | EQ1060 | Chassis Manufacturer: | DONGFENG Automobile Co., Ltd |
Brake System | Air brake | Transmission type: | Manual |
Gear box | 5 shift | Number of tire | 6 with a spare |
Tire size | 7.00-16 | Traction Type: | 4*2 |
Engine specification | |||
Engine Model: | CY4102-C3F | Engine Brand | DONGFENG CHAOYANG |
Emission stand | Euro 2 | Displacement(ml) | 3856 |
Fuel type: | Diesel | Power(kw) | 70(95hp) |
Warranty | 12 months, from the date of supply | ||
Superstructure parameter |
| ||
3. Garbage box material: Good quality carbon steel Q235,side 3mm ,floor 4mm, optional hydraulic top cover |

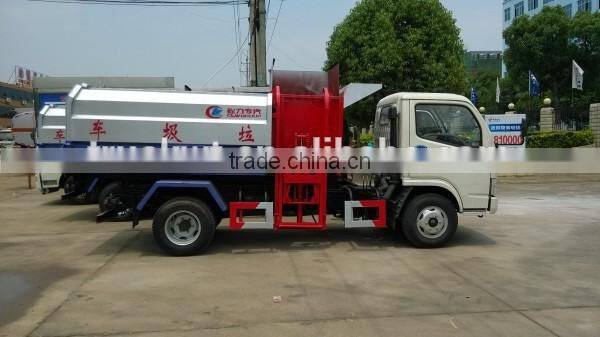

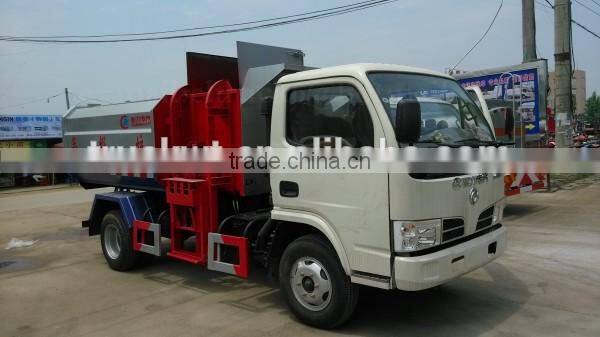

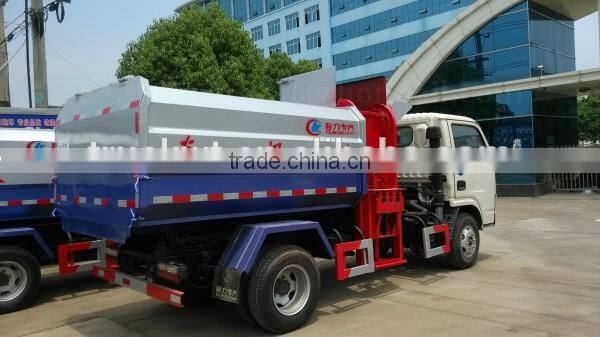

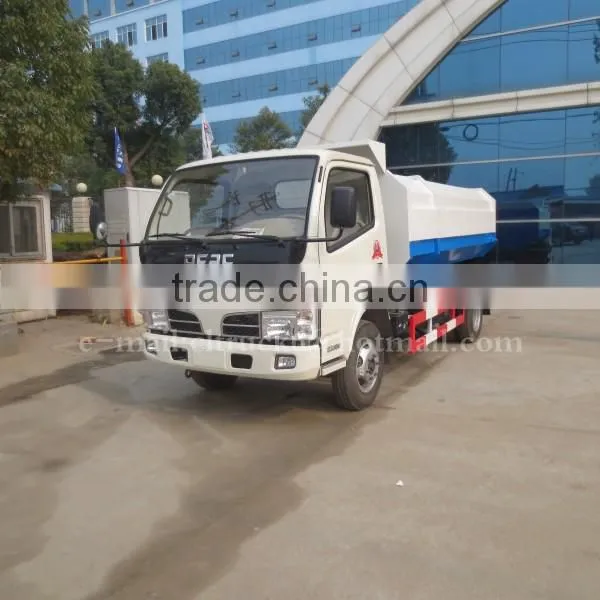

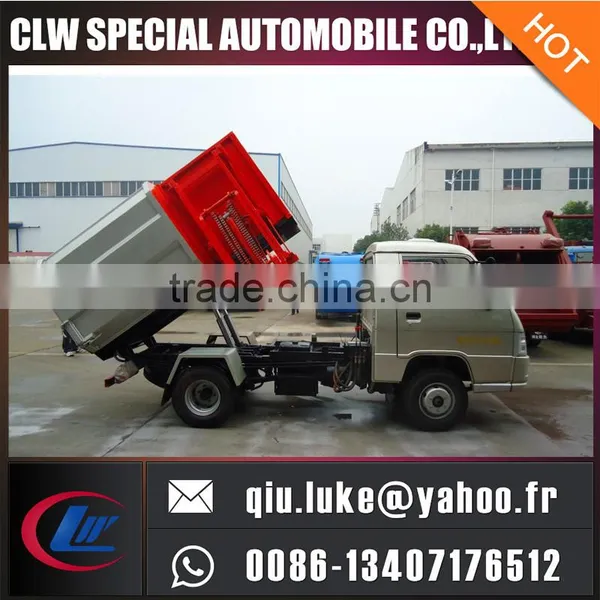

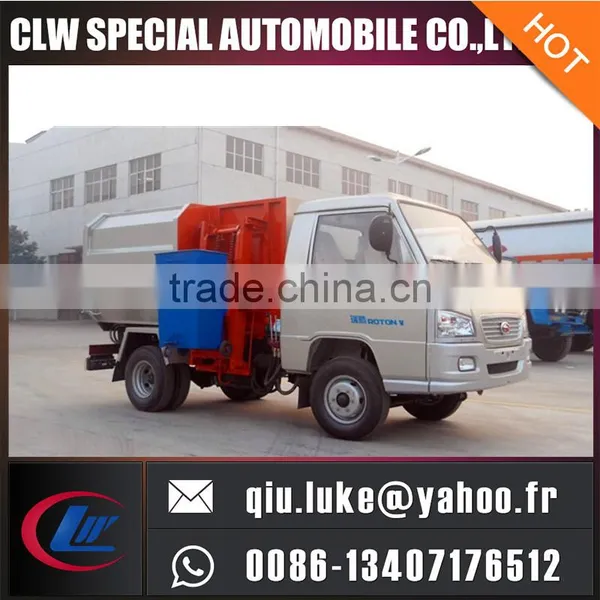

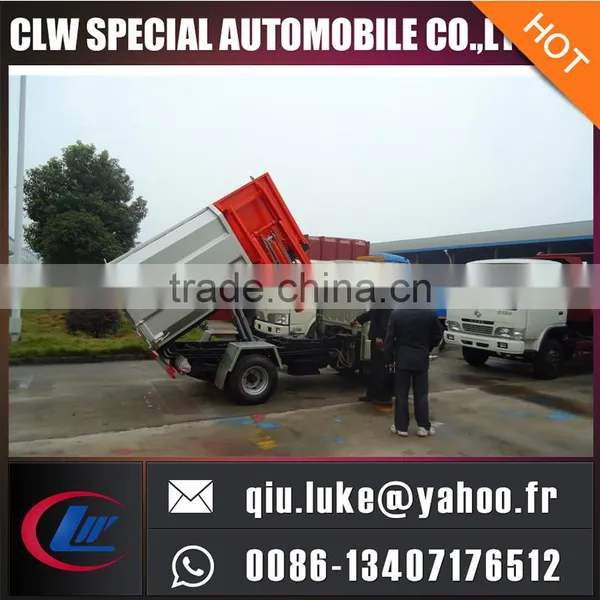

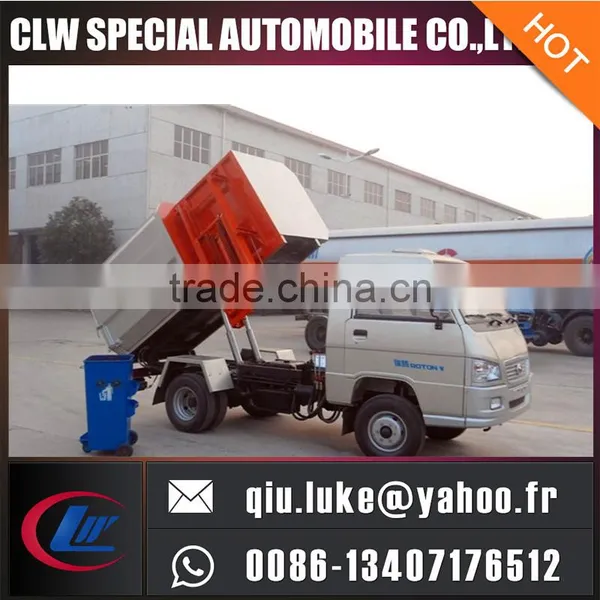

Multi-faceted Picture of 4*2 DONGFENG Self-loading Waste Truck 5m3 :
1, Packaging: nude or waxing;
2. Shipping: Ro-Ro ship or bulk ship according to the customer’ order or requirement ;
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Brief Introduction of My company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Trucks Exported:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
