DongFeng Mini 4*2 Gasoline Cheap Garbage Truck
Garbage truck is also called Trash truck garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
,
Main Technical Parameter | |||
Product Name | CLW5020ZLJ4 Cheap Garbage Truck | Overall Dimension(L*W*H)(mm) | 4350×1640×1900 |
Gross weight (kg) | 2300 | Approach/ departure angle (° ) | 36/34 |
Payload(kg) | 500 | Dustbin volume(m3) | 3-3.5 |
Curb weight(kg) | 1670 | Max Speed (km/h) | 90 |
Chassis Technical Parameter | |||
Chassis Model: | DFA1021FJ12QA (JunFeng Brand) | Chassis Manufacturer: | DongFeng Automobile Co., Ltd |
Cab capacity | 2 | Transmission type: | Manual |
Front/ rear suspension(mm) | 540/1265 | Leaf Spring number: | -/6 |
Axle number | 2 | Front/Rear axle load(Kgs) | 970/1330 |
Wheelbase(mm) | 2545 | Front/Rear tread(mm) | 1440/1466 |
Tire size | 6.50-16/165/70R14 | Traction Type: | 4*2 |
Engine specification | |||
Engine Model: | LJ465Q-2AE6 | Engine Brand | LiuZhou WuLin LiuJi |
Emission stand | Euro 4 | Displacement(ml) | 1050 |
Fuel type: | Gasoline | Power(kw) | 45/61hp |
Warranty | 12 months, from the date of supply | ||
Remark | Equipped with hermetic dustbin, 24V Electric system, electrically hydraulic operation control | ||
Equipped with two advanced doubleacting hydrocy linders,cycling time60s | |||
Van material: carbon steel | |||
If you have any special request about this truck, you can tell us as possible ,pls. We can produce according to your request | |||

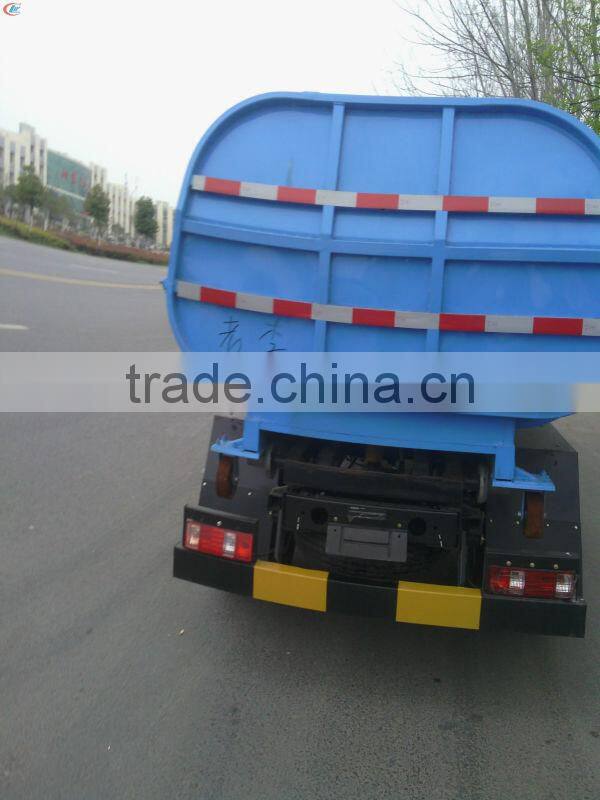

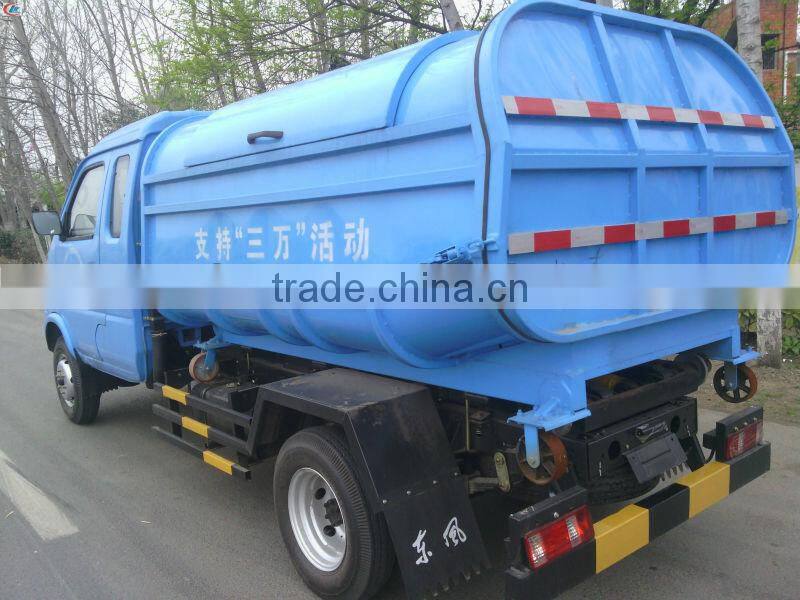

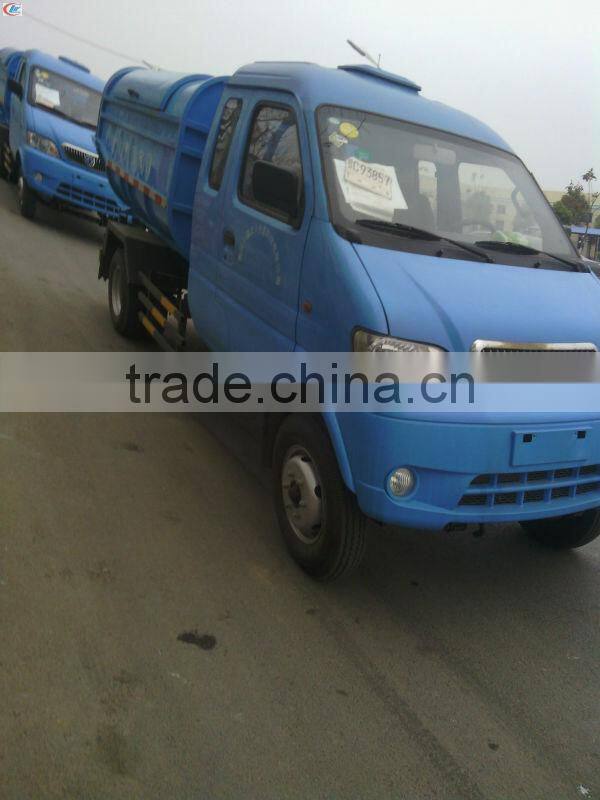

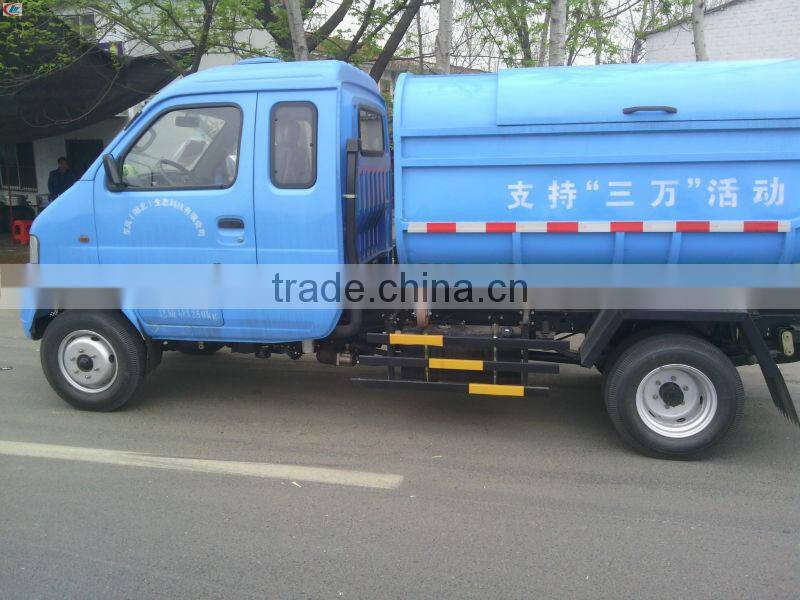

This truck show as following:
Hubei ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
production Equippments:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
