170hp 4*2 DONGFENG Garbage Truck with underground bucket 6ton
Garbage Truck with underground bucket is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
Production notes:
1 Factory direct sale
2 DONGFENG 4*2 chassis,170hp
3 Economical,practical
4 With many underground or ground buckets 8 m3
5 Easy to use ,operate conveniently
Technical Parameter
Product name | 170hp 4*2 DONGFENG Garbage Truck with underground bucket 6ton | |
Vehicle Main Dimensions | Cab type | DONGFENG Single sleeper, two seats and A/C |
Overall dimension(L×W×H)(mm) | 7370×2470×3300 | |
Garbage bucket volume(m3) | 8 | |
Wheelbase (mm) | 3950 | |
Axle number | 2 | |
Drive type | 4*2 | |
Steering type | LHD or RHD with hydraulic steering with power assistance | |
Max. Drive Speed (km/h) | 85 | |
Curb weight (kg) | 6795 | |
Loading Capacity(kg) | 6000 | |
Chassis parameter | Chassis Model | EQ1110 |
Chassis manufacturer: | DONGFENG Motor Co.,Ltd | |
Front/ rear Axle | 5ton / 10ton | |
Transmission | Manual Six Forward & one reverse. | |
Brakes | Service brake: dual circuit compressed air brake | |
Tire | Seven units of 9.00-20 Nylon tires.(option:9.00R20) | |
Engine parameter | Brand | DONGFENG |
Model | B170 33 | |
Fuel type | Diesel | |
Engine Type | 6-cylinder in-line with water cooling;;turbo-charging and inter-cooling | |
Horse Power(kw)/(hp) | 125(170HP) | |
Displacement(ml) | 5900ml | |
Emission Standard | Euro 3 | |
Superstructure parameter | 1.Material of compartment: Side 3mm ,floor 4mm carbon steel | |
2.Hydraulic system pressure: 16 Mpa | ||
3.Control type: hydraulic and manual
| ||

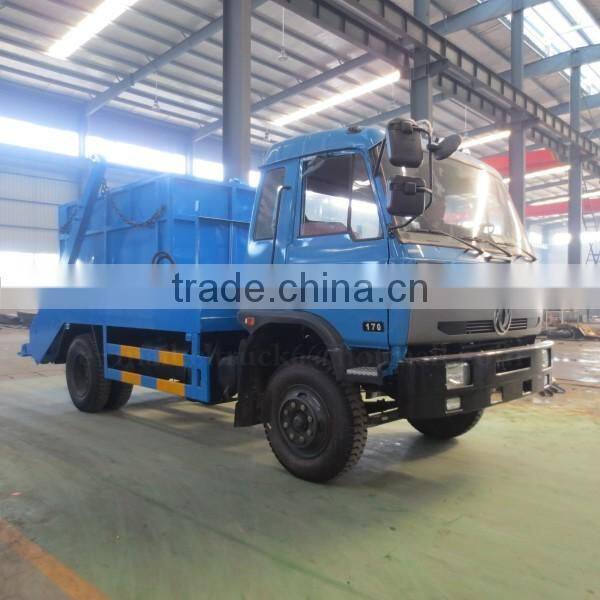

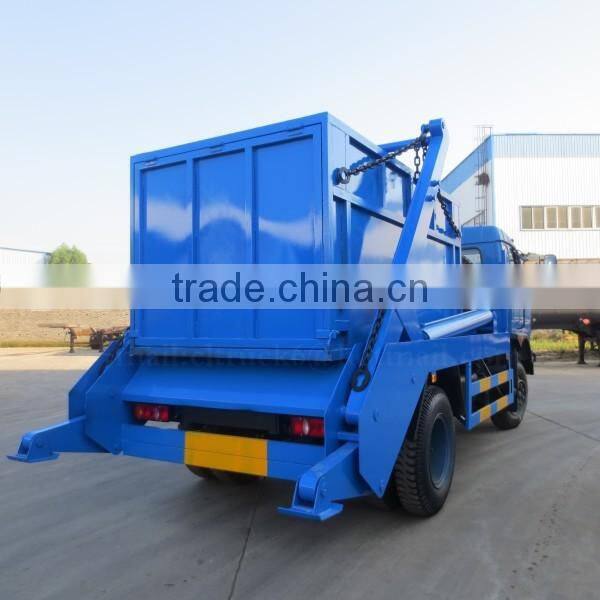

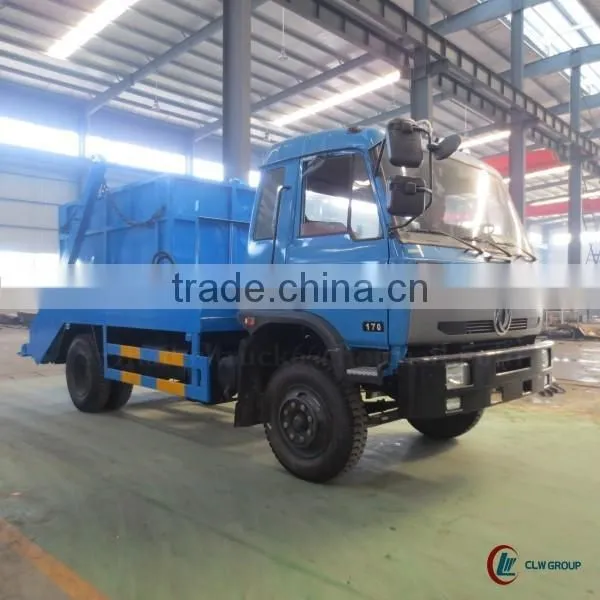

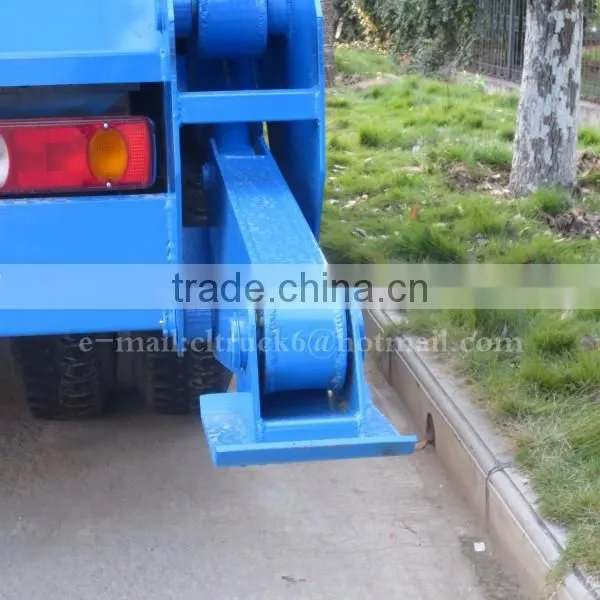

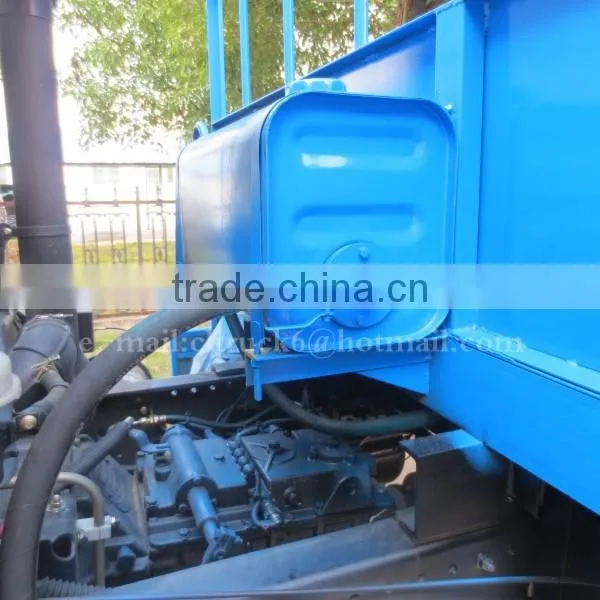

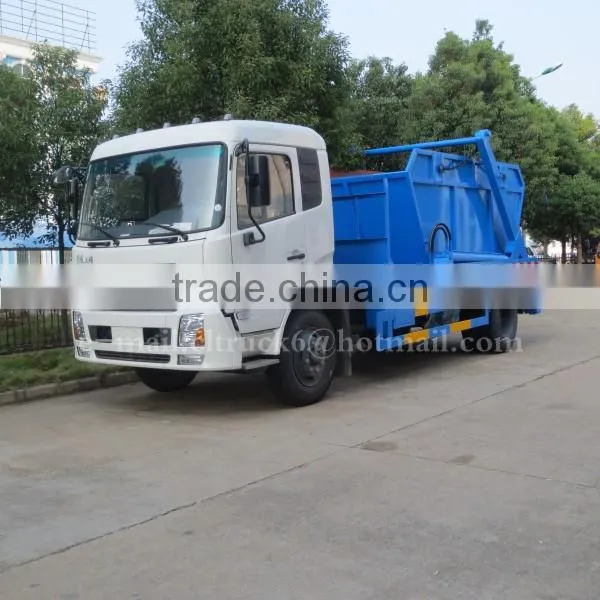

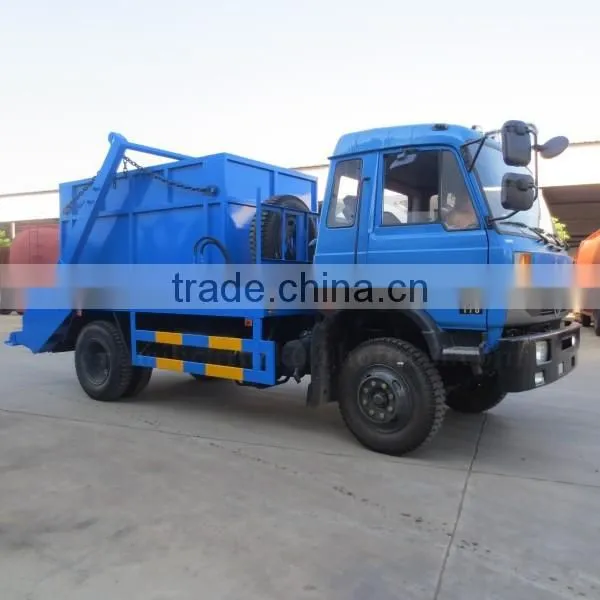

Truck Picture of 170hp 4*2 DONGFENG Garbage Truck with underground bucket 6 ton:
1, Packaging: nude or waxing;
2. Shipping: Ro-Ro ship or bulk ship according to the customer’ order or requirement
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Trucks Exported:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
