DONGFENG 4*2 Side Loading Swill Collection Truck 5.75m3
Swill Collection Truck is also called Food Waste Collection truck , Kichten garbage transport truck , is mainly used in transporting kinds of kichten garbage in Canteen ,dining room, etc, have dump funtion, convenient and practical. This kind of truck also can be equipped with Vacuum pump as vacuum sewage truck.
Production Notes of DONGFENG 4*2 Side Loading Swill Collection Truck 5.75m3
1 DONGFENG 4*2 chassis,120hp, 5.75m3
2 Four - multi-way valve Hydraulic Control system
3 solid garbage and liquid water separate
4 dump function
Technical Parameter of DONGFENG 4*2 Side Loading Swill Collection Truck 5.75m3
Product Model |
DONGFENG Swill Collection Truck |
Overall Dimension(L*W*H)(mm) |
6695×2200×3000 |
Curb weight(kg) |
4820 |
F/ R suspension(mm) |
1180/1715 |
Loading capacity(m3) |
5.75 |
Wheelbase(mm) |
3800 |
Axle number |
2 |
Approach/ departure angle (° ) |
19/13 |
Cab type |
Single row |
Cab capacity |
2 or 3 |
Steering type |
LHD with power steering |
Max Speed (km/h) |
90 |
Chassis Technical Parameter | |||
Chassis Model: |
EQ1090T9ADJ3AC |
Chassis Manufacturer: |
DONGFENG Automobile Co., Ltd |
Brake System |
Air brake |
Transmission type: |
Manual |
Gear box |
5 shift |
Number of tire |
6 with a spare |
Tire size |
7.50R16 (steel tire) |
Traction Type: |
4*2 |
Engine specification | |||
Engine Model: |
CY4102-C3C |
Engine Brand |
DONGFENG CHAOYANG |
Emission stand |
Euro 3 |
Displacement(ml) |
3856 |
Fuel type: |
Diesel |
Power(kw) |
88(120hp) |
Warranty |
12 months, from the date of supply |
||
Superstructure parameter |
|
||
3. Equipped with garbage push plate inside garbage body, can achieve solid garbage and liquid water separate | |||
4. Garbage box material: Good quality Q235 carbon steel 5mm | |||
5. Equipped with observation window in the front of garbage box | |||
Product Picture of DONGFENG 4*2 Side Loading Swill Collection Truck 5.75m3:
Vehicle inspection Picture for the coustomer:
Operating Sign Stand of DONGFENG 4*2 Side Loading Swill Collection Truck 5.75m3
Hydraulic Control system of DONGFENG 4*2 Side Loading Swill Collection Truck 5.75m3:
Brief Introduction of my company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:

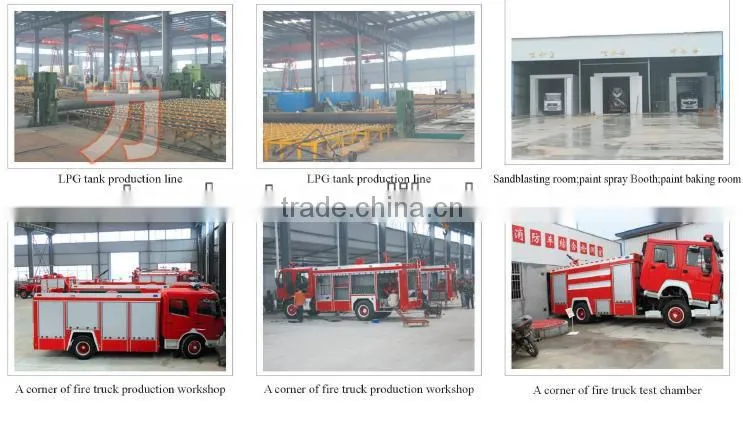

Production Equipment:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
