DONGFENG 145 4*2 Dump Garbage Truck 8m3 with Top Cover
Dump Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
Product Note:
1.Simple, efficient collection methods;
2.Automatic operation,Environmentally friendly with top cover;
3. DONGFENG 4*2 chassis with170hp
Main technical parameter of DONGFENG 145 4*2 Dump Garbage Truck 8m3 with Top Cover
Main Technical Parameter | |||
Product Name | DONGFENG Dump garbage Truck | Overall Dimension(L*W*H)(mm) | 7000×2490×2980 |
Compartment size(L*W*H)(mm) | 4480×2210×800 | Approach/ departure angle (° ) | 34/15 |
Curb weight(kg) | 6295 | Dustbin volume(m3) | 8 |
Axle number | 2 | Front/Rear axle load(Kg) | 3600/9000 |
Cab capacity | 3 | Front/ rear suspension(mm) | 1250/1800 |
Wheelbase(mm) | 3950 | Front/Rear tread(mm) | 1910/1800 |
Cab type | DONGFENG 145 one and half row, flat proof | Max Speed (km/h) | 80 |
Chassis Technical Parameter | |||
Chassis Model: | EQ1162GJAC | Chassis Manufacturer: | DONGFENG Automobile Co., Ltd |
Gear box | 5 forward and 1 reverse | Transmission type: | Manual |
number of tires | 6 with a spare | Leaf Spring number: | 9/11+8 |
Tire size | 9.00-20,9.00-R20 | Traction Type: | 4*2 |
Engine specification | |||
Engine Model: | B170 33 | Engine Brand | DONGFENG |
Emission stand | Euro 3 | Displacement(ml) | 5900 |
Fuel type: | diesel | Power(kw) | 125(170hp) |
Warranty | 12 months, from the date of supply | ||
Remark | 1. Equipped with top cover, height 300mm, weight 400kg, unloading form: rear dump type | ||
2. Equipped with hermetic dustbin, 24V Electric system, electrically hydraulic operation control | |||
3. Equipped with two advanced double acting hydraulic cylinders, cycling time 60s | |||
4. Van material: carbon steel | |||

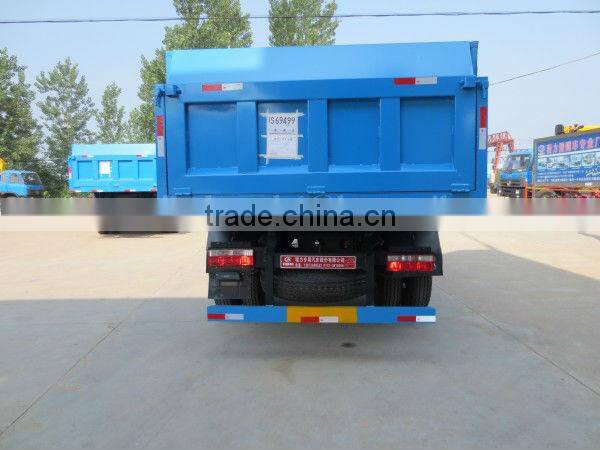

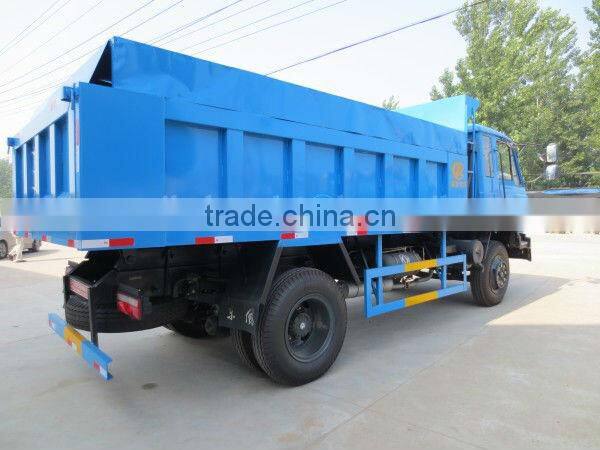

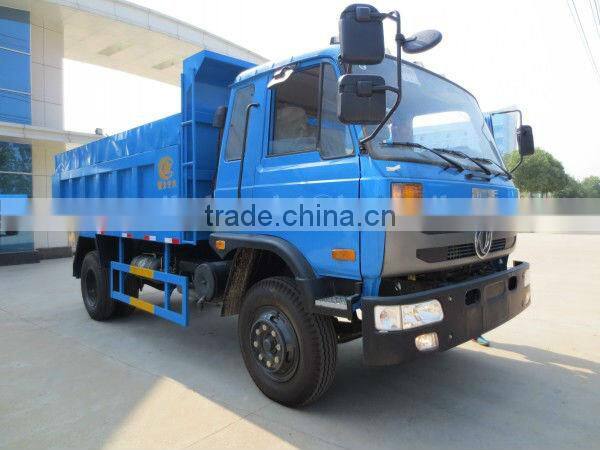

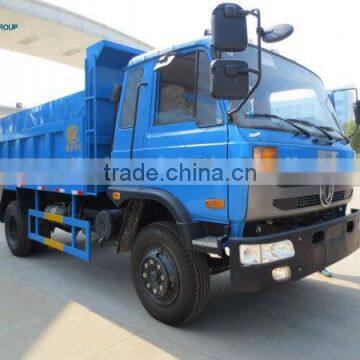

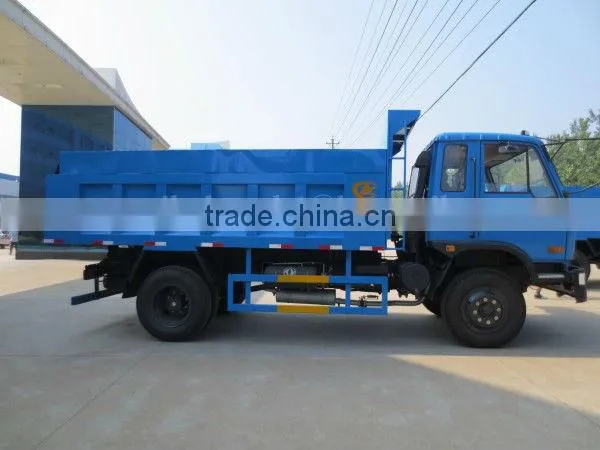

More Picture of DONGFENG Dump Garbage Truck Show as the following:
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Trucks Exported:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
