FORLAND 4*2 Detachable carriage waste truck 2-3 CBM
Detachable carriage waste truck is also called hook lift garbage truck, garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. this truck can be equipped with many buckets , high effiency, economical
Production notes:
1 ISO9001,3C
2 High quality, low price
3 Economical, practical
4 Easy to use ,operate conveniently
5 Forland 4*2 mini truck chass with Quanchai 68hp
,
Technical Parameter of FORLAND 4*2 Detachable carriage waste truck 2-3 CBM
Whole Truck Main Technical Parameter | |||
Product Name | FORLAND Detachable carriage waste truck | Overall Dimension(L*W*H)(mm) | 4400×1680×2050 |
Curb weight(kg) | Approx 1970 | detachable compartment volume(m3) | 2-3 |
Wheelbase(mm) | 2300 | Axle number | 2 |
Front/ rear suspension(mm) | 1010/1090 | Approach/ departure angle (° ) | 22/18 |
| Steering type | LHD | Max Speed (km/h)
| 90 |
| cab capacity | 2 | Cab type | Flat proof,single row, heater |
Chassis Technical Parameter | |||
Chassis Model: | BJ1042V8PAA-G1 | Chassis Manufacturer: | BEIQI FONTON Automobile Co., Ltd |
Brake System | oil brake | Transmission type: | Manual with 5 shift |
Traction Type: | 4*2 | Leaf Spring number: | 8/6+3 |
Tire size | 6.00-13 8PR | Number of Tire | 6 with a spare |
Engine specification | |||
Engine Model: | 4A1-68C40 | Engine Brand | ANHUI QuanChai Power Co., Ltd |
Emission stand | Euro 3 | Displacement(ml) | 1809 |
Fuel type: | Diesel | Power(kw) | 50(68hp) |
Warranty | 12 months, from the date of supply | ||
other Equipment or performances | 1. 24V Electric system, electrically hydraulic operation control | ||
2. Equipped with garbage bucket: side 3mm, floor 4mm carbon steel | |||
3. One Truck can be equipped with many garbage bucket | |||

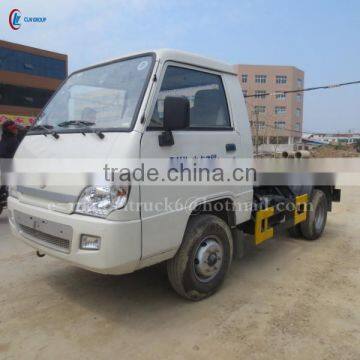

Multi-faceted Show of FORLAND 4*2 Detachable carriage waste truck 2-3 CBM :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Trucks Exported:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
