DONGFENG 140 4*2 Side Load Garbage Truck 10m3

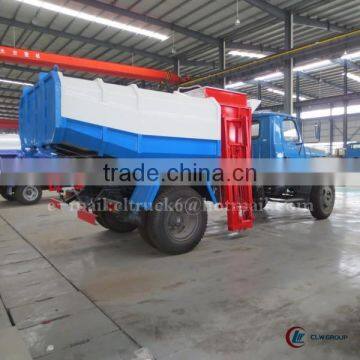

DONGFENG 140 4*2 Side Load Garbage Truck 10m3 photo-1
US$ 1 - 39,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Drive Wheel:
4x2
Type:
Recycling
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Drive Wheel 4x2
Type Recycling
Transmission Type Manual
Emission Standard Euro 3
Volume 10001 - 15000L
Fuel Type Diesel
Engine Capacity 4260
Size 6850*2440*2720
Gross Vehicle Weight 16800
Place of Origin Hubei, China
Brand Name DONGFENG-CLW
Model Number EQ1102FLJ5
Certification 3c
After-sales Service Provided Overseas third-party support available

     DONGFENG 140 4*2 Side Load Garbage truck 10m3









DONGFENG 140 4*2 Side Load Garbage truck 10m3



       Side Load Garbage truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of  garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport  household waste in residential area. According to loading and unloading type, it is divided into  the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.

Side Load Garbage truck is constructed by side 3mm, floor 4mm carbon steel, the body is fitted on the chassis by the truck beam.  It is widely used in garbage disposal in street , school and other places, it have dump function, hydraulic operation, dump conveniently.







Product featuresof  DONGFENG 140  4*2 Side Load Garbage truck 10m3 :





1.Simple, efficient collection methods;

 2.Automatic operation;

3.Environmentally friendly ;

4. ISO9001,3C
5. High quality low price
6. Economical ,Practical

 ,



 Main technical parameter of   DONGFENG 140  4*2 Side Load Garbage truck 10m3





Product Model

DONGFENG  Side Load Garbage truck

Overall Dimension(L*W*H)(mm)

6850×2440×2720

Curb weight(kg)

5715

Cargo box Dimension(L*W*H)(mm)

4000×2300×1470

Loading capacity(m3)

10

Wheelbase(mm)

3950

Axle number

2

Approach/ departure angle (° )

34/17

Steering type

LHD or RHD with power steering

Max Speed (km/h)

85

Cab type

Single row, tip head

Cab capacity

2 or 3

Chassis Technical Parameter

Chassis Model:

EQ1102FLJ5

Chassis Manufacturer:

DONGFENG Motor Co., Ltd

Brake System

Air brake

Transmission type:

Manual

Gear box

 6 shift

Number of tire

6 with a spare

Tire size

9.00-20

Traction Type:

4*2

Engine specification

Engine Model:

     YC4E140-30

Engine Brand

GUANGXI YUCHAI Machinery Co., Ltd.

Emission stand

Euro 3

Displacement(ml)

    4260

Fuel type:

Diesel

Power(kw)

105(140hp)

Warranty

12 months, from the date of supply

Superstructure parameter

  1. Loading form: hanging barrel side loading, with dump function
  2. Equipped with hanging barrel lifting mechanism, load conveniently

3. Garbage box material: Good quality carbon steel Q235,side 3mm ,floor 4mm, optional hydraulic top cover



















































































Multi-faceted Picture of DONGFENG 140 4*2 Side Load Garbage truck 10m3:



DONGFENG 140 4*2 Side Load Garbage truck 10m3



DONGFENG 140 4*2 Side Load Garbage truck 10m3



DONGFENG 140 4*2 Side Load Garbage truck 10m3



DONGFENG 140 4*2 Side Load Garbage truck 10m3



Other type of Side Loading garbage truck show as the following:



DONGFENG 140 4*2 Side Load Garbage truck 10m3



DONGFENG 140 4*2 Side Load Garbage truck 10m3



Brief Introduction of Company:



        ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.

          Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.

         We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.

            ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
