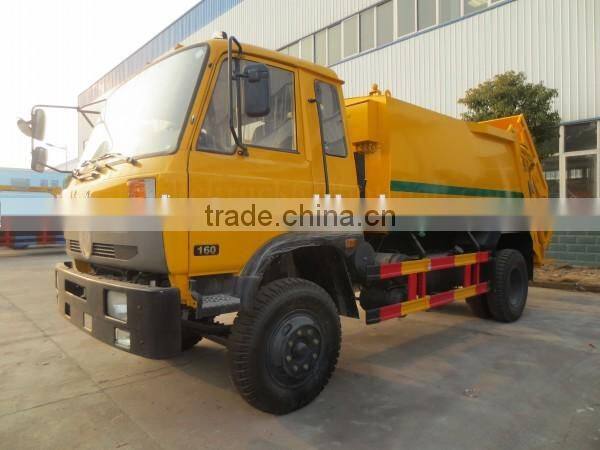

DONGFENG 4*2 Waste Compactor Truck for Sale 10 m3
Waste Compactor Truck for Sale, is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
Product features :
1.Simple, efficient garbage collection & treatment methods;
2. Automatic hydraulic operation, with dump function;
3. Factory direct sale
4. Professioal,attentive
Main technical parameter of DONGFENG 4*2 Waste Compactor Truck for Sale 10 m3
Main Technical Parameter | |||
Product Model | DONGFENG Waste Compactor Truck for Sale | Overall Dimension(L*W*H)(mm) | 7760,7600×2495×3350 |
Wheelbase(mm) | 3950 | Tank volume(m3) | 10 |
Curb weight(kg) | Approx 8795 | F/ R suspension(mm) | 1430/2540 |
Steering Type | LHD or RHD with power steering | Number of Axles | 2 |
Approach/ departure angle (° ) | 20/11 | Max Speed (km/h) | 95 |
Cab capacity | 3 | Cab Type | single sleeper, air conditioning |
Chassis Technical Parameter | |||
Chassis Model | EQ1162 | Chassis manufacturer | DONGFENG Automobile Co.,Ltd |
Gear Box | 6 shift | Transmission type | Manual |
Brake System | air brake | Traction Type | 4*2 |
Leaf Spring number | 8/10+8,7/9+6 | Tire size/type | 9.00-20,9.00R20 |
Engine Technical Parameter | |||
Engine Model |
YC4E160-33
| Engine manufacturer | Guangxi Yuchai |
Fuel type | diesel | Displacement(ml) | 4257 |
Emission stand | Euro 3 | Power(kw) | 118(160hp) |
Equipment & Performance | 1.Equipped with loading hopper, front push , rear compressed , sewage tank, optional rear overturned mechanism,etc | ||
2.Compartment material: side and back 3mm ,floor 4mm thickness carbon steel | |||
3.Equipped with 24V Electrically Hydraulic Control system | |||
Warranty | 12 months, from the date of supply | ||
Multi-faceted Show of DONGFENG 4*2 Waste Compactor Truck for Sale 10 m3:

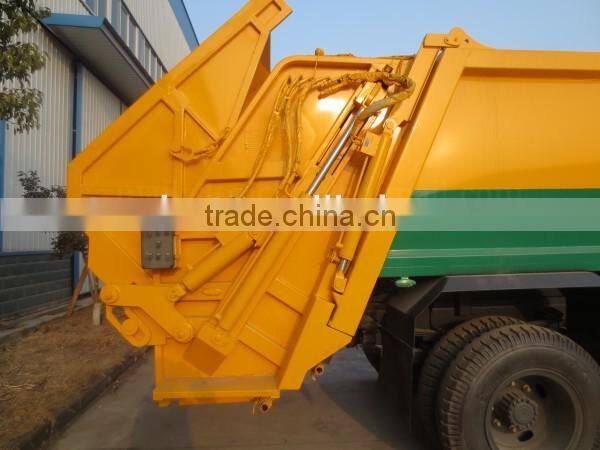

Optional Equipped with rear overturned mechanism
Push-button operation Sign Stand in Chinese and English
Sewage water tank outlet:
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Production Equipments:
Trucks Exported:
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
