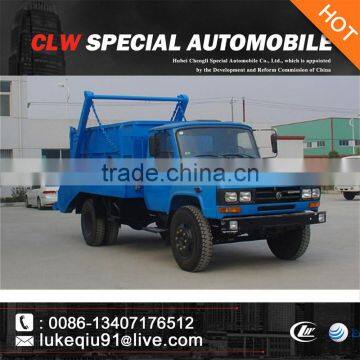

DONGFENG 140 4*2 Side Lift Swing Arm Garbage Truck 6CBM
Side Lift Swing Arm Garbage Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
,
Product note:
Side Lift Swing Arm Garbage Truck is constructed 12# low alloy steel and 4mm carbon steel, the body is fitted on the chassis by the truck beam. It is widely used in garbage disposal in street , school and other places, can be equipped with many garbage bucker, it have dump function, hydraulic operation, dump conveniently.
The features of this Side Lift Swing Arm Garbage Truck :
1.simple, efficient collection methods;
2.automatic operation;
3.environmentally friendly;
Main Technical Parameter of DONGFENG 140 4*2 Side Lift Swing Arm Garbage Truck 6CBM
Main Technical Parameter | |||
Product Name | DONGFENG Side Lift Swing Arm Garbage Truck | Actual volume(L) | 6000-8000 |
Overall Dimension(mm) | 7185×2470×3300 | Curb Weight (kg) | Approx 5750 |
Garbage bucket size (L*W*H)(mm) | 3300*1900*1500 | Wheelbase (mm) | 3950 |
F/R Suspension(mm) | 1065/2170 | Number of Axles | 2 |
Appr/Dep Angle(º) | 34/17 | Max Speed(km/h) | 90 |
Cab Allowed Persons | 3 | Cab type | Tip head, single row |
Chassis Technical Parameter | |||
Chassis Model | EQ1102FLJ5 | Chassis Manufacturer | DONGFENG Motor Co., Ltd |
Gear Box | 5 speed forward and 1 reverse | Transmission type | Manual |
Steering Type | LHD | Brake System | Air brake |
Leaf Spring No. | 9/12+9 | Number of Tires | 7 include 1 spare |
Drive Type | 4x 2 | Tire Spec. | 9.00-20 |
Engine Technical Parameter | |||
Engine Model | YC4E140-33 | Engine Brand | Guangxi Yuchai Machinery Co., Ltd |
Fuel Type | Diesel | Emission Standard | Euro2 |
Displacement ( ml ) | 4257 | Power (KW) | 105(140hp) |
Superstructure Parameter |
| ||
Material of compartment | Carbon Steel | Compartment thickness(mm) | Side 3mm ,floor 4mm |
Hydraulic system pressure | 16Mpa | swing arm turn radius | Approx 6000mm |
Swing arm maximum pivot angle | 145 | Hoisting time | 30s |
Unloading time | 50s | Control type | Electric hydraulic and manual |
Remark | 1. Equipped with side 3mm, floor 4mm carbon steel bucket | ||
Warranty | 12 months, from the date of supply | ||
Multi-faceted Show of Side Lift Swing Arm Garbage Truck :
Brief Introduction of My Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:

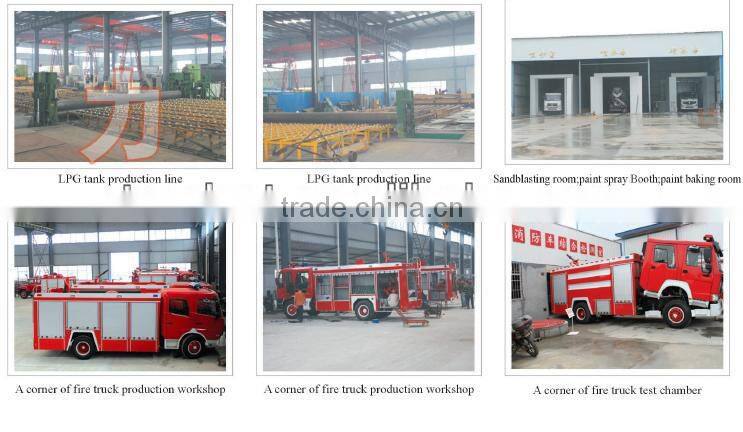

Production Equipments:

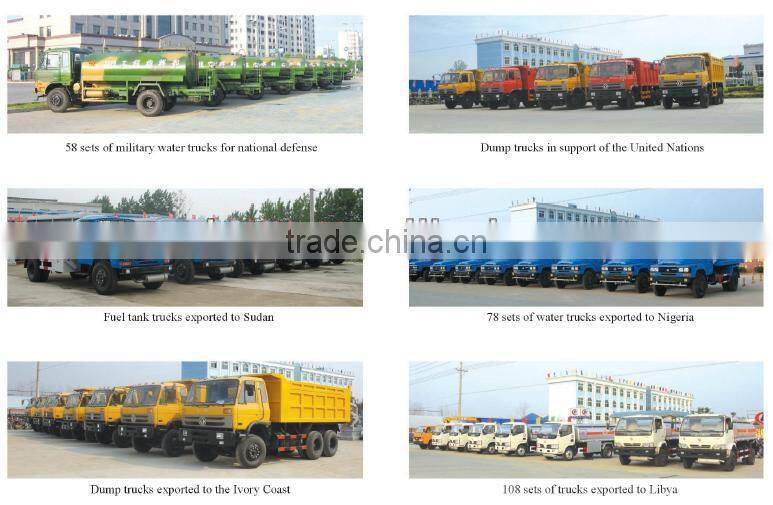

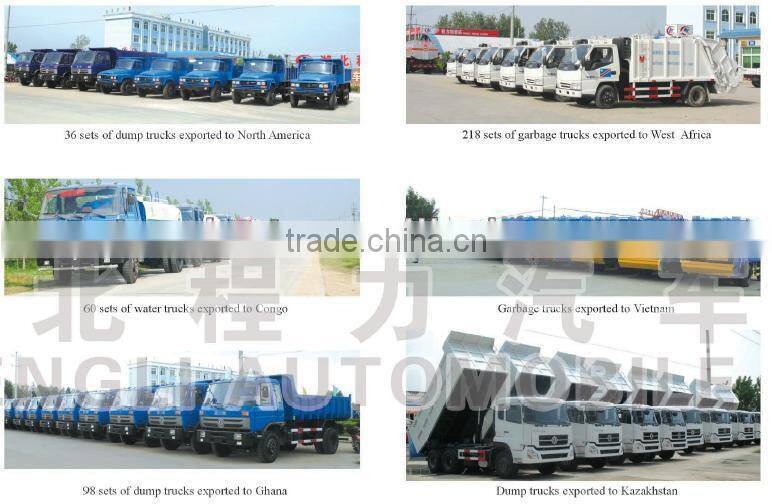

Truck Exported:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
