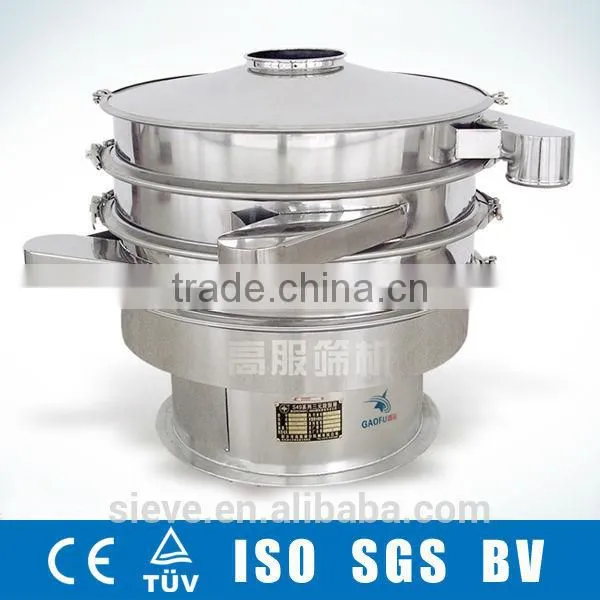

Food Grade Vibration Screen for Sieving Starch

Food Grade Vibration Screen for Sieving Starch / Rice Flour

                     --sepacial-desinged sieving machine for FOOD raw material powder.

 [Introduction]

     Gaofu S49-A series shaking vibration screen is one kind of high appreciated sieving machine for FOOD industry, it is designed for accurate screening of wet and dry raw materials. It can up to five different fractions in one-time screening process.

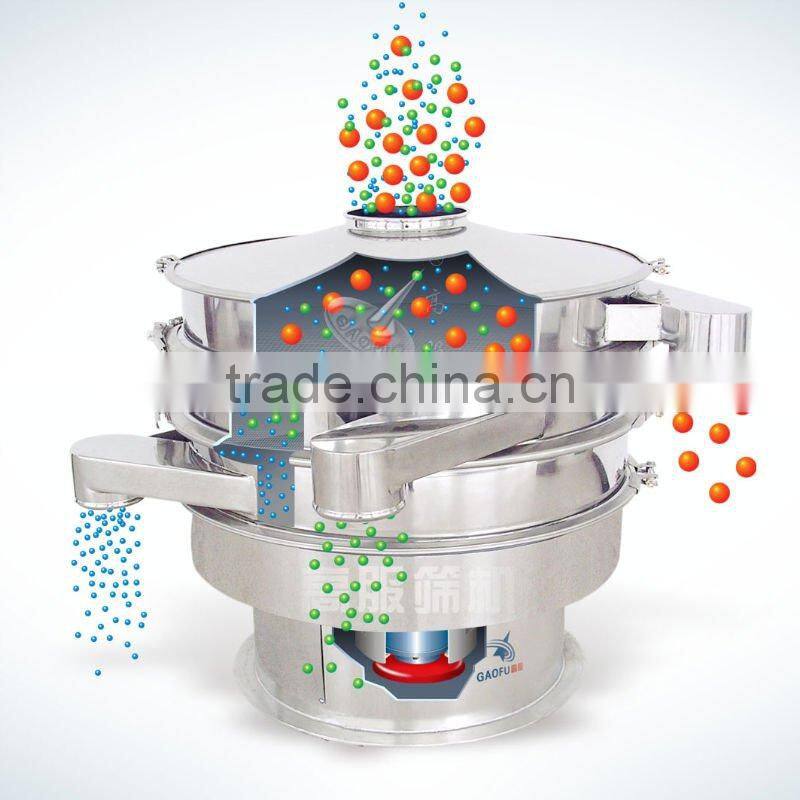

[Principle of the structure]

S49-A series shaking vibration screen  use upright motor as the source of vibration, These consist of specially designed motor which is mounted vertically at the center of the base plate of the screen.Equipped eccentricity hammer on the both sides of motor,change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.

[Features]

    a. Any powders and mucilage are suitable for screening;

    b. Easily to replace the screen, only 3-5 mins to replace the screen;

    c. Never jam the hole meshwork, no powder flying;

    d. Discharge the impurity and coarse materials automobile and operates continuously;

    e. Unique- designed screen flame type, simple operation and convenience washing, long

        duration of screen;

    f. Low noise;

    g. High screening accuracy.

[Spare parts list]

More Vibrating Screens Technical parameters

Note:

1. Each type can be 1-5 layers (But 3 lagers are suggested), and the mesh is from 5 to 500 meshes;

2. Material: Q235A / SUS 304 / 316L;

3. Voltage: 220 / 380V /415V / 440V, Frequency: 50 / 60 HZ;

4. If the specification or appearance has changed, we will not notify additionally

Spin vibration sieve three functions: classification, filtering, impurity
