Gaofu classification sieve with CE for table salt
1. Principle of the structure
S49-A series vibro-energy separators use upright motor as the source of vibration,equipped eccentricity hammer on the both sides of motor ,change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
2. Features
a. High efficiency, refined design, duration,any powders and mucilage are suitable for using.
b. Easily to replace the screen, simple operation and convenience washing.
c. Never jam the hole meshwork, no powder flying, filter size of the powder between 500 mesh and 0.028 mm.
d. Discharge the impurity and coarse materials automobile and operates continuously.
e. Unique screen flame design, long duration of screen, only 3-5 to replace the screen.
f. Small volume, move easily.
g.The highest layers of the screen are about 5 layers. But 3 lagers are suggested.
3. Technical Parameters
Model |
Effective Diameter for sieving surface(mm) |
Effective sieving area(m2) |
Sieving mesh specification |
Layers |
Power(KW) |
|
Vibration motor |
Common motor |
|||||
S49-400 |
340 |
0.0907 |
2-500 mesh |
1-5 |
0.18 |
|
S49-600 |
540 |
0.2289 |
2-500 mesh |
1-5 |
1.25- |
0.75 |
S49-800 |
730 |
0.4183 |
2-500 mesh |
1-5 |
1.55 |
1.1 |
S49-100 |
900 |
0.6359 |
2-500 mesh |
1-5 |
1.1 |
1.5 |
S49-1200 |
1100 |
0.9499 |
2-500 mesh |
1-5 |
1.1 |
1.5 |
S49-1500 |
1400 |
1.5386 |
2-500 mesh |
1-5 |
1.5 |
2.2 |
S49-1800 |
1700 |
2.2687 |
2-500 mesh |
1-5 |
4 |
3.0 |
S49-2000 |
1886 |
2.7922 |
2-500 mesh |
1-5 |
4 |
3.0 |
4. Spare parts
5. Processing
6.Gaofu company

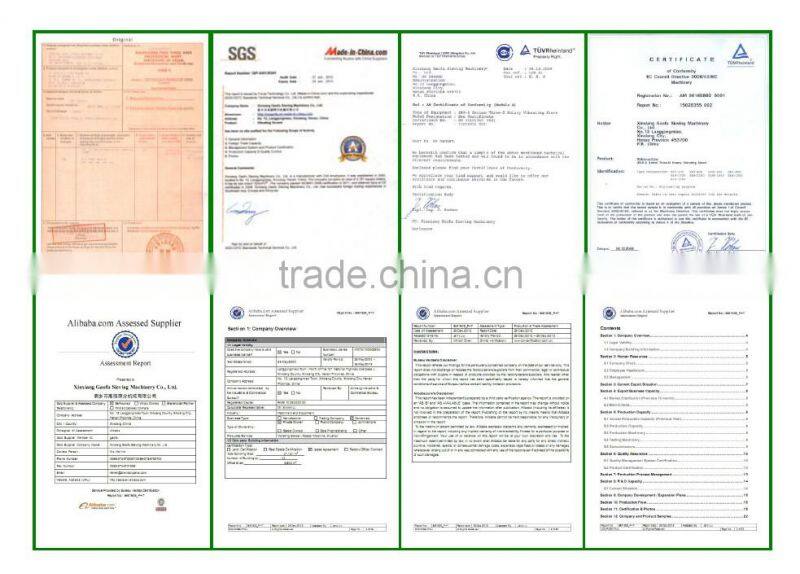

7. Our Certificate :
GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are the most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
