Description:
Working Principle

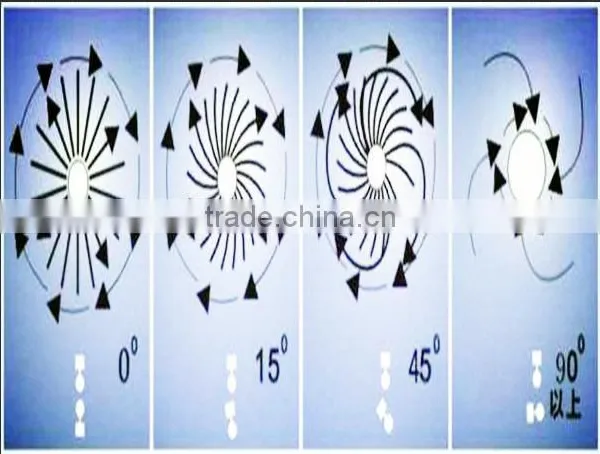

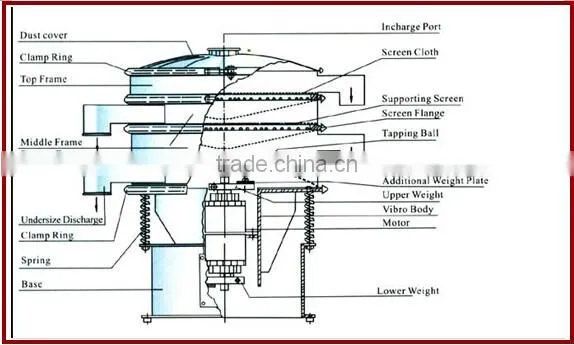

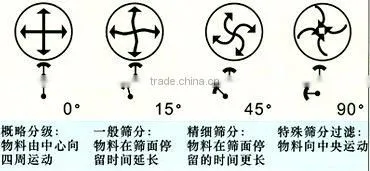

Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibrating source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieve surface. Adjusting the phase angle on the vibrating motor top and bottom can change trajectories of the materials on the screen.

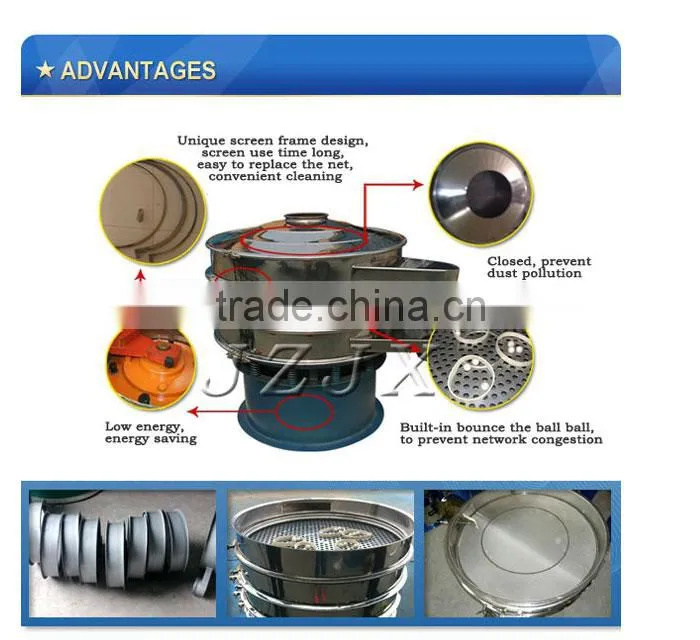

Features
1)High efficiency, refined design, duration,any powders and mucilage are suitable for using.

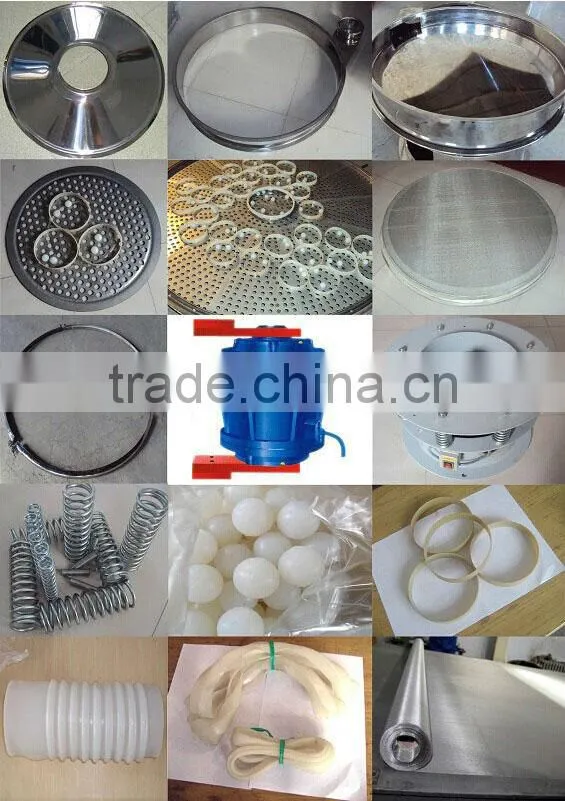

2)Easily to replace the screen, simple operation and convenience washing.
3)Never jam the hole meshwork, no powder flying, filter size of the powder between 500 mesh and 0.028 mm.
4)Discharge the impurity and coarse materials automobile and operates continuously.
5)Unique screen flame design, long duration of screen, only 3-5 to replace the screen.
6)Small volume, move easily.
7)The highest layers of the screen are about 5 layers. But 3 layers are suggested.
Food industry: sugar powder, starch, salt, rice noodles, milk powder, etc.
Metals: Metal powder, alloys, ceruse, copper powder, ore alloy powder, etc
Ceramics: Ceramic powders, kaolin clay, lime, alumina, etc.
Environment: disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon.
Coatings: Powder coatings, pigment paints, etc.
If you are interested in our machine, please contact me at any time!
