stainless steel rotary vibrating sieve for palm oil
S49 series vibrating sieve is designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation. It benefits from major advances in sieving technology providing large improvements in sieving accuracy, capacity, noise levels and upgradeability compared with traditional spring suspension separators.
Spin vibration sieve ---classification, impurity, filter
See the different options available
Industries served by the vibrating sieve include:
Food - Food ingredients, confectionery, chocolate, etc.
Chemicals - Chemical powders or liquids
Metals - Metal powders, alloys, etc.
Pharmaceuticals - Pharma powders, active powders, etc.
Ceramics - Ceramic powders, kaolin clay, etc.
Environment - Treating wastewater for clean disposal, etc.
Different angles have the different materials
Enjoy the many benefits this separator can offer you
High capacity - Real improvements are achieved over conventional round separators in terms of increased capacity
Greater accuracy - Full material flow on all 4 sieve decks gives accurate grading on all meshes
Ease of operation and lower maintenance - The design of the vibrator housing allows for a standard motor being used rather than a vibratory type, keeping maintenance costs to a minimum
Technical Parameters
|
Model
|
Effective diameter (mm) |
sieving area(m2)
|
Screen mesh size
|
Layer |
Powder(KW) |
|
Vibration motor |
Common motor |
|||||
S49-400 |
Φ340 |
0.0907 |
5-500 mesh |
1-5 |
0.18 |
-- |
S49-600 |
Φ540 |
0.2289 |
5-500 mesh |
1-5 |
0.25 |
0.75 |
S49-800 |
Φ730 |
0.4183 |
5-500 mesh |
1-5 |
0.55 |
1.1 |
S49-1000 |
Φ900 |
0.6359 |
5-500 mesh |
1-5 |
1.1 |
1.5 |
S49-1200 |
Φ1100 |
0.9490 |
5-500 mesh |
1-5 |
1.1 |
1.5 |
S49-1500 |
Φ1400 |
1.5386 |
5-500 mesh |
1-5 |
1.5 |
2.2 |
S49-1800 |
Φ1700 |
22687 |
5-500 mesh |
1-5 |
4 |
3.0 |
S49-2000 |
Φ1886 |
2.7922 |
5-500 mesh |
1-5 |
4 |
3.0 |
Note:
1. Material: SUS 304 / Q235A / 316 L.
2. Voltage: 380V /400V.
3. Voltage: 380V /400V, Frequency:50 / 60 HZ.
4. If the specification or appearance has changed, we will not notify additionally.

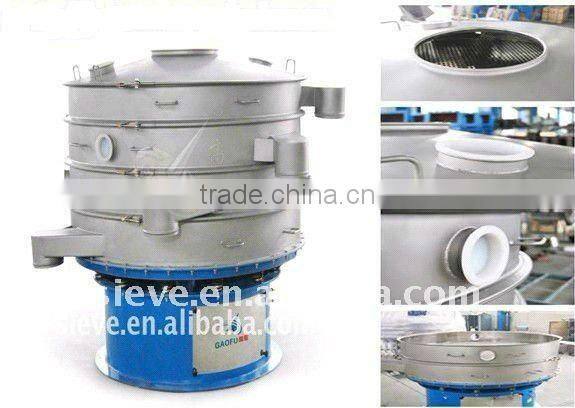

The picture of machine's part :
Remarks: The inlet and outlet can be custom fit to your installation requirements

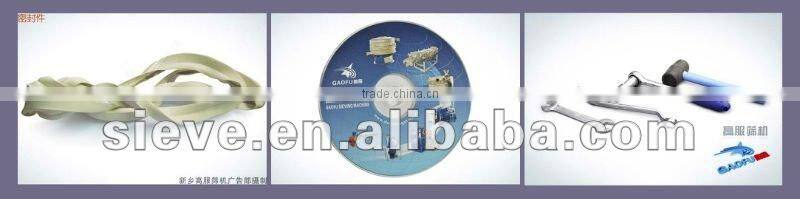

spare parts:
If you have any questions , please feel free to contact with us !
You and Gaofu Take with you and high profit .

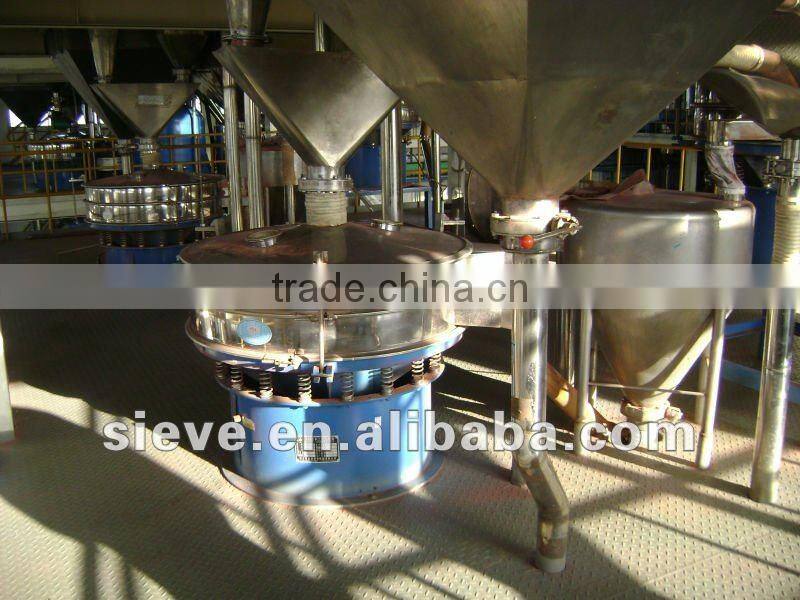

Customer site 1

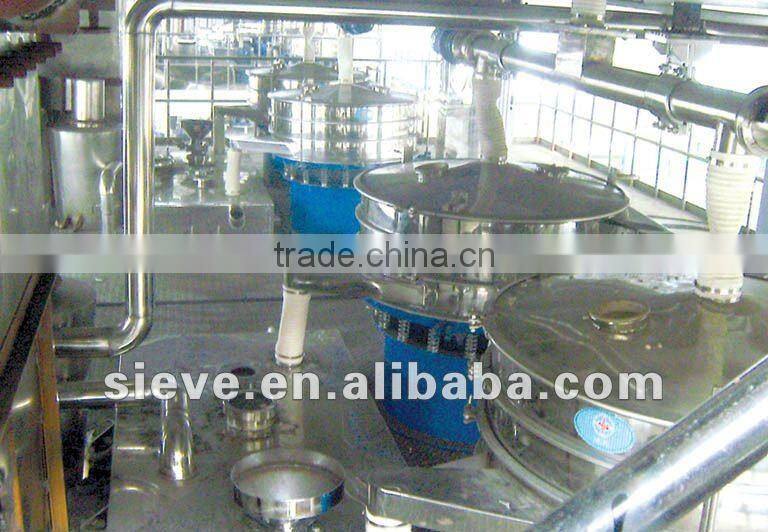

Customer site 2
ISO9001:2008

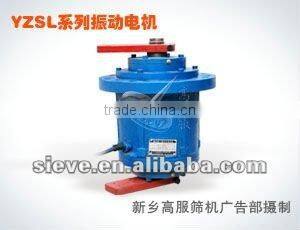

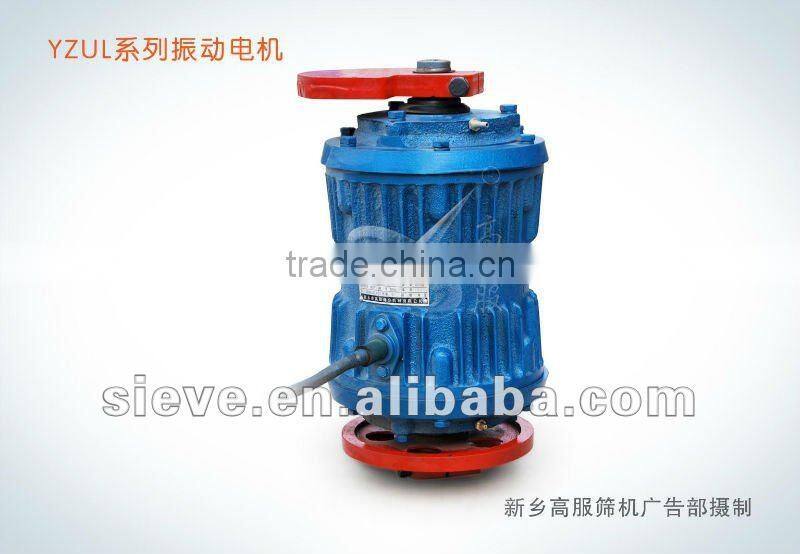

Spin vibration sieve special vibration motor
Motor working principle
Note:
All technical information and size of our products based on the real machine . The machine can be customized according to different requirements of customers
Our operation principle is mutual reciprocity and mutual benefit , Intimate service !
