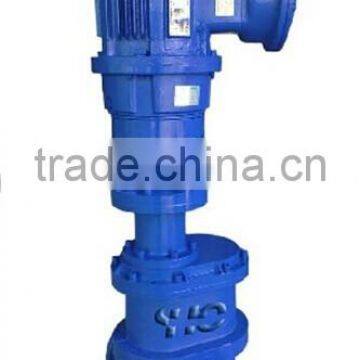

Wastewater Grinder

Operation Principle

1. Solids enter grinders through open channel;

2.Solids pass through cutters for size reduction.;

3.Solids are cut into smaller particles and no threat to downstream equipment.

Materials of Construction

Motor: Customized, multiple power options

Reducer: Planet gear reducer, good ability to against the load impact

Cutter and spacer: heat-treated alloy steel 4130 with surface harden evenly.

The hardness is not less than 45~50HRC

Shaft: heat-treated alloy steel 4140

Mechanicals Seals: Tungsten Carbide faces

Housings: Ductile cast iron ASTMA 536

Frame: Stainless steel(304,316)

Mechanical Characteristic

Ease and Flexibility of Installation

     Adapts to most existing pipelines with little or no modification

Mechanical Seals

     Pressure capability up to 6.3kg/cm2;

     No seal flush required and no packing gland to adjust;

Manhole

    Manhole diameter: 1.2m

    Wall thickness: 12mm

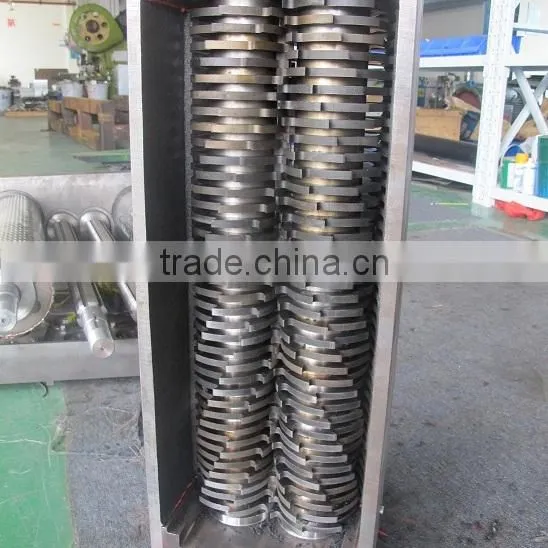

Dual Shaft Design

    Low-speed, high torque grinders handle rags, rocks, wood,clothing, plastics and other debris

   Capable of handling a wider variety of solids than single shafted machine

Cutter Options

    Customized cutters with various tooth configurations to meet special application

Control System Function

PLC Control Cabinet with liquid crystal display, real time monitoring loading

MODBUS standard field bus Communication interface and remote controllable

Time adjustment, runtime and failure records query

Automatic Reversal Function, time and times setting of reversal

Leakage, Over Capacity, Overheating, Short Out and Lack of phase protection functions

Authority setting function

Selection table
