Specifications
1.Toshiba brand CCD sensor2.Super wide chute to achieve high output and precision
3.SMC Solenoid Valve
4.LED light

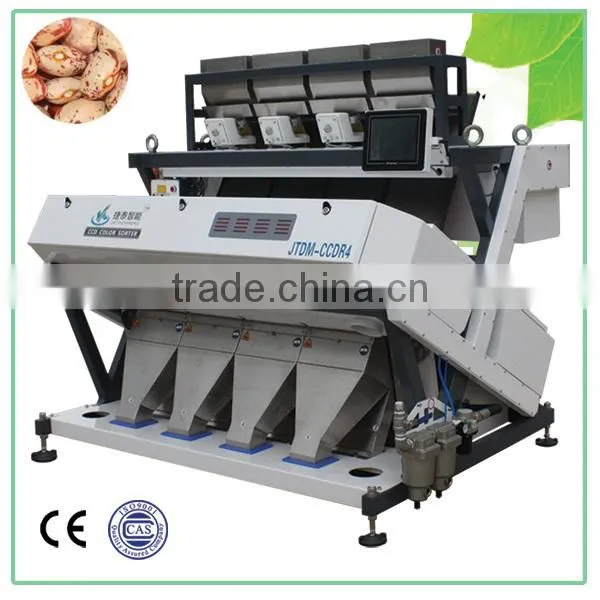

Sunflower Seeds Grain Color Sorter With 0.6Mpa Large Capacity
1. The color sorter uses 5000* 3 high performances CCD sensors with resolution up to 0.02mm2.
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting of rice.
3. The high speed DSP technology provides the sorter with fast detection and high identification rate.The special coarse cereal detection algorithm is designed.
4. Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision.
5. Overall unit adopts intelligent closed loop control.
6. The operation interface adopts industrial grade 10 inch TFT contact screen and features simple parameters setting and easy operation.
7. High speed air valve is used to ensure quick response, low power consumption and long service life.
9. Auto Alarm when the air pressure is low. Modular construction,different material images free storage,the feeding system will be cut off automatically in case of the power failure .It will be easier to maintenance
Applicable to all types of materials,rice, grain,and industrial granules etc.
Model |
JTDM-CCD3R |
JTDM-CCD4R |
JTDM-CCD5R |
JTDM-CCD6R |
Output (Ton/hr) |
4-7 |
5-11 |
7-12 |
10-15 |
Channels (big/small) |
64/192 |
64/256 |
64/320 |
64/384 |
Ejectors |
192 |
256 |
320 |
384 |
Light source |
LED light |
LED light |
LED light |
LED light |
Pixel of camera |
5000*3 |
5000*3 |
5000*3 |
5000*3 |
Color sorting accuracy |
>99.99% |
>99.99% |
>99.99% |
>99.99% |
Carryover rate |
>10:1 |
>10:1 |
>10:1 |
>10:1 |
Host power |
1.0-2.5 |
1.2-3.0 |
1.4-3.5 |
1.6-4.0 |
Air pressure |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
≥0.6Mpa |
Air consumption (L/min) |
1000-1800 |
1200-2500 |
1500-3000 |
1800-3600 |
Power supply |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
Machine weight (kg) |
900 |
1100 |
1300 |
1500 |
Package |
wooden case |
wooden case |
wooden case |
wooden case |
TAG:Color Sorting Machines, Color Sorter,CCD Sorter Machine
