Specifications
Sesame color sorter5000*3 pixel
Detecting area 0.02 square millimeter
CCD Sensor :Toshiba
Valve: SMC,JIETAI

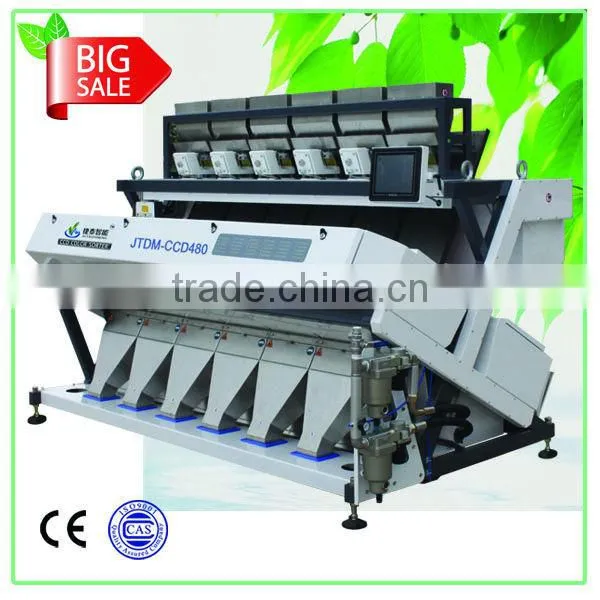

Easy Operation And Maintenance CCD Separating Machine With Double Multi Function Filters
1.Two SMC filters which is imported from Japan.The filter device can filter oil, moister and dust from the air source, so pure,dry compressed air into the spray valve.
2.The operation interface adopts the 10 inch TFT color touch screen.,it is easy to adjust parameter and operate.and many foreign language to choose.and all program is set by compute,you just operate as the instruction.
3.360 degree control to sort diverse materials,Big and small models are universal,using the triangle principle,more stable,no deformation.Triangle background board is made of three sides,and it has different light different materials.
4.High quality and high speed solenoid vale,ultra high precision,leading in industry.Core technology is from Japan which is more precision and has a longer life time.
Model |
JTDM-CCD160 |
JTDM-CCD240 |
JTDM-CCD320 |
JTDM-CCD400 |
JTDM-CCD480 |
Throughput(T/H) |
1.5~3 |
3~8 |
4~11 |
6~13 |
7~15 |
Channels |
160 |
240 |
320 |
400 |
480 |
Chutes |
2 |
3 |
4 |
5 |
6 |
Light Source |
Led Light |
Led Light |
Led Light |
Led Light |
Led Light |
Pixel of Camera |
2048 |
2048 |
2048 |
2048 |
2048 |
Color Sorting Accuracy |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
Carryover rate |
≥10:1 |
≥10:1 |
≥10:1 |
≥10:1 |
≥10:1 |
Power(KW) |
0.8-2 |
1.0~2.5 |
1.2~3.0 |
1.4~3.5 |
1.6~4.0 |
Air pressure(Mpa) |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
≥0.6 |
Voltage(v) |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
220V/50HZ |
Air consumption (L/min) |
800-1300 |
1000-1800 |
1200-2500 |
1500-3000 |
1800-3600 |
Weight(kg) |
700 |
900 |
1100 |
1300 |
1500 |
Diamension(mm)L*W*H |
1674* 1520*1800 |
1674* 1520*1800 |
1983*1520*1800 |
2319*1520*1800 |
2655*1520*1800 |
Package |
wooden case |
wooden case |
wooden case |
wooden case |
wooden case |
Note : The above impurities is around 2% . The Specific parameters will be different based on the raw material and impurities
